Overview

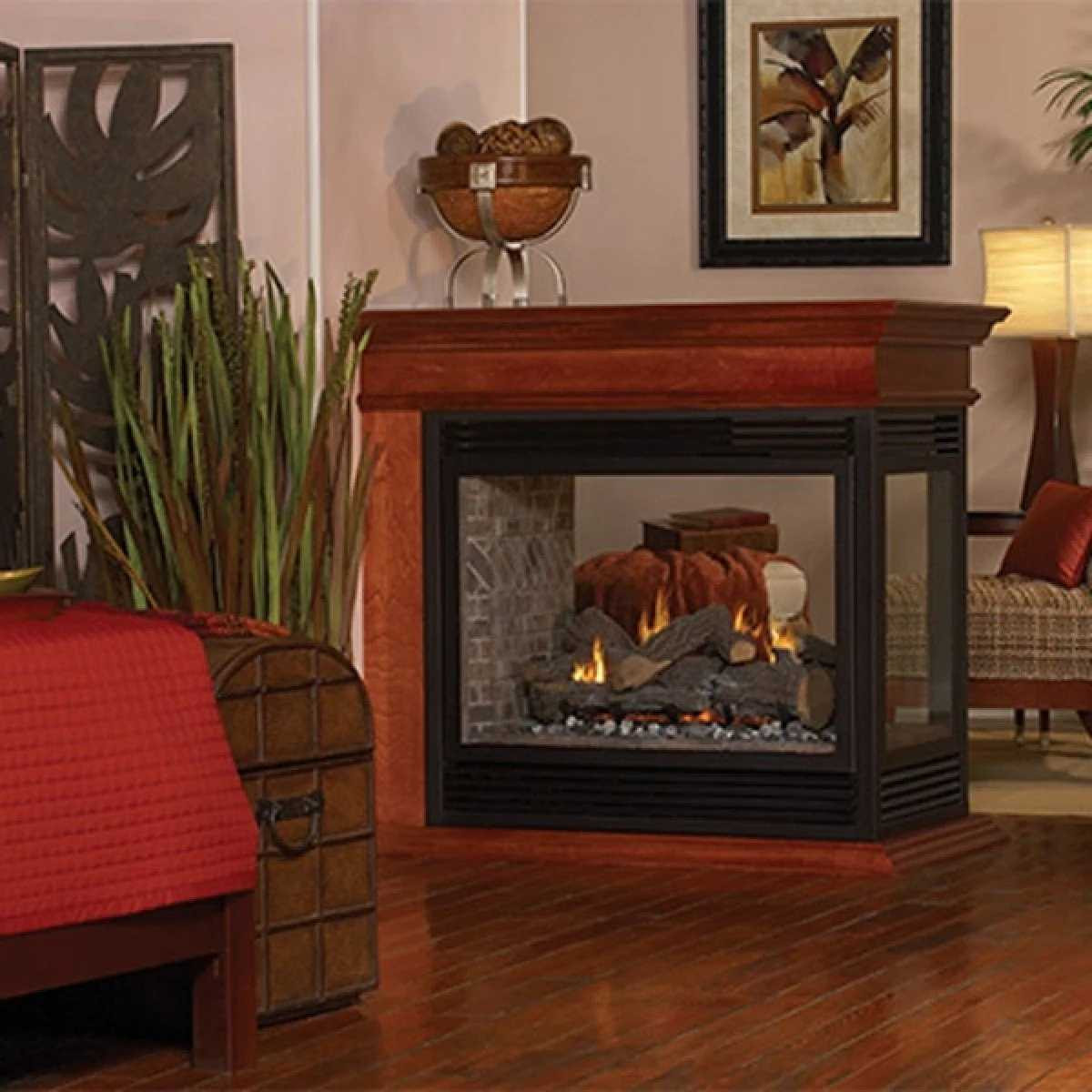

Empire Hearth 36" Tahoe Premium Multi-Sided Direct-Vent Fireplace DVP36
The Tahoe Premium multi-sided fireplaces are an alluring solution for your multi-sided hearth project.
The units feature a built-in Slope Glaze Vista burner, large tempered glass viewing windows, Banded Brick liner, ceramic fiber floor liner, dimmer controlled lighting, and glowing embers.
- BTU: Propane - 28,000 BTU (Min) / 35,000 BTU (Max) - 24,000 BTU (Min) / 35,000 BTU (Max)
Features
- Tempered Glass 22 x 32 1/2 (Peninsula end 22 x 17 1/2)
- Venting: 4 x 6 5/8 (Refer to manual for venting requirements)
- Framing DVP36PP - 41 1/2 H x 40 W x 23 D (see manual before framing)
- Framing DVP36SP - 41 1/2 H x 39 W x 23 D (see manual before framing)
Includes:
- Dimmer Controlled Accent Light
- Banded Brick Liner
Requires:
- Two Fireplace Barriers for See-Through
- Three Fireplace Barriers for Peninsula
- Rock Creek Log Set
Specifications
- Fuel Type: Gas
- Unit Type: Indoor
- Unit Size: 36" Peninsula
- Viewing Area: 25 1/16" x 36"
- Style: Square - Traditional - Zero-Clearance
- Height: 34-3/4 inches without standoffs
- Width: 39 inches at the face
- Depth: 24 inches
- BTU: Propane - 28,000 BTU (Min) / 35,000 BTU (Max) - 24,000 BTU (Min) / 35,000 BTU (Max)
- Venting Style: Direct Vent
- Vent Location: Top Vent
- Venting Size: 4" x 6 5/8"
Downloads
- Madison Clean-Face Direct-Vent Multi-Sided Brochure
- DVCP36(PP/SP) | Madison Premium Peninsula & See-Through Fireplaces
- DVCP36(PP/SP)K | Madison Premium Peninsula & See-Through Fireplaces
- DVCP36(PP/SP)K | Madison Premium Peninsula & See-Through Fireplaces | French
- DVP(26/36)(PP/SP) | Madison Premium Peninsula & See-Through Fireplace
Exact-model requirements and installation reference
The DVP36SP/PP family has a maximum input of 35,000 BTU/h for either fuel. Millivolt minimum input is 24,000 BTU/h natural gas or 28,000 BTU/h propane. Appliance measurements are not framing dimensions; use the exact see-through or peninsula framing drawing before construction.
A protective barrier is required for operation and is sold separately. The manual lists DVFB36SPBL for DVP36SP/PP and DVFB22TBL for the peninsula end; follow the barrier instructions for the complete model-specific package. Optional remotes do not replace required protective equipment.
DVP36SP/PP manufacturer installation manual, pages 8. Installation and service must follow the complete manufacturer instructions and applicable codes.
