Empire Hearth 36" Tahoe Luxury Direct Vent Traditional Fireplace DVX36FP

The Madison Clean-Face Deluxe models boast an elegant Contour tube-style burner, meticulously crafted to harmonize with the exquisite hand-painted ceramic fiber log set. This design creates a mesmerizing natural dancing flame that captivates onlookers.
These fireplaces are equipped with a clever air distribution channel that discreetly conceals the louvers, preserving a sleek aesthetic while still enabling the operation of the optional blower. At the heart of the design lies a large, tempered glass window, offering a crystal-clear view of the log set, free from any obstructions. For a personal touch, you can select an optional liner to tailor the fireplace to your unique taste.
The Madison Clean-Face Deluxe models demand a venting requirement of 17-3/4 and utilize 4 x 6-5/8 venting dimensions, making them perfectly suited for installations where wall-cavity space is at a premium.
Expertly designed for in-wall installation, the Madison Direct-Vent fireplace can be elegantly finished with tile or other non-combustible materials. This finishing touch flawlessly conceals the outer edge of the fireplace, achieving a truly integrated, built-in look.
An available lighting kit accentuates the intricate craftsmanship of the log set and the brick liner, even when the fire is unlit, casting a gentle glow that highlights their details. Enhance the warmth and comfort of your space with the optional variable-speed blower, which includes dimmer controls for both the light and blower, allowing for customized ambiance.
For those seeking advanced functionality, the Clean-Face Premium models are available with both Millivolt and Intermittent Pilot options, catering to various preferences and needs.

• BTU input: Natural gas 24,500–35,000 BTU/h; propane 21,000–30,000 BTU/h.

Features

• Ceramic Glass: 22 x 32 1/2
• Top Venting: 4 x 6 5/8 (Refer to manual for venting requirements)
• Framing 40 7/8 H x 39 3/8 W x 19 7/8 D (see manual before framing)

Includes:

•  Blower and Dimmer Controlled Accent Light
• Log Set

Requires:

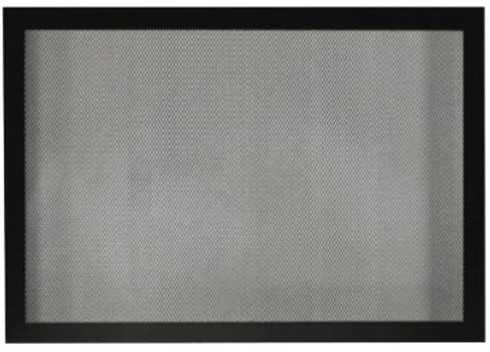

• Fireplace Barrier or Door Set and Frame with Barrier

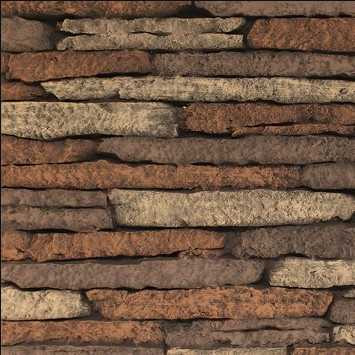

• Liner

Specifications

• Fuel Type: Gas
• Unit Type: Indoor
• Unit Size: 36"
• Viewing Area: 25" x 36"
• Style: Square - Traditional - Zero-Clearance
• Height without standoffs: 34-3/4 inches; framing height 40-7/8 inches.
• Width: 39-3/8 inches; framing width 39-3/8 inches.
• Depth and minimum framing depth: 19-7/8 inches.
• BTU input: Natural gas 24,500–35,000 BTU/h; propane 21,000–30,000 BTU/h.
• Venting Style: Direct Vent
• Vent Location: Top Vent
• Venting Size: 4" x 6 5/8"

Manufacturer installation and operating instructions

DVX36FP installation instructions and owner’s manual — 39357-3-1219

Use the exact fuel and control model on the appliance rating plate. This manual provides the model-specific installation, venting, barrier-screen, gas-conversion, operation and service instructions. Installation must follow the manufacturer instructions and applicable codes.
