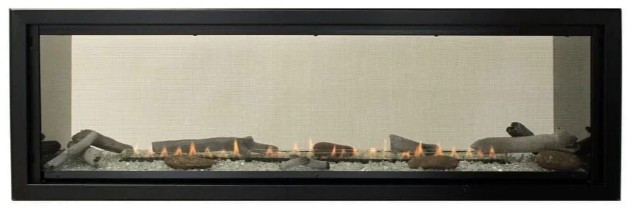

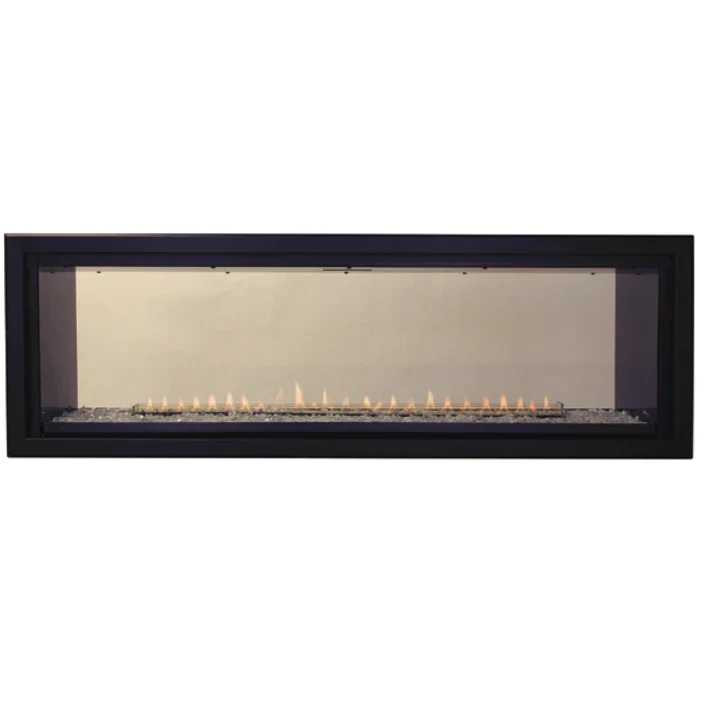

Empire Boulevard VFLB48SP90 is a 48-inch see-through linear vent-free gas fireplace with a concealed burner and contemporary flame presentation. Select the correct factory natural-gas or propane configuration; field fuel conversion is prohibited.
Designed for an in-wall installation, including elevated placement where the manual’s framing and clearances are met. Decorative fronts and interior liners are optional finishing choices.
The factory burner and protective screens are part of the fireplace. Keep the required screens and glass deflectors installed as directed by the exact model manual.
Provide an approved gas connection, adequate combustion and ventilation air, required noncombustible finishing materials and the electrical supply specified for the selected control and lighting package. No chimney or exhaust vent is used. This is supplemental indoor heat, not primary whole-house heat.
The manual lists decorative media as accessories and gives a burner-cover area of 2.75 square feet. A box of crushed glass covers one square foot; colors may be mixed and droplets may be mixed with crushed glass. Never place media on or next to the burner or above the burner-cover lip.
Optional decorative fronts: DF481VBL or DF482VBL. LS60SHF is the listed 22-piece log set. LK5 is an optional 120-volt lighting kit requiring its specified switch or rheostat. Use the exact model’s listed reflective or stainless liner and compatible control accessories.
Two decorative fronts may be desired for the two openings, but they are optional; the manual does not require two fronts as a base fireplace purchase.
| Model family | VFLB48SP90 |
|---|---|
| Product type | Linear gas fireplace |
| Configuration | See-through |
| Location | Indoor |
| Fuel | Factory natural gas or propane; not field-convertible |
| Venting classification | Vent-free |
| Ignition | Intermittent pilot, 90 series |
| Natural gas input | 25,000–36,000 BTU/h |
| Propane input | 28,000–36,000 BTU/h |
| Face width × height | 54-3/16 × 22-1/2 inches; excludes nailing flanges and standoffs |
| Firebox depth | 11-3/4 inches |
| Firebox opening width × height | 50-1/16 × 14-1/8 inches |
| Screen opening width × height | 47-7/8 × 11-7/8 inches |
| Overall height to header | 41-1/2 inches |
Face and screen dimensions are not framing dimensions. Use the exact manual’s clean-face or flush-face detail, wall-finishing thickness, mantel diagram and service clearances. Decorative fronts need the specified finish offset. Have installation and service performed by qualified personnel in accordance with the manufacturer documentation and applicable codes.
Do not install these models in bedrooms or bathrooms. Maintain adequate combustion and ventilation air and keep fans from blowing into the flame. Do not place decorative material on or next to the burner; follow the placement, cleaning and annual inspection instructions.
Request a return within 30 calendar days after delivery for eligible new, unused, unassembled and uninstalled items in original packaging. Written authorization is required. Read the Returns Policy for conditions, fees and exclusions.
Most in-stock items are released for shipment within 1–2 business days after payment and order review. Carrier transit is additional. Parcel transit commonly takes 3–7 business days; freight commonly takes 5–10 business days after shipment. Special-order and backordered items may take longer. Shipping details, exclusions and damage reporting.
