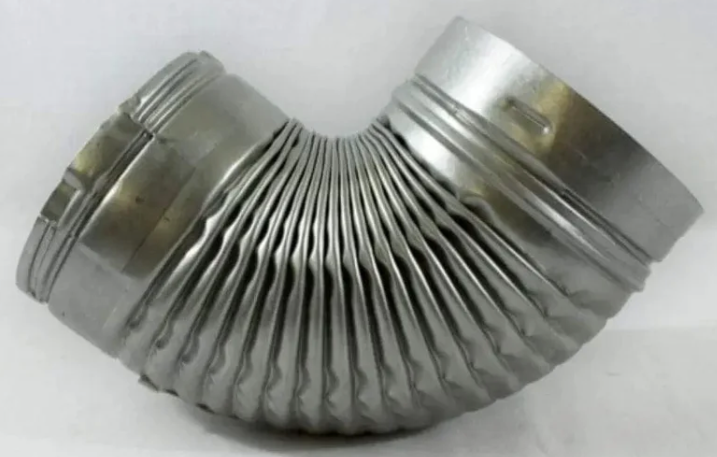

SV4.5E90 is the 90-degree Secure Vent elbow listed for the 4-1/2-inch inner / 7-1/2-inch outer direct-vent system.
The elbow changes the vent direction within an approved route. The number and arrangement of elbows affect the permitted horizontal and vertical run. Use the exact fireplace’s venting tables rather than assuming an elbow can be added without changing the allowed route. Follow the manual’s clockwise alignment instructions so previously connected twist-lock joints remain engaged.
For the DRT2000-E family, a rigid 90-degree elbow directly off the top of the fireplace requires the specified elbow/wall heat shield. Follow its installation detail; the elbow alone is not the complete top-vent package.
The exact part is listed for Superior DRT2035-E, DRT2040-E and DRT2045-E fireplaces. Other appliances must explicitly list this part or system in their own documentation; appearance or similar dimensions do not establish compatibility. Use only approved system components.
A complete vent system is required for the fireplace, but this individual component and its quantity depend on the selected route. For these fireplaces, horizontal or inclined vent components require 3 inches clearance above and 1 inch at sides and bottom. Follow all applicable vertical-route, termination, wall and roof clearances in the manual. Do not infer that every vent accessory is mandatory for every installation.
Superior DRT2000-E installation and operation manual, Rev C February 2025: approved vent systems, installation diagrams and exact accessory tables. Installation must follow the appliance and component instructions and applicable codes.
Request a return within 30 calendar days after delivery for eligible new, unused, unassembled and uninstalled items in original packaging. Written authorization is required. Read the Returns Policy for conditions, fees and exclusions.
Most in-stock items are released for shipment within 1–2 business days after payment and order review. Carrier transit is additional. Parcel transit commonly takes 3–7 business days; freight commonly takes 5–10 business days after shipment. Special-order and backordered items may take longer. Shipping details, exclusions and damage reporting.
