The Napoleon TLVX50LBN Tall Bay Luxuria is an indoor, built-in natural gas fireplace with electronic ignition and a three-sided bay configuration. Its Luminous Log system combines a separately selected model-specific log burner kit with a modulating electric ember bed. Corner and one-sided installation arrangements require the applicable manufacturer conversion and finishing instructions. The image shows a configured appliance with separately sold logs.

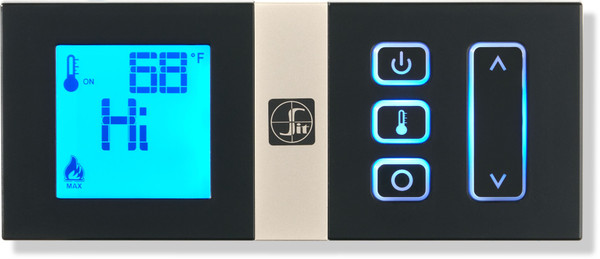

ProFlame II remote control and eFIRE control are included. W660-0160 is the optional wall-mount control, offered under Controls.

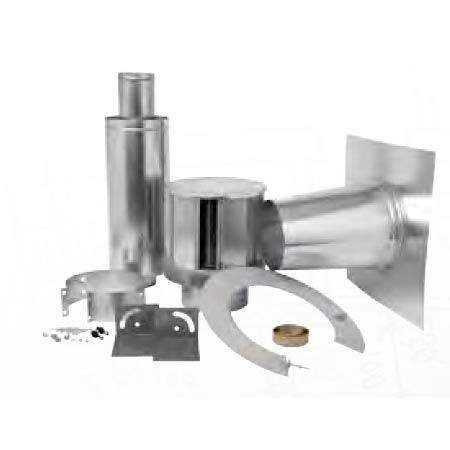

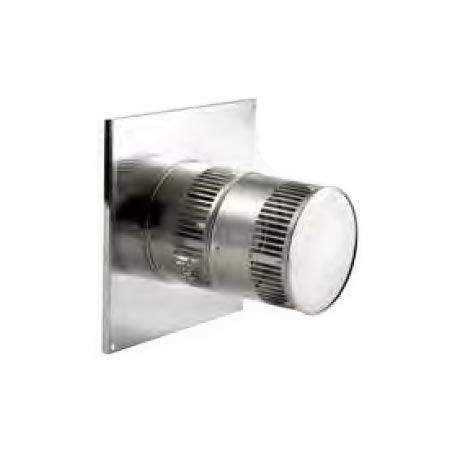

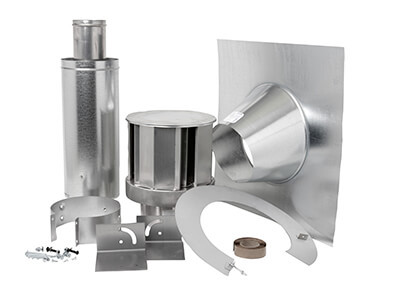

A complete approved 5-inch exhaust / 8-inch air intake direct-vent system is required for installation and sold separately. Venting choices remain optional for ordering. Terminations are route alternatives, not items to buy all together; add the proper vent lengths and route-specific installation parts. Follow the exact appliance manual and installer-approved route. A terminal or single pipe kit alone is not a complete system. This appliance is top vent. Round-wall and Silhouette terminations are the source-listed horizontal options. These flex choices are for the natural-gas model; a propane conversion requires approved rigid or power venting.
Base natural gas appliance, electronic ignition and battery-backup control system, remote and eFIRE controller, top accent lighting, reflective panels, stainless steel flex connector, firestop/vent shield and the listed Dynamic Heat Control equipment. The required Luminous log burner kit, installation-specific vent system and optional finishing kits are separate purchases.

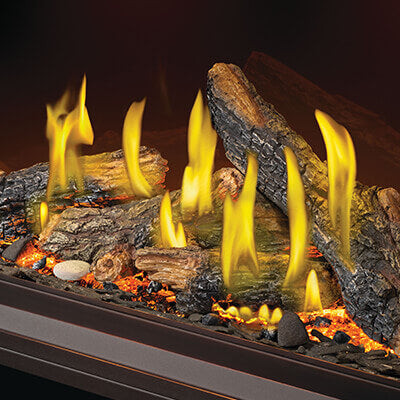

Choose one exact-model Luminous kit: BLKTLV50L birch, DLKTLV50L driftwood or OLKTLV50L oak. These L-suffix kits are distinct from standard non-L log kits. Install the selected kit according to its supplied placement leaflet and manual section 11.5. A complete approved 5-inch exhaust / 8-inch combustion-air direct-vent system and approved termination, natural gas supply and electrical connection are also required.
The TLVX-CK corner installation kit, PRP50LK reflective ledge kit, TLVX-BK blower and W660-0160 wall control are listed optional accessories. Ducted Heat Management and Dynamic Heat Control Plus are optional systems with their own model-specific hardware and installation rules. Do not combine the Dynamic Heat Control Linear and Ducted Heat Management systems contrary to the manufacturer instructions. Propane conversion requires the certified W175-0862 kit and rigid or approved power venting. This listing is for the natural gas base model.
| Brand / series | Napoleon Tall Bay Luxuria |
|---|---|
| SKU / MPN | TLVX50LBN |
| Fuel | Natural gas |
| Location / installation | Indoor, built-in |
| Base configuration | Three-sided bay |
| Ignition | Electronic with battery backup |
| Maximum input | 36,000 BTU/hr |
| Venting | Top direct vent, 5-inch exhaust / 8-inch air intake |
| Overall width | 56 1/8 inches |
| Height including upper standoffs | 51 13/16 inches |
| Body height | 46 inches |
| Overall depth | 20 1/4 inches |
| Shipping weight | 525 lb |
| Certification | ANSI Z21.50 / CSA 2.22 vented decorative gas appliance |
Qualified installation must follow manual W415-10008679 and applicable codes. Appliance dimensions are not framing dimensions: use the framing drawing for the selected bay, corner or one-sided arrangement and heat-management method. The appliance is not load-bearing. Maintain the required enclosure ventilation and keep the Dynamic Heat Control outlet unobstructed. Use an approved continuous exhaust and air-intake connection; do not mix incompatible vent systems. Position logs exactly as shown, keeping burner ports and pilot passages clear. Never burn wood or unapproved material. Shut off gas and electricity and allow the appliance to cool before servicing. Furniture and combustible objects must respect the manual's clearances.
Napoleon President's Lifetime Limited Warranty applies under its installation, ownership and maintenance conditions. Covered lifetime parts receive repair or replacement during the first ten years, with the stated reduced-price replacement terms thereafter. Electrical and wearable parts and eligible warranty labor have first-year coverage. Refer to the owner's manual for covered components, exclusions and claim requirements.
Request a return within 30 calendar days after delivery for eligible new, unused, unassembled and uninstalled items in original packaging. Written authorization is required. Read the Returns Policy for conditions, fees and exclusions.
Most in-stock items are released for shipment within 1–2 business days after payment and order review. Carrier transit is additional. Parcel transit commonly takes 3–7 business days; freight commonly takes 5–10 business days after shipment. Special-order and backordered items may take longer. Shipping details, exclusions and damage reporting.
