Product Overview

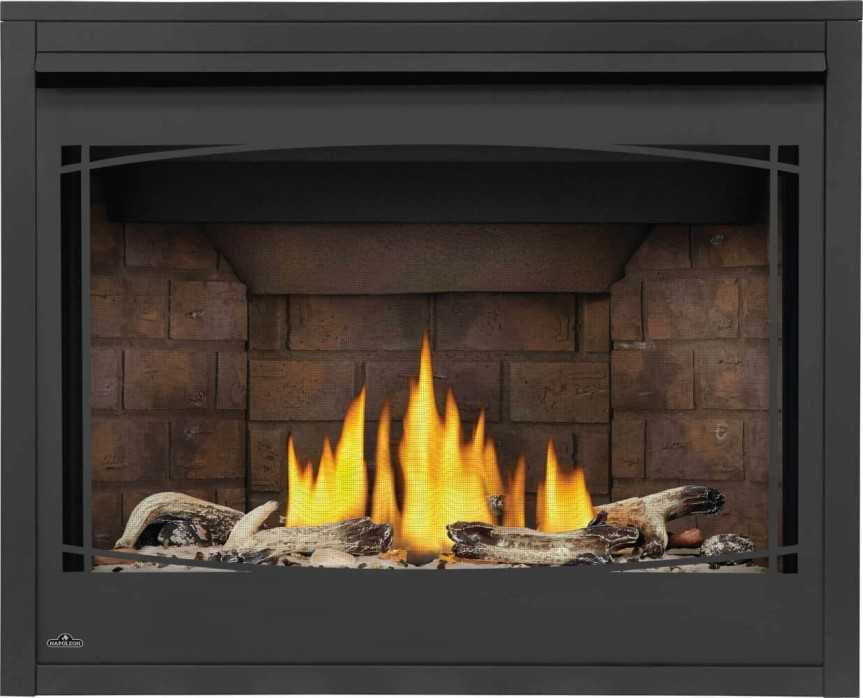

Napoleon Ascent X 42" Direct Vent Gas Fireplace BX42 is identified by model/SKU BX42NTRE. Key product details include Fuel: Natural Gas / Propane (select fuel model); Venting: Direct Vent; Size: 40-49; Type: Single Sided; Style: Traditional / Clean-Face.
Memorable moments are built by a fireplace. Including the Ascent™ X 42 gas fireplace in any space will ensure memories that last a lifetime. Gorgeously hand-painted premium split oak logs feature a glowing ember bed and are the most realistic in the industry. Enjoy the fire to its fullest thanks to a full-width firebox and clean-faced design. The included premium safety barrier keeps your family safe while ensuring the view of the glorious flames is never obstructed. Make the Ascent™ X 42 as unique as your family with designer options including fronts, trims, decorative backer panels, the beach fire, shore fire and miner rocks enhancement kits. The included blower, NIGHT LIGHT™ and remote make use and enjoyment easy as can be. You can also operate this fireplace from the comfort of your favorite spot using your mobile devices with the convenient eFire remote app.
Features

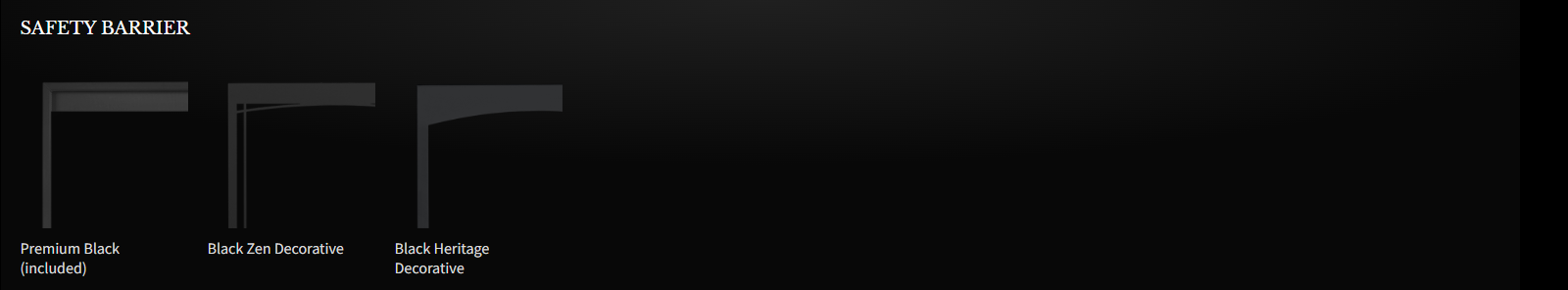

- Premium Safety Barrier
- Heat Radiating Ceramic Glass
- Pan Style Burner
- Flame / Heat Adjustment
- Flex or Rigid Venting
- Blower Included
- Remote Included
- NIGHT LIGHT™ Included

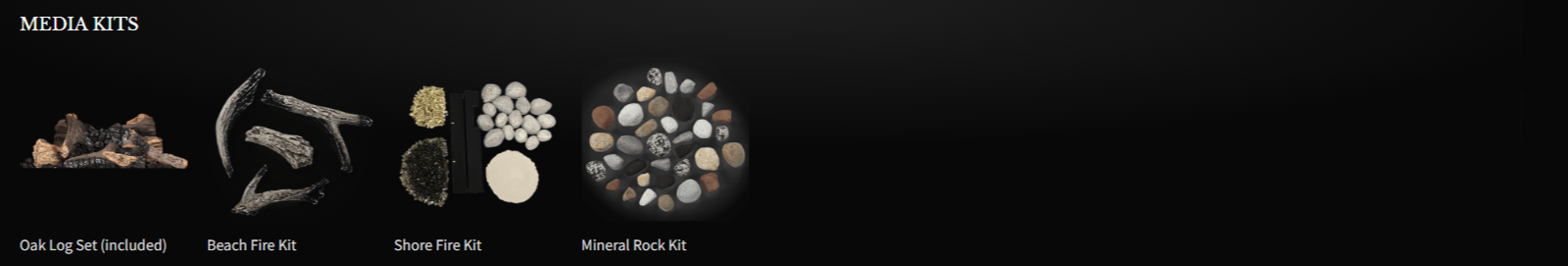

- Oak Log Set Included
Specifications
- Heat Output: 30,000 BTU's
- Viewing Area: 34.50 x 20.25 in
- Framing Width: 42.50 in
- Framing and enclosure height: Installation-dependent; use the exact top-vent or rear-vent enclosure drawing in manual section 3.2. The top-vent enclosure requires a minimum height of 52.625 in
- Framing Depth: 18.5625 in minimum
- Unit Width: 42 in
- Unit Height: 34.625 in
- Unit Depth: 18.3125 in
- Vent Size: 5"/8"
- Warranty: President's Limited Lifetime Warranty




Manuals
- Brochure
- Manual
- Installation Manual
- Current Installation Specifications
- Support Documents - For Professionals
Controls
The F60 thermostatic on/off remote with digital screen is included with the BX42 fireplace. The F60 choice in this group is for a separately purchased replacement only; no extra remote purchase is needed for the standard fireplace package. W660-0081 is an optional wall-mount digital thermostat. Napoleon also lists EFCN-PF0 for natural gas and EFCP-PF0 for propane as optional eFIRE Bluetooth controllers for PF0 controls; choose the controller matching the fireplace fuel.
Venting
A complete approved 5-inch inner / 8-inch outer direct-vent system is required for installation and sold separately. The venting selector is optional for ordering and is listed after other accessories. Choose components for your installer-approved route: horizontal kits, individual wall or roof terminations, flex lengths, and installation accessories are alternatives or route-dependent parts, not items to purchase all together. Roof terminals need the appropriate vent lengths; a single terminal or accessory is not a complete system. Do not mix vent sizes. For the BX42 power-vent configuration, pair the GPV terminal with the PVA-58ASCENT adapter kit. The BX42 manual specifies top-vent use for power venting. The adapter includes a 5/8-inch to 4/7-inch reducer; do not assume the standard 5/8-inch natural-draft components above form a complete power-vent system. Follow the GPV, adapter and appliance instructions for vent routing and electrical connections. The terminal and adapter are separate items and both are needed for this power-vent configuration.
