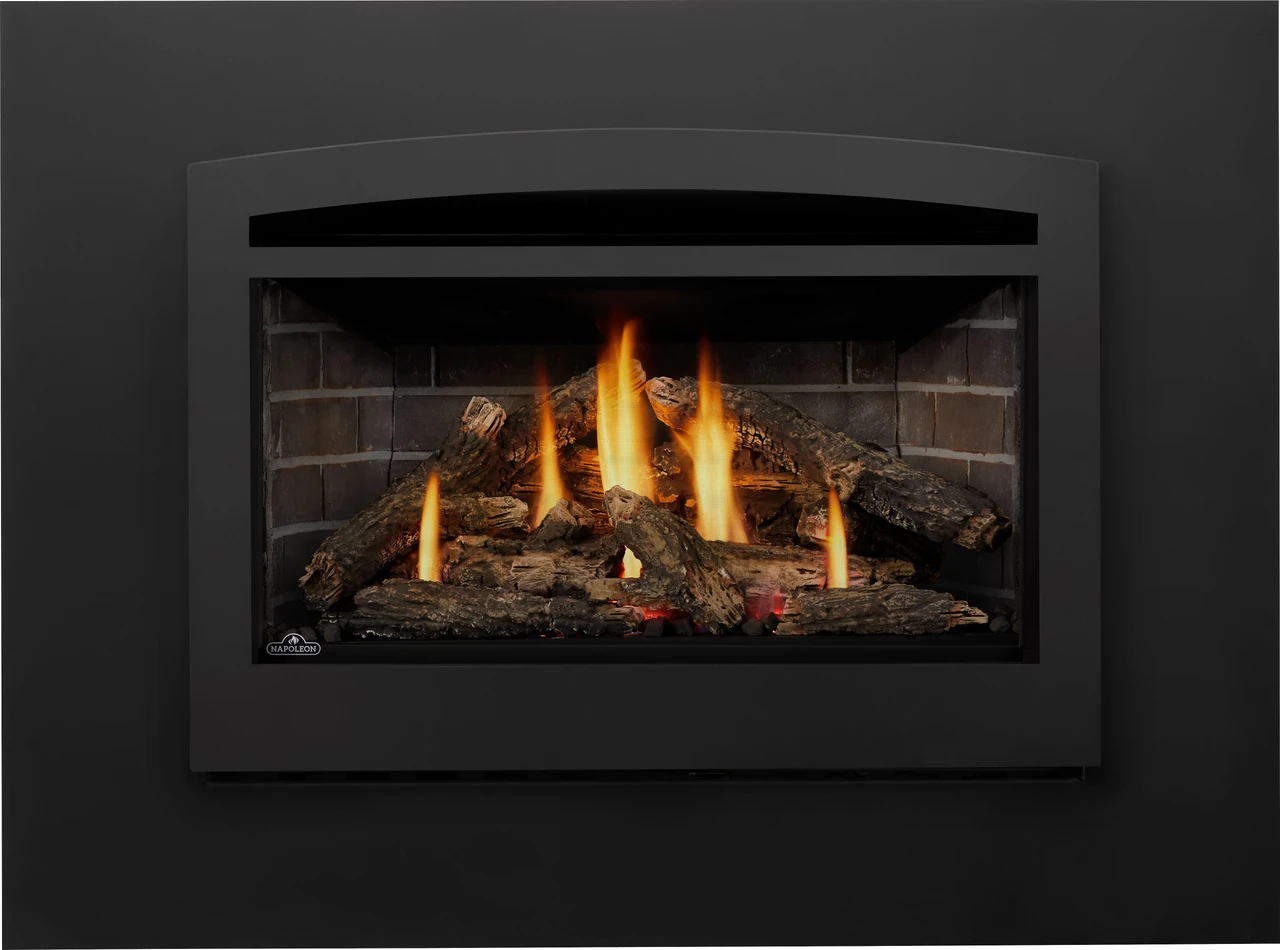

The Napoleon RD3N Rosedale 3 is an indoor natural gas insert designed to update a compatible existing fireplace opening. It combines traditional log-flame presentation with a compact body, heat-radiating ceramic glass and an included thermostatic remote. This is the base insert: select the required log set, compatible backerplate and faceplate separately. The image shows a finished configuration with optional decorative panels.
This RD3N is natural gas with 7-day millivolt ignition. The F60 thermostatic remote and standard safety screen are included. Select a compatible log kit, backerplate and faceplate. The offered SBK4F3RD and SABKF3RD faces match the 3-sided BK3B3RD backerplate. The RD3BK blower is optional. Use an approved pair of 3-inch liners and the matching insert termination/adaptor components specified in the exact manual. The listed vent products are route choices; select all required installation-specific components. Venting remains optional for ordering.
RD3N natural gas base insert, ceramic glass, safety screen and F60 remote-control equipment. A standard blower is optional on RD3; it is not included merely because the related RD2 lists one as standard.
Select one BLKRD3 birch or OLKRD3 oak log kit. Select an approved backerplate and matching faceplate for the fireplace opening. The pricebook lists BK3B3RD, BK4B3RD and TBKOF3RD backerplate alternatives, and SBK4F3RD straight or SABKF3RD arched faceplates; confirm the exact paired arrangement in the installation instructions. A complete approved direct-vent insert liner system using the specified 3-inch liners and termination is required. The appliance must be fitted to an approved existing cavity with a suitable gas connection.
Optional interiors include BIGRD3 black glass, PRPRD3 reflective porcelain, DBPRD3NS Newport brick and DBPRD3WS Westminster brick. RD3BK is the optional standard heat-circulating blower. RD3RISE is an optional adjustable riser. Propane conversion requires certified W175-0850 equipment and qualified installation; this listing is natural gas. A hybrid blower is discussed in the brochure, but its availability and exact ordering configuration are not included in this base listing.
| Brand / series | Napoleon Rosedale 3 |
|---|---|
| SKU / MPN | RD3N |
| Fuel / location | Natural gas / indoor |
| Product type | Direct-vent gas fireplace insert |
| Ignition | Seven-day millivolt |
| Maximum gas input | 25,000 BTU/hr |
| Overall body dimensions (W × H × D) | 29 7/16 × 20 5/16 × 15 7/16 inches |
| Viewing area (W × H) | 25 × 12 13/16 inches |
| Venting | Direct-vent insert system with specified 3-inch liners |
| Shipping weight | 88.30 lb |
Have a qualified installer verify the existing cavity, chimney, liner route, hearth, mantel and clearances against the exact installation manual. Body dimensions are not minimum cavity or framing dimensions. Do not connect the insert to a flue serving another solid-fuel appliance. Install and retain the safety barrier; the glass and surrounding surfaces remain hot after operation. Use only approved logs and panels in their specified positions. Do not burn wood or operate with damaged or removed glass. Keep burner and control compartments clean, arrange annual professional inspection, and follow manufacturer documentation and applicable codes.
Napoleon's President's Lifetime Limited Warranty applies under its original-purchaser, authorized-dealer, installation and maintenance terms. Coverage varies by component; electrical and wearable parts have first-year terms. Consult the owner's manual for exclusions, labor provisions and claims.
Request a return within 30 calendar days after delivery for eligible new, unused, unassembled and uninstalled items in original packaging. Written authorization is required. Read the Returns Policy for conditions, fees and exclusions.
Most in-stock items are released for shipment within 1–2 business days after payment and order review. Carrier transit is additional. Parcel transit commonly takes 3–7 business days; freight commonly takes 5–10 business days after shipment. Special-order and backordered items may take longer. Shipping details, exclusions and damage reporting.
