Product Overview

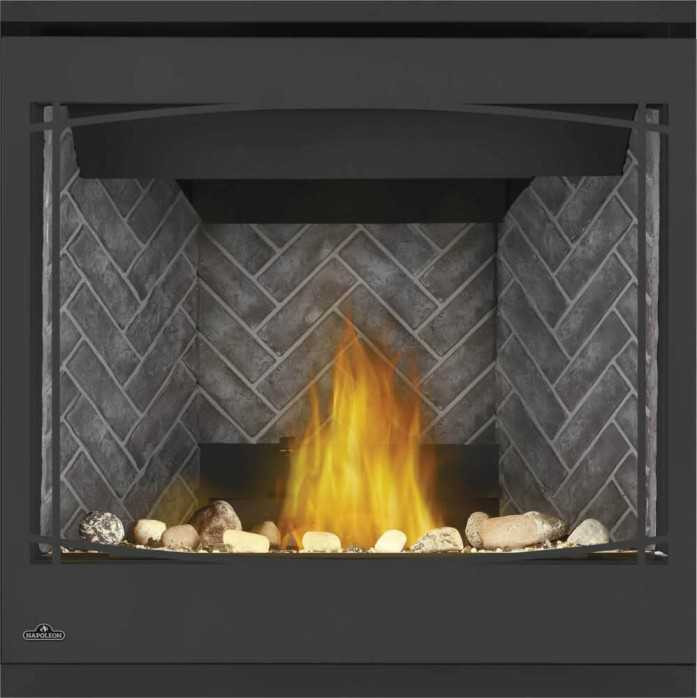

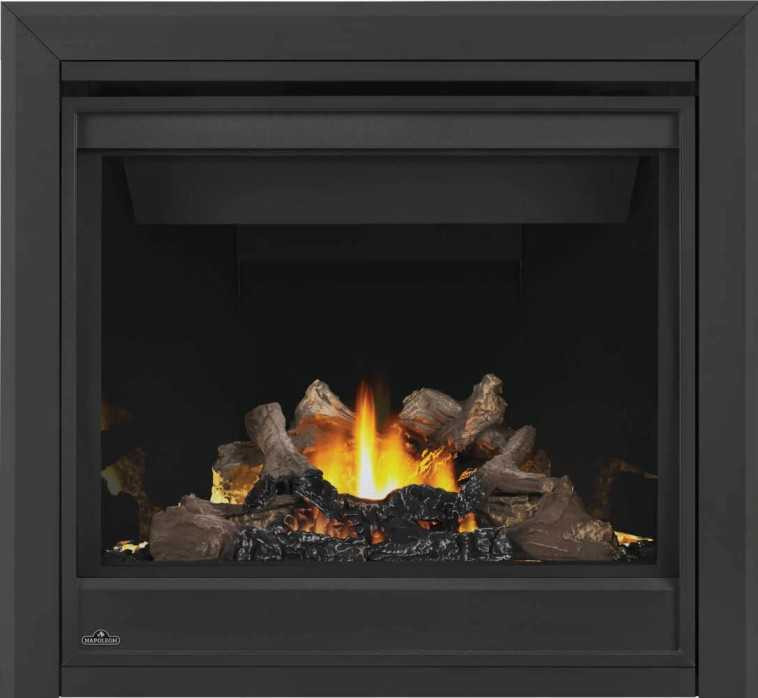

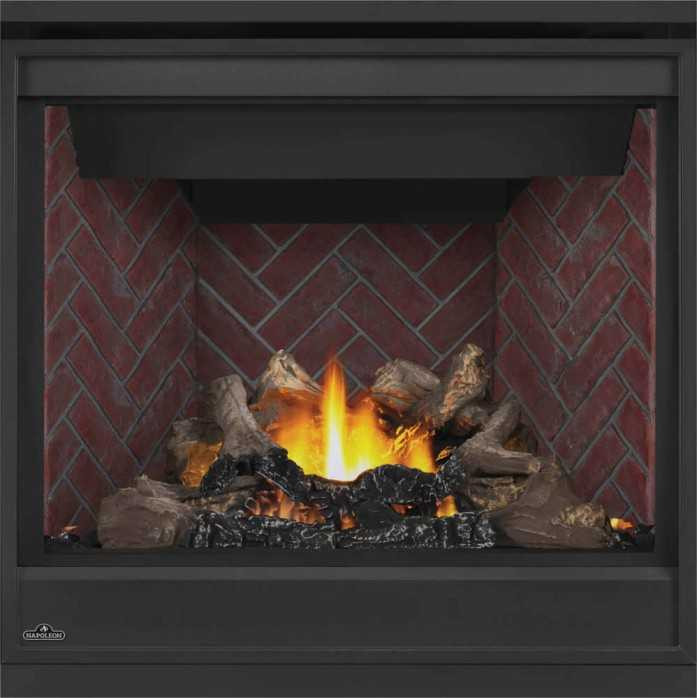

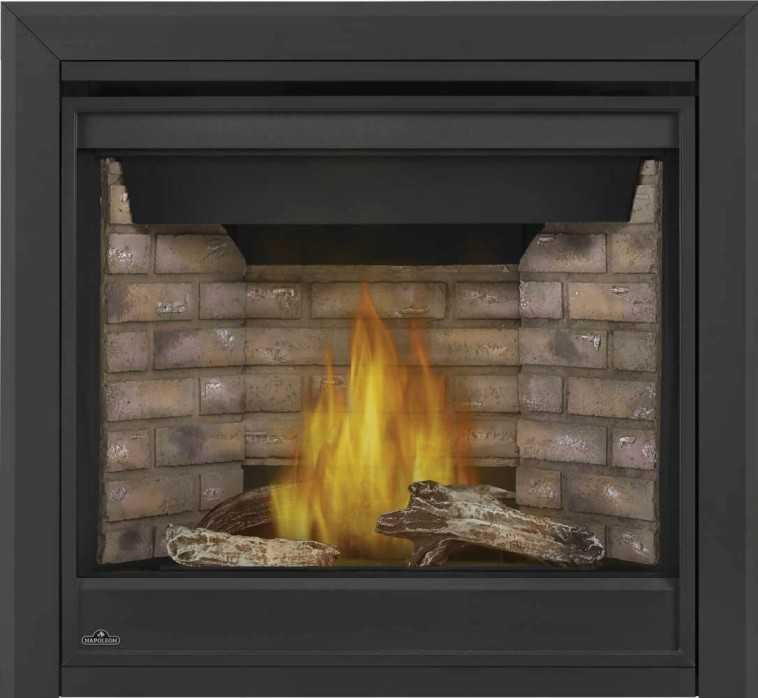

Napoleon Ascent X 36" Direct Vent Gas Fireplace BX36 is identified by model/SKU BX36NTRE. Key product details include Fuel: Natural Gas / Propane (select fuel model); Venting: Direct Vent; Size: 30-39; Installation: Zero Clearance; Type: Single Sided.

Memorable moments are built by a fireplace. Including the Ascent™ X 36 gas fireplace in any space will ensure memories that last a lifetime. Gorgeously hand-painted PHAZER® logs feature a glowing ember bed and are the most realistic in the industry. Enjoy the fire to its fullest thanks to a full-width firebox and clean-faced design. The included premium safety barrier keeps your family safe while ensuring the view of the glorious flames is never obstructed. Make the Ascent™ X 36 as unique as your family with designer options including fronts, trims, decorative backer panels, the beach fire, shore fire and miner rocks enhancement kits. The included blower, NIGHT LIGHT™ and remote make use and enjoyment easy as can be. You can also operate this fireplace from the comfort of your favorite spot using your mobile devices with the convenient eFire remote app.

Controls

The F60 thermostatic remote is included with the fireplace; its separately priced choice is for replacement only. W660-0081 is an optional wall thermostat. Optional eFIRE controllers must match fuel: EFCN-PF0 for natural gas, EFCP-PF0 for propane.

Venting

A complete approved 4-inch inner / 7-inch outer direct-vent system is required for installation and sold separately. The venting selector is optional for ordering and is listed after other accessories. Choose components for your installer-approved route: horizontal kits, individual wall or roof terminations, flex lengths, and installation accessories are alternatives or route-dependent parts, not items to purchase all together. Roof terminals need the appropriate vent lengths; a single terminal or accessory is not a complete system. Do not mix vent sizes. For an approved BX36 power-vent installation, order the GPV terminal together with the PVA-ASCENT adapter. Both are needed for this configuration. Follow the appliance, adapter and GPV instructions for routing and electrical connections; these optional ordering choices do not constitute a complete installation package.

Features

  • Premium Safety Barrier
  • Heat Radiating Ceramic Glass
  • Pan Style Burner
  • Flame / Heat Adjustment
  • Flex or Rigid Venting
  • Blower Included
  • Remote Included
  • NIGHT LIGHT™ Included
  • Oak Log Set Included

Specifications

  • Heat Output: 26,000 BTU's (NG) | 25,000 BTU's (LP)
  • Viewing Area: 28 x 21.25 in
  • Framing Width: 35.50 in
  • Framing Height: 35 in
  • Framing Depth: 16 in
  • Unit Width: 35 in
  • Unit Height: 34.625 in
  • Unit Depth: 15.75 in
  • Vent Size: 4"/7"
  • Warranty: President's Limited Lifetime Warranty



Manuals

Specifications

SKU: BX36

Napoleon

Napoleon Ascent X 36" Direct Vent Gas Fireplace BX36

Write a Review
Expert Help Available (844) 545-7995
SKU: BX36
$3,629.00
BUY WITH CONFIDENCE Fireplace expertise from selection to delivery.
Shipping & Delivery Most in-stock items are released for shipment within 1–2 business days after payment and order review. Carrier transit is additional.
Free Shipping Eligible orders: free standard shipping to the contiguous U.S. Exclusions apply.
Best Price Guarantee Eligible identical products from authorized U.S. retailers; compare total delivered price before tax. Request before purchase or within 7 calendar days after purchase.
Contractor Pricing Trade professionals can contact us for project and volume pricing.
30-Day Returns Request a return within 30 days for eligible new, unused, uninstalled items. Authorization and exclusions apply.
Fireplace Experts Need help choosing? Talk to an expert before you order.
CONFIGURE YOUR FIREPLACE

Build Your Fireplace

Complete the required selections first, then add only the compatible options your fireplace and installation need.

1 Required selections
2 Customize options
3 Review & order
Expert Help (844) 545-7995

Fireplace

Complete the required product selections for this fireplace.

Required
  • Napoleon Decorative Panels - Westminster Herringbone Brick for Ascent X 36 DBPX36WH manufacturer finish detail
  • Napoleon Decorative Panels - Westminster Standard Brick for Ascent X 36 DBPX36WS manufacturer finish detail
  • Napoleon H35F Decorative Front - Black, Heritage Design for Ascent™ 36, X36, X70
  • Napoleon Z35F Decorative Front - Black, Zen Design for Ascent™ 36, X36, X70
  • Napoleon TK35 Finishing Trim - 3" Black, 3 or 4-Sided for Ascent™ X 70/X 36/36
  • Napoleon Ascent X BX36 3-Inch Black Surround with Safety Barrier CFF
  • Napoleon Ascent X BX36 Black Surround with Premium Screen GX427K
  • Napoleon Ascent X BX36 Scalloped Wrought-Iron Surround with Premium Screen GX725WI
  • Napoleon Wall-Mount Digital Thermostat W660-0081
  • Napoleon F60 Thermostatic Fireplace Remote Control with Digital Screen
  • Napoleon EFCN-PF0 eFIRE Bluetooth controller — app demonstration image; phone not included
  • Napoleon EFCP-PF0 — shared manufacturer eFIRE control kit illustration, BX owner manual page 24 item 16
  • Napoleon Shore Fire Kit - Small SFKS
  • Napoleon Woodland Media Enhancement Kit - Small WLKS
  • Napoleon Standard Beach Fire Log Set - Extra Small BFKXS
  • Napoleon MRKS Mineral Rocks - Small
  • Napoleon Top Vent Kit, 4/7" Horizontal FTV47
  • Napoleon Rear Vent Kit 4/7" Horizontal FRV47
  • Napoleon Wall Terminal/Vinyl Siding Shield, 4/7" GD-222
  • Napoleon Round Wall Terminal Kit, 4/7" GD-222R
  • Napoleon Silhouette™ Terminal Kit, 4/7" ST47U
  • Napoleon Periscope (Snorkel) for Wall Penetration Below Grade, 4/7 GD-201
  • Napoleon Roof Terminal Kit, 4/7" (1/12 to 7/12 Pitch) GD-110
  • Napoleon Roof Terminal Kit, 4/7" (8/12 to 12/12 Pitch) GD-111
  • Napoleon Roof Terminal Kit, 4/7" (Flat Roof) GD-112
  • Napoleon 5ft Vent Kit, 4/7" GD-220
  • Napoleon 10ft Vent Kit, 4/7" GD-330
  • Napoleon Assembly, Adjustable 4/7 Firestop W010-3440
  • Napoleon Firestop/Vent Sleeve Assembly 4/7" VS47KT
  • Napoleon Attic Firestop/Vent Sleeve Assembly 4/7" AVS47KT-1
  • Napoleon Coupler Kit, 4/7" W175-0195
  • Napoleon Simpson Duravent Adaptor, 4/7" W175-0053
  • Napoleon Stand off for Silhouette™ Terminal, 4/7" - Vinyl Finishing SOST47
  • Napoleon Stand off for Silhouette™ Terminal, 4/7" - Brick SOST47B
  • Napoleon Restrictor Plate (Recommended for Aggressive Vertical Venting) RP4
  • Napoleon Power Vent Terminal GPV
  • Napoleon Power Vent Adaptor Kit PVA-ASCENT
Hurry up! Current stock:
Available to order
READY TO ORDER

Your Fireplace Configuration

Review your selections, then add your configured fireplace to cart.

Configuration Calculator
Fireplace
Selected Components $0.00
Selected Accessories $0.00
Configured Total
Need help before ordering? Talk to a Product Expert (844) 545-7995
  • product-security-image-1.jpg
  • product-security-image-2.jpg
  • product-security-image-3.jpg
  • product-security-image-4.jpg
30-Day Returns Eligible items; authorization and exclusions apply

Request a return within 30 calendar days after delivery for eligible new, unused, unassembled and uninstalled items in original packaging. Written authorization is required. Read the Returns Policy for conditions, fees and exclusions.

Return Window 30 Days
Return Support Email Our Team
Shipping & Delivery Clear delivery expectations and tracking

Most in-stock items are released for shipment within 1–2 business days after payment and order review. Carrier transit is additional. Parcel transit commonly takes 3–7 business days; freight commonly takes 5–10 business days after shipment. Special-order and backordered items may take longer. Shipping details, exclusions and damage reporting.

Most In-Stock Items: Processing 1–2 Business Days After Review
Standard Shipping Eligible Contiguous U.S. Orders

Product Overview

Napoleon Ascent X 36" Direct Vent Gas Fireplace BX36 is identified by model/SKU BX36NTRE. Key product details include Fuel: Natural Gas / Propane (select fuel model); Venting: Direct Vent; Size: 30-39; Installation: Zero Clearance; Type: Single Sided.

Memorable moments are built by a fireplace. Including the Ascent™ X 36 gas fireplace in any space will ensure memories that last a lifetime. Gorgeously hand-painted PHAZER® logs feature a glowing ember bed and are the most realistic in the industry. Enjoy the fire to its fullest thanks to a full-width firebox and clean-faced design. The included premium safety barrier keeps your family safe while ensuring the view of the glorious flames is never obstructed. Make the Ascent™ X 36 as unique as your family with designer options including fronts, trims, decorative backer panels, the beach fire, shore fire and miner rocks enhancement kits. The included blower, NIGHT LIGHT™ and remote make use and enjoyment easy as can be. You can also operate this fireplace from the comfort of your favorite spot using your mobile devices with the convenient eFire remote app.

Controls

The F60 thermostatic remote is included with the fireplace; its separately priced choice is for replacement only. W660-0081 is an optional wall thermostat. Optional eFIRE controllers must match fuel: EFCN-PF0 for natural gas, EFCP-PF0 for propane.

Venting

A complete approved 4-inch inner / 7-inch outer direct-vent system is required for installation and sold separately. The venting selector is optional for ordering and is listed after other accessories. Choose components for your installer-approved route: horizontal kits, individual wall or roof terminations, flex lengths, and installation accessories are alternatives or route-dependent parts, not items to purchase all together. Roof terminals need the appropriate vent lengths; a single terminal or accessory is not a complete system. Do not mix vent sizes. For an approved BX36 power-vent installation, order the GPV terminal together with the PVA-ASCENT adapter. Both are needed for this configuration. Follow the appliance, adapter and GPV instructions for routing and electrical connections; these optional ordering choices do not constitute a complete installation package.

Features

  • Premium Safety Barrier
  • Heat Radiating Ceramic Glass
  • Pan Style Burner
  • Flame / Heat Adjustment
  • Flex or Rigid Venting
  • Blower Included
  • Remote Included
  • NIGHT LIGHT™ Included
  • Oak Log Set Included

Specifications

  • Heat Output: 26,000 BTU's (NG) | 25,000 BTU's (LP)
  • Viewing Area: 28 x 21.25 in
  • Framing Width: 35.50 in
  • Framing Height: 35 in
  • Framing Depth: 16 in
  • Unit Width: 35 in
  • Unit Height: 34.625 in
  • Unit Depth: 15.75 in
  • Vent Size: 4"/7"
  • Warranty: President's Limited Lifetime Warranty



Manuals
