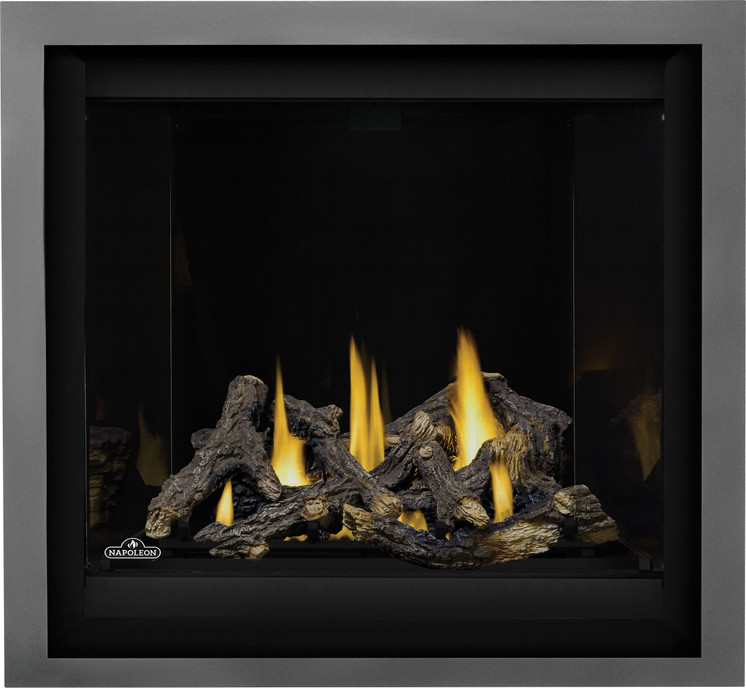

The Napoleon AX36PTE-2 is the propane version of the Altitude X 36-inch direct-vent decorative fireplace. Its clean-face design pairs a large traditional firebox with a separately selected log set and interior panel finish. The base-appliance price does not include the required log set, panel kit or installation-specific vent system.
ProFlame II remote control and the fuel-matched eFIRE controller are included. The Controls selector offers the optional W660-0160 wall-mount control and a separately priced replacement eFIRE controller. The replacement is not an additional required purchase; no extra remote purchase is needed for the standard fireplace package.
A complete approved 5-inch exhaust / 8-inch air intake direct-vent system is required for installation and sold separately. Venting choices remain optional for ordering. Terminations are route alternatives, not items to buy all together; add the proper vent lengths and route-specific installation parts. Follow the exact appliance manual and installer-approved route. A terminal or single pipe kit alone is not a complete system. This appliance is top vent. Round-wall and Silhouette terminations are the source-listed horizontal options.
Base appliance, burner and electronic controls, safety barrier, top and bottom door trims, remote/eFIRE control and heat-circulating blower. The supplied non-combustible board and safety barrier must be installed as specified; heat-management configurations have their own board and finishing requirements.
Panel kits are sold separately, as stated in installation manual section 9.1. The included top/bottom door trims are different from optional decorative fronts. Any decorative configuration shown in the image may include separately purchased components.
Manufacturer-listed decorative fronts and finishing trims are optional. Dynamic Heat Control, Ducted Heat Management and hot-air-distribution options require their own installation instructions; do not combine incompatible systems. Do not purchase an additional blower or remote for the standard included configuration.
| SKU / MPN | AX36PTE-2 |
|---|---|
| Fuel | Propane |
| Product type | Vented decorative gas fireplace |
| Location / configuration | Indoor, built-in, single-sided |
| Maximum input | 34,000 BTU/hr, installation manual section 1.1 |
| Venting | Top direct vent, 5-inch inner / 8-inch outer |
| Ignition | Electronic IPI with timed CPI mode |
| Appliance dimensions (W × H × D) | 35.25 × 44.3125 × 18.875 inches; manual dimensional drawing |
| Rough framing (W × H × D) | 35.75 × 42.9375 × 19 inches; separate enclosure/vent clearance requirements apply |
| Enclosure height | 72 inches typical / 84 inches recessed; see manual for heat-management alternatives |
| Shipping weight | 160 lb |
| Gas supply minimum | 11 inches water column |
| Manifold pressure | 10 inches water column |
Installation and service must be performed by a qualified installer. Maintain at least 48 inches between the front face and objects. Horizontal vent clearances are 3 inches above and 2 inches at the sides/bottom; vertical runs require 1 inch all around. Framing, enclosure height and mantel clearances are separate requirements: consult the full diagrams before construction. Keep all finishing outside the finishing flange, retain service access, and install the supplied safety barrier and door trims. Position only approved logs exactly as their instructions show; never burn solid fuel. This is a decorative appliance, not a primary heating appliance. Fuel conversion requires a certified kit and qualified service. Follow manufacturer documentation and applicable codes.
Napoleon President’s Lifetime Limited Warranty, subject to the original-purchaser and installation conditions. Covered lifetime parts receive repair/replacement coverage for the first ten years, then replacement at 50% of current retail price under the stated terms. Electrical/wearable components and authorized warranty labor have first-year coverage. Refer to the full warranty for exclusions and component-specific terms.
Request a return within 30 calendar days after delivery for eligible new, unused, unassembled and uninstalled items in original packaging. Written authorization is required. Read the Returns Policy for conditions, fees and exclusions.
Most in-stock items are released for shipment within 1–2 business days after payment and order review. Carrier transit is additional. Parcel transit commonly takes 3–7 business days; freight commonly takes 5–10 business days after shipment. Special-order and backordered items may take longer. Shipping details, exclusions and damage reporting.
