Napoleon’s Alluravision™ 60 Deep Depth linear electric fireplace allows you to see the fireplace and not the frame with its nearly frameless linear design. As a contemporary electric fireplace, the frameless modern look is just as important as its functionality. Easy to use, the plug and play installation allows this unit to be hung on the wall and turned on immediately. The Alluravision™ 60 can also be hardwired in to hide plugs. Select from four flame colors, yellow, orange, blue, and multi-colored and with five different flame speeds, further ensure the perfect atmosphere for any space. Illuminate the firebox without flame using the NIGHT LIGHT™ to boost ambient light and create a warm glow. Add the driftwood logs for increased hearth-like elegance. Enjoy the Alluravision™ 60 all year round with separate flame and heat controls.

Features

• Log Set and Crystal Clear Cube Ember Bed
• WHISPER QUIET™ Blower with Boost Function
• Simply Plugs into 120V Outlet
• Can be Hardwired 120/240V
• Deep View Design

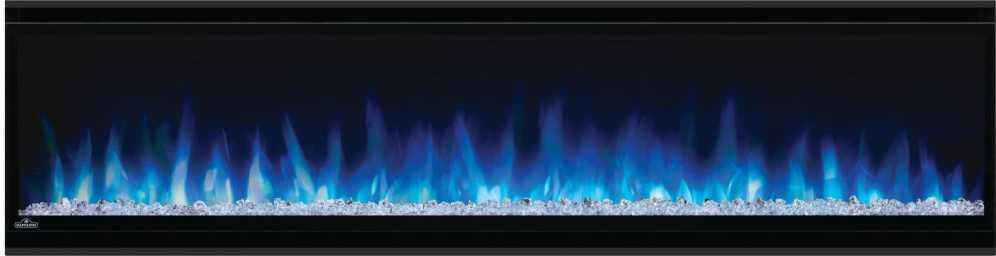

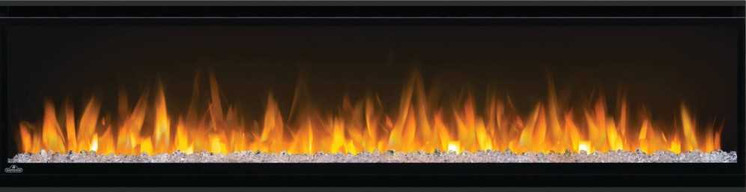

• Yellow, Orange, Blue or Combined Flame Color Options

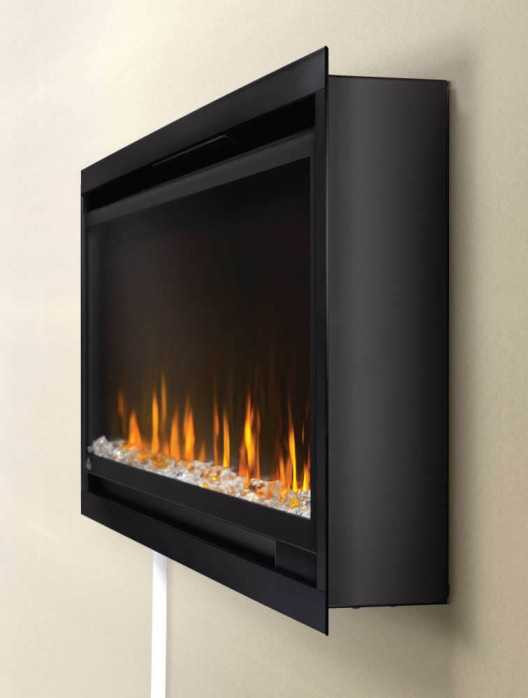

• Can be Fully Recessed or Hung on the Wall
• LED Lighting
• Touch Screen Control Panel
• Multi-Color Ember Bed and NIGHT LIGHT™

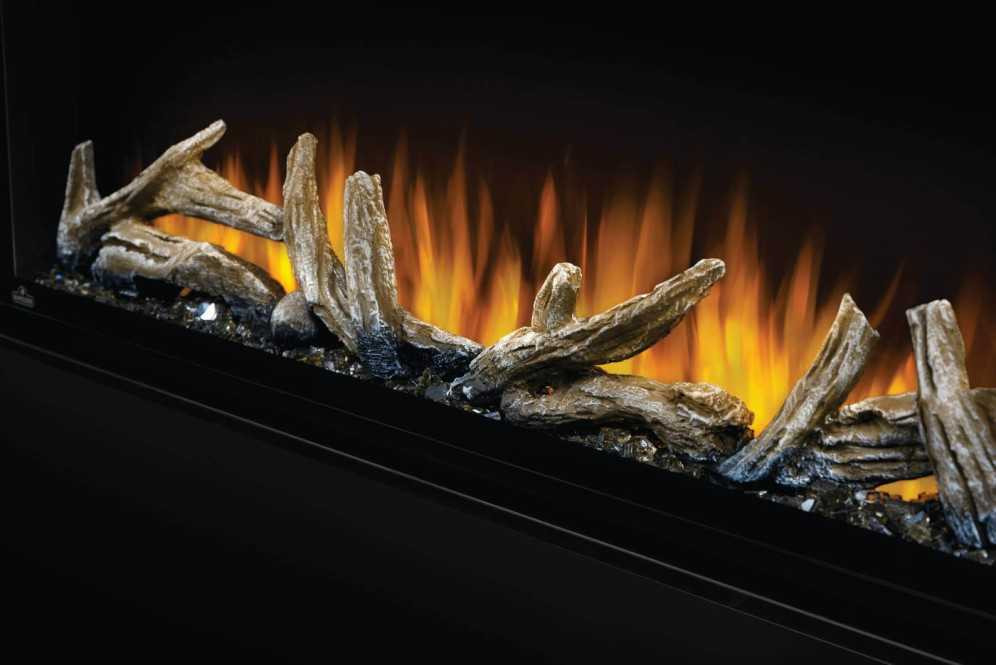

• South Beach Log Set Included
• Paintable Cord Cover

Specifications

• Heat Output: 9,000 BTU's
• Viewing Area: 58 5/16 x 11 1/16 in
• Framing Width: 60.69 in
• Framing Height: 16.13 in
• Framing Depth: 6.06 in
• Unit Width: 62 9/16 in
• Unit Height: 17 5/16 in
• Unit Depth: 5 13/16 in
• Warranty: 2 Year Warranty

Manuals

• Brochure
• Manual
• Spec Sheet
• Support Documents - For Professionals

Electrical and installation requirements

• 120V AC operation up to 1,450W, or correctly hardwired 240V AC operation up to 2,800W. A dedicated 15-amp grounded circuit is required.
• Wall-mounted, recessed or mantel installation must follow the exact model instructions. Keep at least 8 inches from the top of the appliance to the mantel and at least 36 inches from the front to furniture, curtains, bedding and similar combustible materials.
• Enclosure clearances are 0 inches at the bottom, sides and back; the top may have 0-inch clearance when recessed, while the 8-inch mantel clearance still applies. Do not obstruct heater openings.
• Do not use an extension cord. Hardwiring and grounding must comply with the installation manual and applicable electrical codes.
• The front glass must be installed for operation. A gas connection and combustion venting are not applicable to this electric appliance.

Model-specific weight

• Net appliance weight: 82.7 lb.
• Gross packaged weight: 109.1 lb.

Dimensions, ratings and weights are documented in installation manual W415-2841 revision F, pages 5–6; circuit and clearance requirements are on pages 9–11. Follow all manufacturer installation instructions and applicable codes.
