Product overview

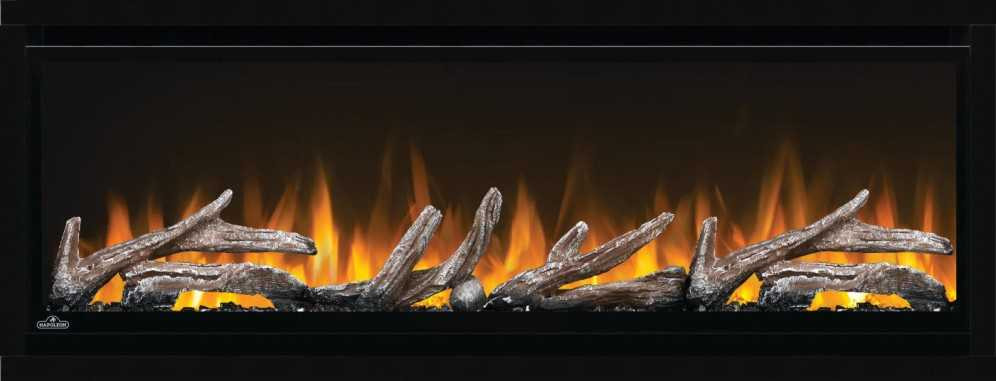

Napoleon Alluravision 42" Deep Depth Electric Fireplace NEFL42CHD-1. A nearly frameless linear electric fireplace for wall-mounted or fully recessed installation, with a deep firebox and separately controlled flame and heat.
Key features
- Yellow, orange, blue or combined flames with five flame speeds.
- Quiet blower with boost function.
- LED touch controls, multicolor ember bed and NIGHT LIGHT illumination without flame.
Included components
- South Beach log set, clear cube ember-bed media and paintable cord cover.
Specifications
| Model / MPN | NEFL42CHD-1 |
|---|---|
| Product type | Electric fireplace |
| Electrical input | 120V AC up to 1,450W; correctly hardwired 240V AC up to 2,800W |
| Viewing Area | 40 1/4 x 11 1/16 in |
| Framing Width | 42.56 in |
| Framing Height | 16.13 in |
| Framing Depth | 6.06 in |
| Unit Width | 44 7/16 in |
| Unit Height | 17 5/16 in |
| Unit Depth | 5 13/16 in |
| Net appliance weight | 63.3 lb |
| Gross packaged weight | 82.7 lb |
| Gas supply / combustion venting | Not applicable |
Installation and safety notes
- Provide a dedicated 15-amp grounded circuit. Plug-in operation uses 120V; hardwired installation must follow the appropriate voltage instructions.
- Keep at least 8 inches from appliance top to mantel and 36 inches in front to furniture, curtains, bedding and similar combustibles.
- Enclosure clearances are 0 inches bottom, sides and back. Recessed top clearance may be 0 inches while the mantel clearance still applies.
- Do not obstruct heater openings or use an extension cord. Install the front glass before operation.
Install and operate in accordance with the complete manufacturer manual and applicable electrical and building codes.
Warranty summary
Napoleon’s two-year premium warranty covers warranted defective parts under normal operation. After the first year, installation, labor and reinstallation expenses are excluded. Coverage is limited to the original purchaser through an authorized dealer and is subject to the manual’s conditions and exclusions.
