Product Overview
Napoleon 50" Tall Linear Vector Gas Fireplace TLV50N is identified by model/SKU TLV50N. Key product details include Fuel: Natural Gas; Venting: Direct Vent; Size: 50-59 / 50; Type: Zero Clearance; Style: Linear.
Build Configuration

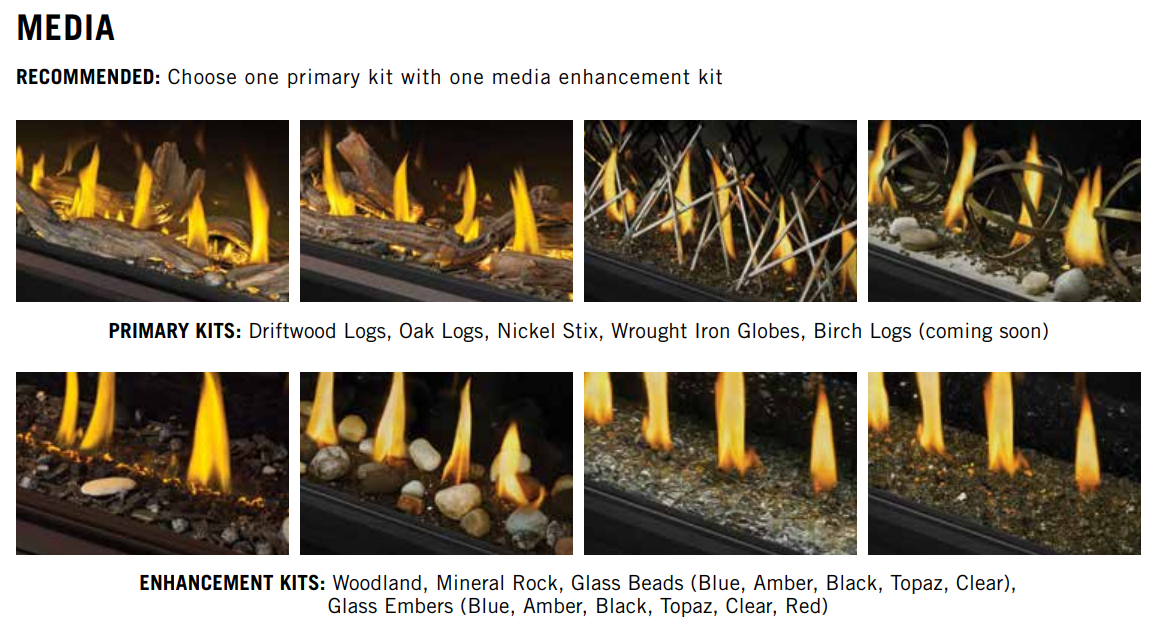

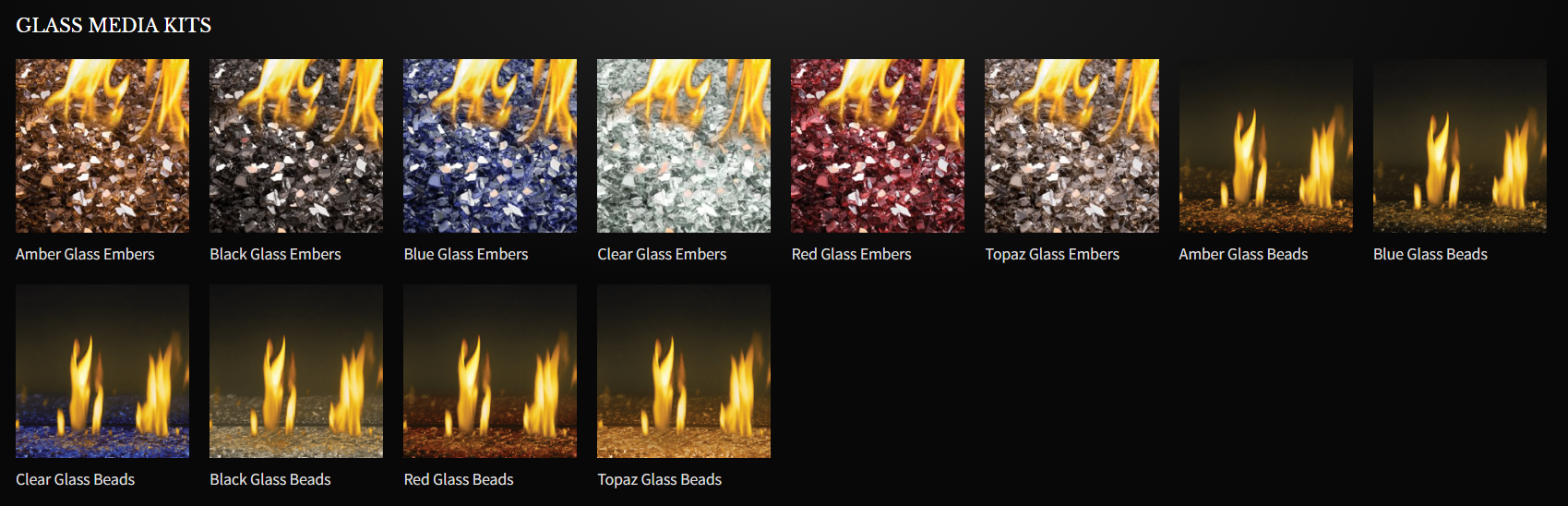

This exact model is natural gas with electronic ignition. Media is selected separately. Napoleon recommends two glass kits when choosing glass media. The ProFlame II remote, eFIRE control and reflective panels are included. Controls offers the optional W660-0160 wall control.
Venting Options
Use an approved top-vent 5-inch exhaust / 8-inch air-intake system. For horizontal natural-draft terminations, Napoleon specifies a round-wall or Silhouette terminal; square-wall top/rear kits are not offered here. Choose the applicable roof pitch kit for a vertical route, together with all installation-specific pipe, supports and firestops. A terminal alone is not a complete system. Power venting uses GPV together with PVALX3; order both and follow their installation instructions. Venting selections remain optional for ordering. Any propane conversion needs an approved rigid or power-vent route. LHAD cannot be combined with the Dynamic Heat Control Linear or ducted heat-management systems. Follow the exact appliance manual and installer-approved layout.
<! -- tab -->
Overview

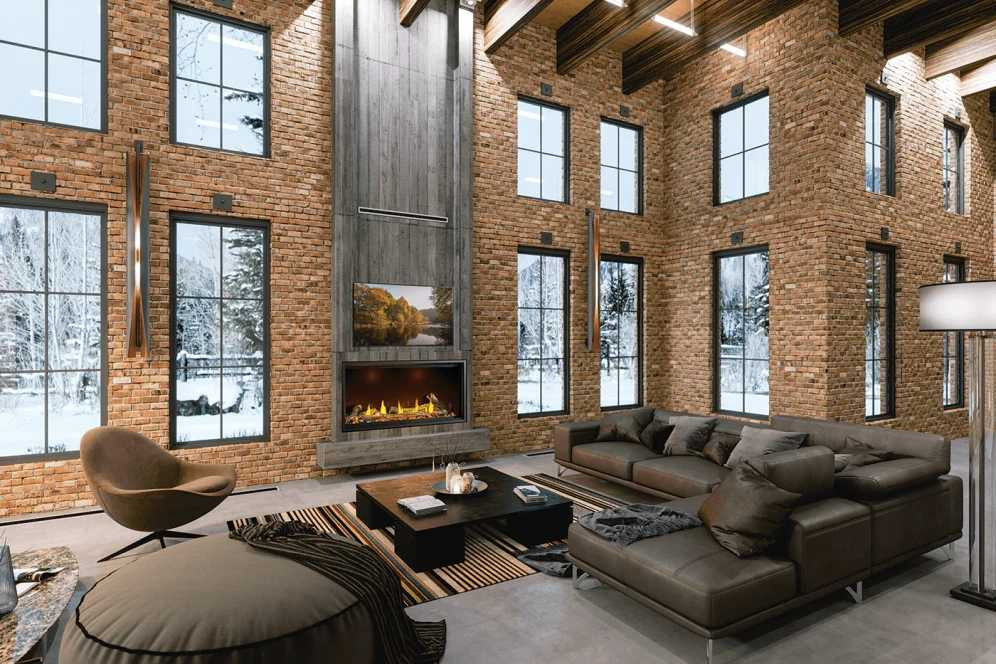

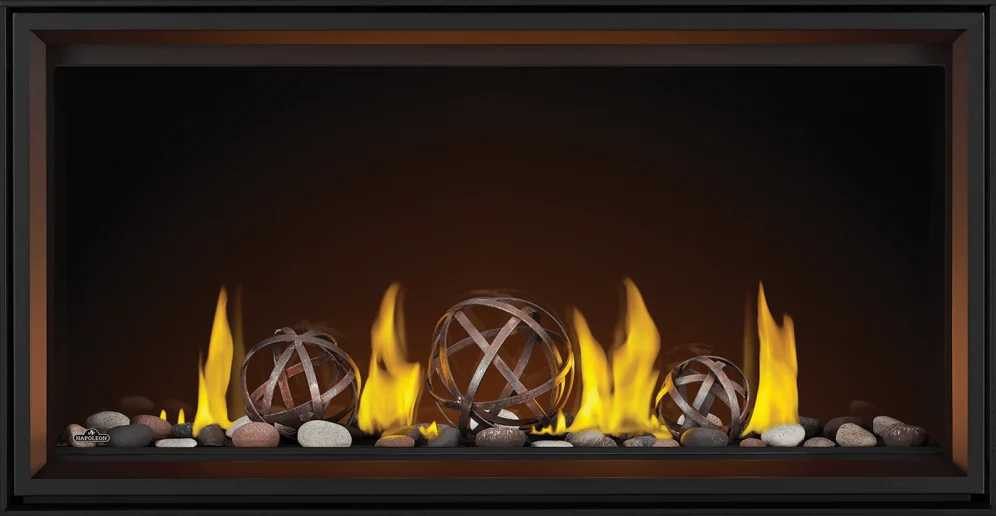

The Tall Vector Linear 50 by Napoleon is a gas fireplace that features all of the beautiful and sleek, modern design that you know and love with the Vector Series with an even greater visual impact, more efficient use of fuel, and superior heat distribution. Optional heat management through DHC & DHM means that you don't need additional blowers or power venting thus providing you with design flexibility like never before. It is the ultimate in comfort and beauty. Customize the look of this fireplace with combinations of logs, shale rocks, glass, and vermiculite, as well as other contemporary and traditional media options. See the fire and not the fireplace with the nearly frameless design, or create a work of art with the optional trim kit. Set the mood with top lights and an LED ember bed. Control everything easily with your favorite mobile device and the eFire app or included remote control. Complete your space with this luxurious fireplace to create a focal point that demands attention.
Features
- Heat Radiating Ceramic Glass
- Black Premium Safety Barrier
- Multi-Color LED Lighting and Accent Lighting
- Battery Back-Up Control System
- Stainless Steel Flex Connector
- Easy Access Air Control
- ProFlame II and eFire Controller with Remote Control
- Tube Style Burner with Flame/Heat Adjustment
- MIRRO-FLAME™ Porcelain Reflective Radiant Panels included
- Firestop / Vent Shield <! -- tab -->
Specifications
- Heat Output: 36,000 BTU's (NG) | 31,500 BTU's (LP)
- Viewing Area: 52.56 x 26.81 in
- Framing Width: 65.81 in
- Framing Height: 48.19 in
- Framing Depth: 20.13 in
- Unit Width: 65.31 in
- Unit Height: 49.44 in
- Unit Depth: 19.88 in
- Vent Size: 5"/8"
- Warranty: President's Lifetime Warranty
