Product Overview

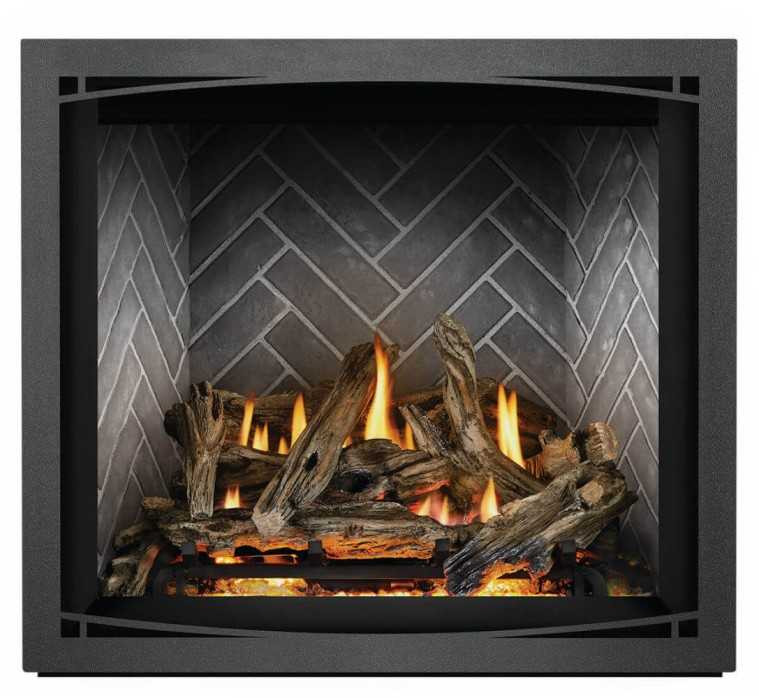

Napoleon 42" Elevation X Series Direct Vent Gas Fireplaces EX42 is identified by model/SKU EX42NTEL. Key product details include Fuel: Natural Gas / Propane; Venting: Direct Vent; Type: Single Sided; Style: Traditional / Clean-Face; Ignition: Electronic.
Build Configuration and Venting
Choose the exact natural-gas or propane appliance. Both fuel variants use electronic ignition. Select one compatible log set and one decorative-panel kit. The ProFlame II remote, fuel-matched eFIRE controller, variable-speed blower and premium safety screen are included. Controls offers the optional W660-0160 wall control. Use approved 5-inch exhaust / 8-inch intake top venting with a round-wall GD422R-2 or Silhouette horizontal terminal, or an approved roof route. Power venting uses GPV together with PVALX3; order both. A terminal or adapter alone is not a complete system. Venting selections remain optional for ordering. Do not combine LHAD with DHCEX. DHCP-BK needs DHCP-EK or DHCP-HK.
Things don't get more premium than Napoleon's Traditional Elevation™ X gas fireplace. Feature loaded with an electric ember bed with realistic glowing embers that are visible from every angle and an included heat circulating blower, this fireplace is beautiful form with high function. Nearly infinite design options include ultra high definition log options in beachy Driftwood, traditional Split Oak, and bright Birch. Several trim, decorative front, and decorative brick backer panel options are available to ensure your favorite spaces flow together. Control this fireplace easily with the included remote or from the comfort of your favorite mobile device. The optional Dynamic Heat Control™ PLUS System allows heat from the fireplace to be directed to any living area in the home that needs it, even if the power goes out. Make the Elevation™X the stylistic focal point it should be or keep it the traditional and understated crown jewel of your home.
Features
- Modulating ENDLESS EMBERS™ Electric Ember Bed
- Clean Face Design with Full Firebox Flame

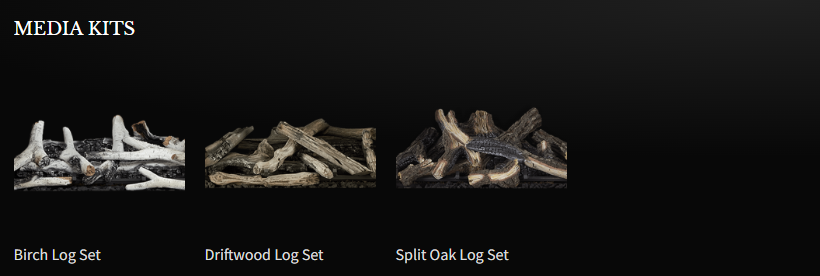

- Three Ultra HD Premium Log Set Options Include: Driftwood, Oak, Birch
- ProFlame II and eFIRE Controller with Remote Included
- Premium Safety Screen Included
- Heat Circulating Blower with Variable Speed and Thermostatic Control
- Split Flow Modulation Between Full and Reduced Flame Options
Specifications
- Heat Output: 45,000 BTU's (NG) | 39,000 BTU's (LP)
- Viewing Area: 36.44 x 28.94 in
- Framing Width: 45.75 in
- Framing Height: 47.75 in
- Framing Depth: 22.25 in
- Unit Width: 44.62 in
- Unit Height: 47.56 in
- Unit Depth: 22.50 in
- Vent Size: 5"/8"
- Warranty: President's Limited Lifetime Warranty
