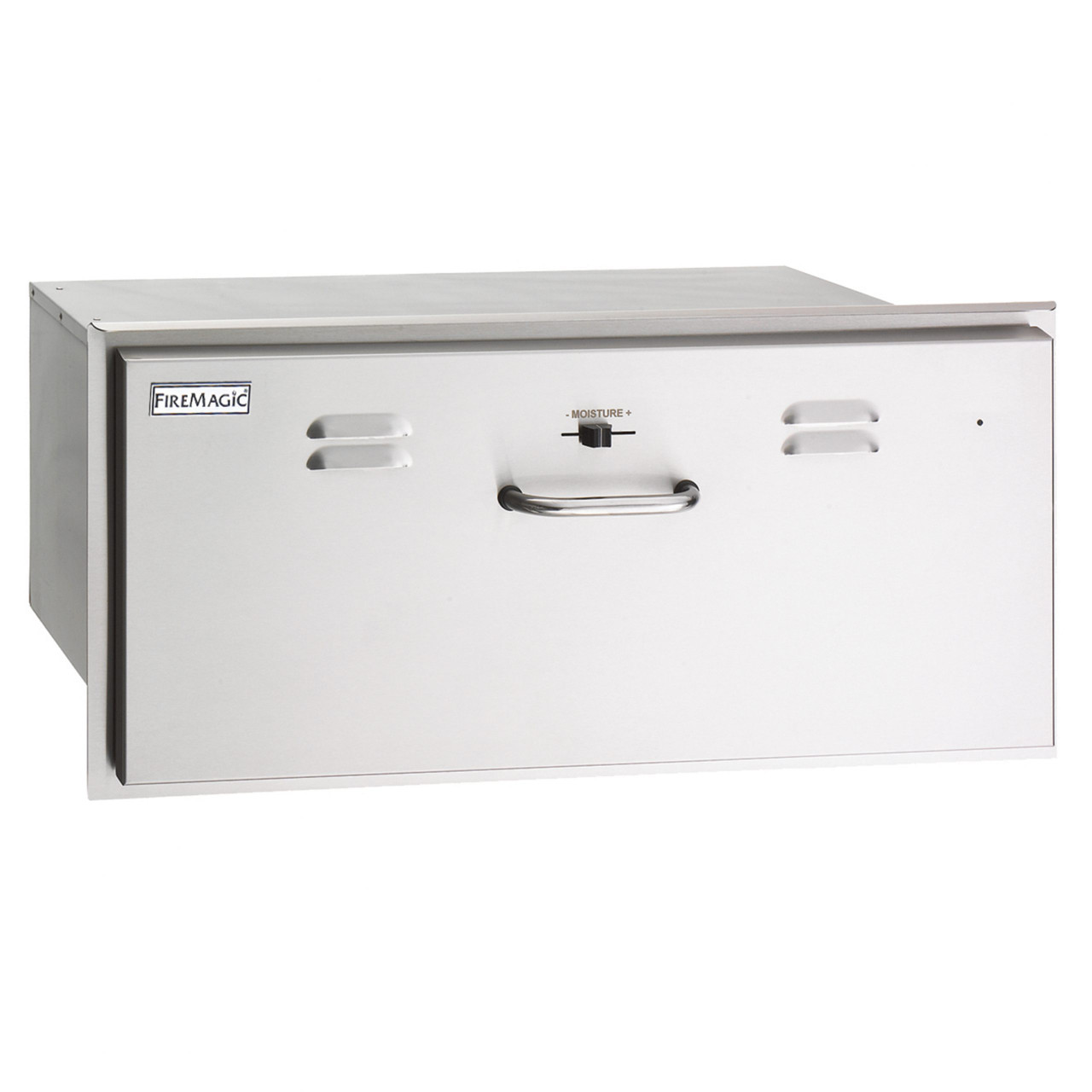

Keep plates, bread, side dishes, soups and sauces warm while finishing the rest of an outdoor meal. Model 33830-SW is an electrically heated warming drawer with adjustable temperature and humidity controls, built for an outdoor kitchen enclosure. Select this exact model for its select outside-mounted installation and specified opening.
The manufacturer identifies 304 stainless-steel construction. A temperature control sets warmth up to 230 degrees Fahrenheit. The sliding humidity control adjusts moisture without opening the drawer: open the vents to help keep food crisp, or close them to retain moisture. Adding water to the supplied moisture cup increases humidity. An indicator light shows operation. This is a warming appliance, not an unheated storage drawer or a gas grill.
Cutout measurements describe the installation opening, not the overall exterior dimensions. Gas fuel, ignition, burner BTU input and flue venting are not applicable to this electric warming drawer.
The manual identifies one warming drawer, one moisture cup, four removable moisture plates, an indicator light, temperature control and humidity control. The unit has a grounded three-wire power cord. The enclosure, electrical receptacle, mounting hardware suitable for the enclosure and silicone caulk are supplied separately.
Have installation and electrical wiring performed by a qualified professional. Use the exact model cutout and provide a secure rear support 1/8 inch higher than the front opening support so the installed drawer sits level. Remove the drawer from its slides before installation, fasten the housing securely through its four installation slots, and fit the supplied slot plugs to prevent heat loss and moisture entry. Reinstall the drawer and verify that its slides lock in place.
Follow the manufacturer's electrical requirements and applicable local codes, or the National Electrical Code where local requirements do not apply. The grounded GFCI receptacle must have a weatherproof in-use cover, and the power disconnect must remain accessible. Do not remove the grounding pin, use a two-prong adapter or add an extension cord. When installing directly below another appliance, the manual permits only Fire Magic built-in products. Match the supply to the unit rating plate.
The official product page identifies buffet warming accessory 23830-SW-CD as an optional addition. It is sold separately and is not a required purchase for the warming drawer.
Unplug when not in use and before cleaning or servicing. Allow the drawer and heating elements to cool completely before removing parts. Do not immerse the cord or plug, spray liquids on a hot unit, or operate with a damaged cord or plug. Clean food and grease deposits as needed. Protect the exterior from oven cleaner, wipe stainless steel with the grain, and increase maintenance near salt air or pools. Do not store chlorine or fertilizer near the appliance.
Manufacturer warranty coverage is subject to the applicable written terms, proof of purchase, qualified installation, proper maintenance and residential-use limitations. Refer to the warranty in the linked manufacturer manual; electrical damage, misuse and installation contrary to instructions are excluded. Installation and operation must follow the full manufacturer instructions and applicable codes.
Manufacturer installation and use instructions | Official product information
Request a return within 30 calendar days after delivery for eligible new, unused, unassembled and uninstalled items in original packaging. Written authorization is required. Read the Returns Policy for conditions, fees and exclusions.
Most in-stock items are released for shipment within 1–2 business days after payment and order review. Carrier transit is additional. Parcel transit commonly takes 3–7 business days; freight commonly takes 5–10 business days after shipment. Special-order and backordered items may take longer. Shipping details, exclusions and damage reporting.
