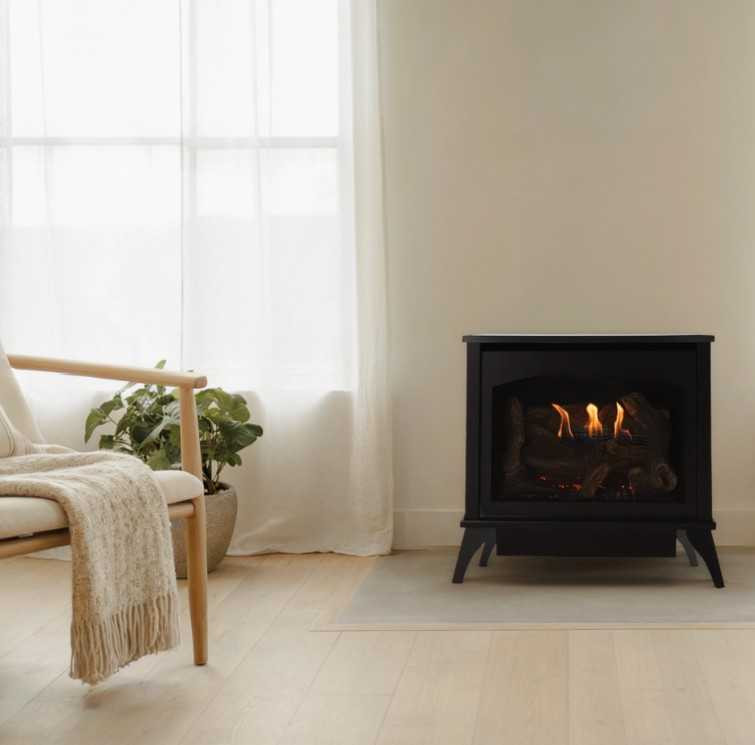

Empire VFD20MS Spirit is a small steel vent-free stove for supplemental indoor heating. Select the factory natural-gas or propane version and the documented millivolt or intermittent-pilot control configuration.
Millivolt models use a standing pilot lit with a pushbutton piezo igniter. Intermittent-pilot models light the pilot when heat is requested. Both can use compatible optional controls.
Contour burner, hand-painted ceramic-fiber log set and glowing embers. Install the logs only in the arrangement shown in the manual.
Provide the correct factory fuel configuration and adequate combustion and ventilation air. Field fuel conversion is prohibited. This is supplemental heat, not a primary whole-house heating system.
The optional blower for this size is CIB4. Remote and wall-control accessories are optional and must match the selected control system. A blower or remote is not a prerequisite for choosing the base stove.
| Model | VFD20MS |
|---|---|
| Product type | Steel gas stove |
| Location | Indoor |
| Venting classification | Vent-free |
| Width × height × depth | 21-1/2 × 23-3/8 × 15-5/8 inches |
| Natural gas input | 14,500–20,000 BTU/h |
| Propane input | 16,000–20,000 BTU/h |
| Gas inlet | 3/8 inch |
| Minimum clearances | 36 inches above appliance; 2 inches rear; 6 inches side; 4 inches from heater corners in 45-degree corner installation; 0 inches floor |
Install on a flat, solid, continuous surface. Provide service access and unobstructed air openings. Vent-free appliances release water vapor into the room; follow the combustion-air and room-use restrictions in the manual and local codes. Have installation and servicing performed by qualified personnel.
VFD20MS/VFD30MS installation and owner’s manual 42605-3-0621: model coverage on page 1; input ratings, dimensions and accessory table on page 6; combustion-air requirements on page 7; installation clearances on page 9. Consult the complete manual before installation.
