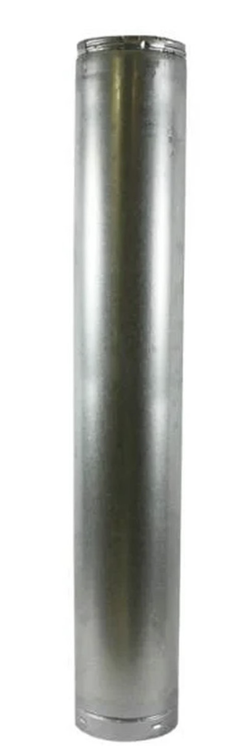

SV4.5L48 is a 48-inch nominal rigid Secure Vent direct-vent pipe section. The nominal number describes section length, not diameter. The listed system uses a 4-1/2-inch inner and 7-1/2-inch outer pipe.
Installed effective length is 46.5 inches, per the manufacturer’s vent-length table. Calculate the complete route from effective lengths; nominal lengths do not account for engaged joints. The concentric unitized section uses a positive twist-lock connection. Align and fully engage the joint according to the installation instructions before proceeding.
The exact part is listed for Superior DRT2035-E, DRT2040-E and DRT2045-E fireplaces. Other appliances must explicitly list this part or system in their own documentation; appearance or similar dimensions do not establish compatibility. Use only approved system components.
A complete vent system is required for the fireplace, but this individual component and its quantity depend on the selected route. For these fireplaces, horizontal or inclined vent components require 3 inches clearance above and 1 inch at sides and bottom. Follow all applicable vertical-route, termination, wall and roof clearances in the manual. Do not infer that every vent accessory is mandatory for every installation.
Superior DRT2000-E installation and operation manual, Rev C February 2025: approved vent systems, installation diagrams and exact accessory tables. Installation must follow the appliance and component instructions and applicable codes.
Request a return within 30 calendar days after delivery for eligible new, unused, unassembled and uninstalled items in original packaging. Written authorization is required. Read the Returns Policy for conditions, fees and exclusions.
Most in-stock items are released for shipment within 1–2 business days after payment and order review. Carrier transit is additional. Parcel transit commonly takes 3–7 business days; freight commonly takes 5–10 business days after shipment. Special-order and backordered items may take longer. Shipping details, exclusions and damage reporting.
