Overview

The BRT4000 B-Vent Fireplaces feature multidimensional refractory log arrangement and deep glowing ember bed. An aluminized “U” tube dual burner provides real wood-fire ambiance with 40,000 BTU. The BRT4000 ships smooth faced and include hidden screen pockets, easy access flue damper with safety shut-off switch, and white refractory. Includes white brick hearth.

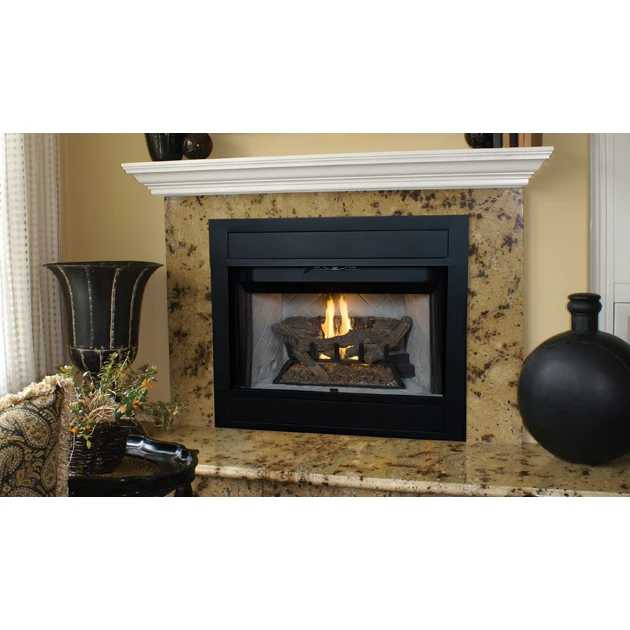

The BRT4336 B-Vent Fireplaces feature multidimensional refractory concrete log arrangement and deep glowing
ember bed. An aluminized "U" tube dual burner provides real wood-fire ambiance with 40,000 BTU. All BRT4336 ship
smooth faced and include hidden screen pockets, easy access flue damper with safety shut-off switch, and white
refractory panels.

Features

• Radiant, smooth-faced models
• Dual tube burner uses 6” b-vent
• Millivolt (Remote-ready) or electronic ignition
• Dramatic yellow flames with glowing ember bed
• Detailed ceramic fiber “split oak” log set with log grate
• BRT43 – White stacked refractory panel interior (sides, back and hearth)
• Screens retract into hidden screen pockets
• Hidden gas controls with damper safety switch
• Durable textured powder coat finish

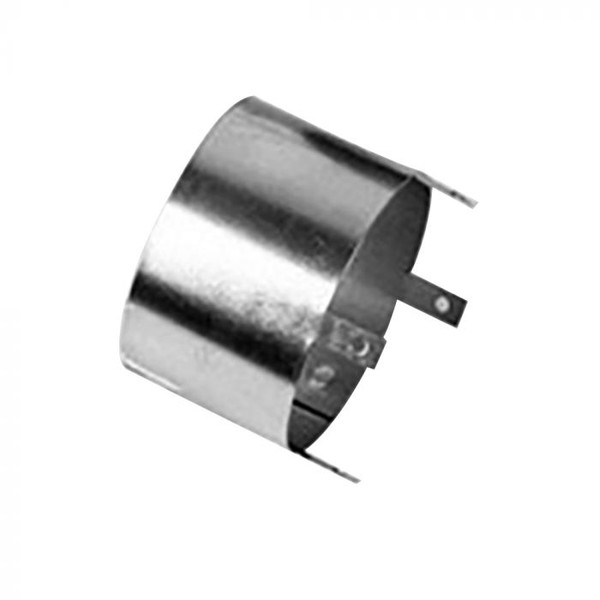

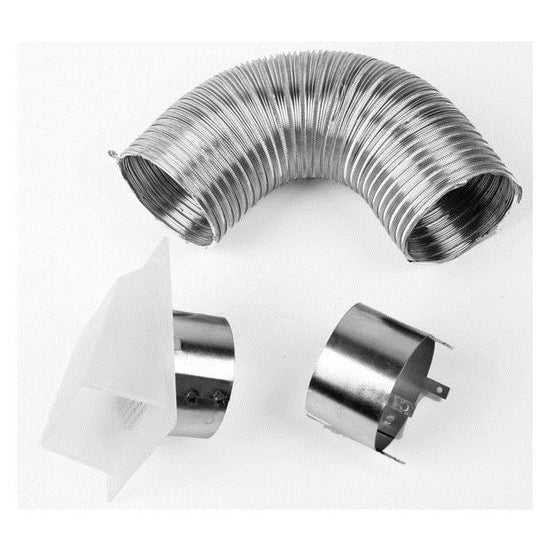

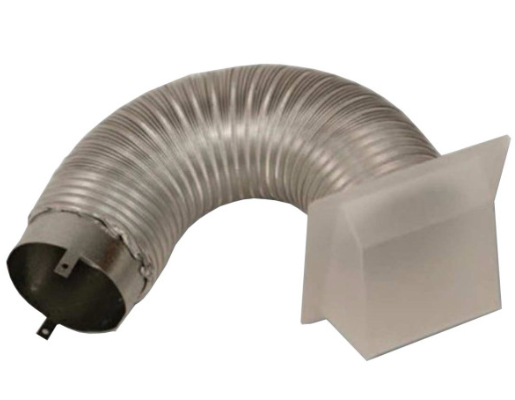

• Optional outside air kit for increased performance
• Optional remote controls available for all models
• Dual access pre-wired electrical J-box
• 20 year limited warranty

Specifications

• Product Type: B-Vent Gas Fireplace
• Framing Width: 41-1/4"
• Framing Height: 40-3/8"
• Framing Depth: 21-3/8"
• BTU: 40,000
• Design Style: Traditional
• View Style: Front-View
• Controls: Optional Remote
• Warranty: 20 Year Limited Warranty

Venting

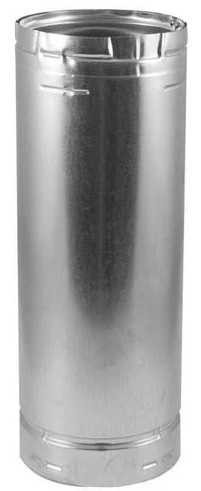

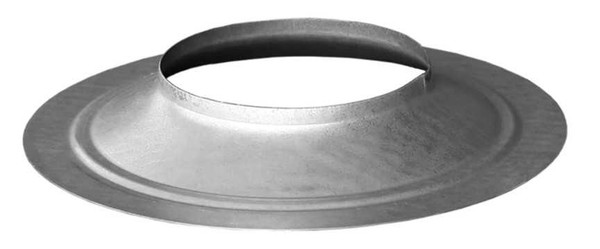

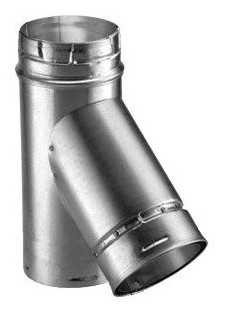

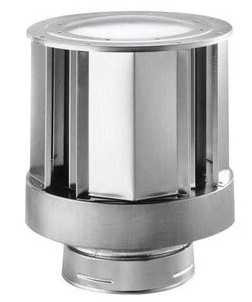

Uses a locally sourced, listed 6-inch B-vent system installed according to the appliance and vent manufacturer instructions. Venting options are ordered separately and remain optional in this build. Included logs and refractory panels do not need to be purchased again. Select fuel conversion kits only for the exact fuel and ignition configuration.

Downloads

• BRO, BRT4000 Brochure
• SS, BRT4000
• IICO, BRT4000/4300/4500-B TEN/P BV FP
• IICO, BRT4000/4300/4500-B TMN/P BV FP
• SPEC, BRT4000 & BRT4300 BV Fireplaces
• SPEC, BRT4500-B Series BV FP
