Product Overview
Napoleon Vector Series 38" Direct Vent Gas Fireplace LV38N-1 is identified by model/SKU LV38N-1. Key product details include Fuel: Natural Gas; Venting: Direct Vent; Size: 30-39 / 38; Type: Zero Clearance; Style: Linear.
Build Configuration
This exact model is natural gas with electronic ignition. Media is selected separately. Napoleon recommends two glass kits when choosing glass media. The ProFlame II remote, eFIRE control and reflective panels are included. Controls offers the optional W660-0160 wall control.
Venting Options
Use an approved top-vent 5-inch exhaust / 8-inch air-intake system. For horizontal natural-draft terminations, Napoleon specifies a round-wall or Silhouette terminal; square-wall top/rear kits are not offered here. Choose the applicable roof pitch kit for a vertical route, together with all installation-specific pipe, supports and firestops. A terminal alone is not a complete system. Power venting uses GPV together with PVALX3; order both and follow their installation instructions. Venting selections remain optional for ordering. Any propane conversion needs an approved rigid or power-vent route. LHAD cannot be combined with the Dynamic Heat Control Linear or ducted heat-management systems. Follow the exact appliance manual and installer-approved layout.

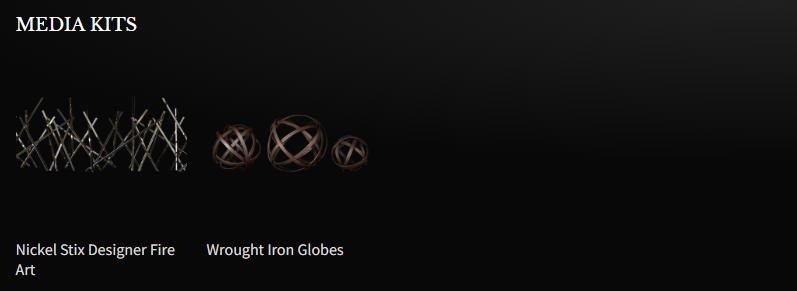

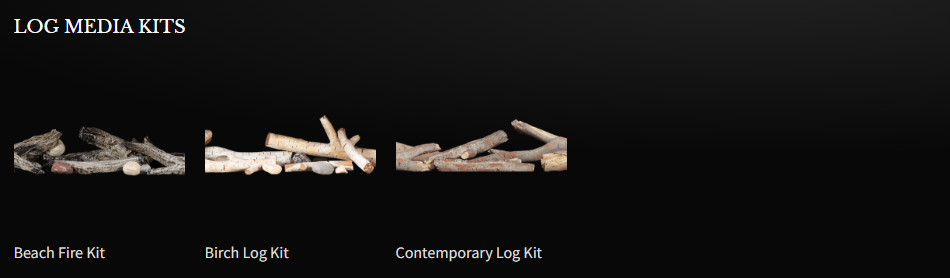

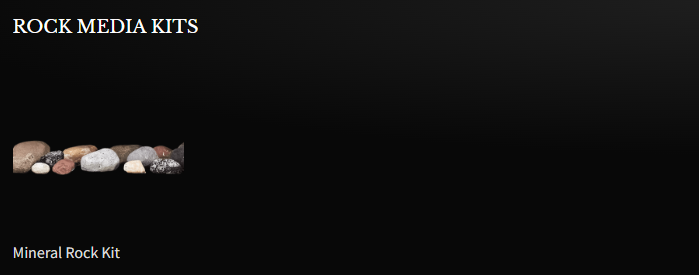

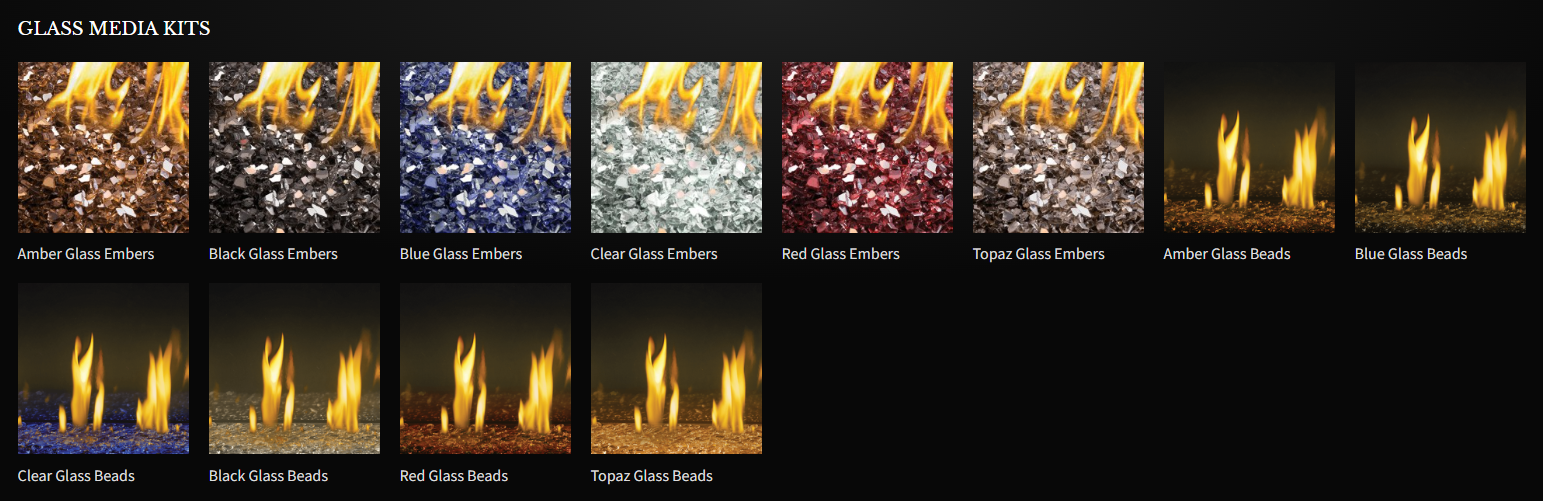

Napoleon’s Vector™ 38 linear gas fireplace features a sleek, contemporary design and multitudes of designer options. Complete your space with a luxurious fireplace, including the Divinity™ flame pattern with heightened peaks and valleys. Enjoy the flames’ radiant glow, shining through the clear glass bead ember bed. Use the NIGHT LIGHT™ system and the multi-coloured LED lights beneath the ember bed that accent from underneath to add a gentle glow to the room when not using the fire. Premium media kits, like modern Nickel Stix, the natural Mineral Rock Kit, beachy Shore, and Beach Fire Media Kits, and multicoloured Glass Ember Media or Glass Beads to create a truly custom look. You can relax while relishing the glow because you can control the Vector™ from your favorite mobile device with our convenient eFire app.
Features
- Heat Radiating Ceramic Glass

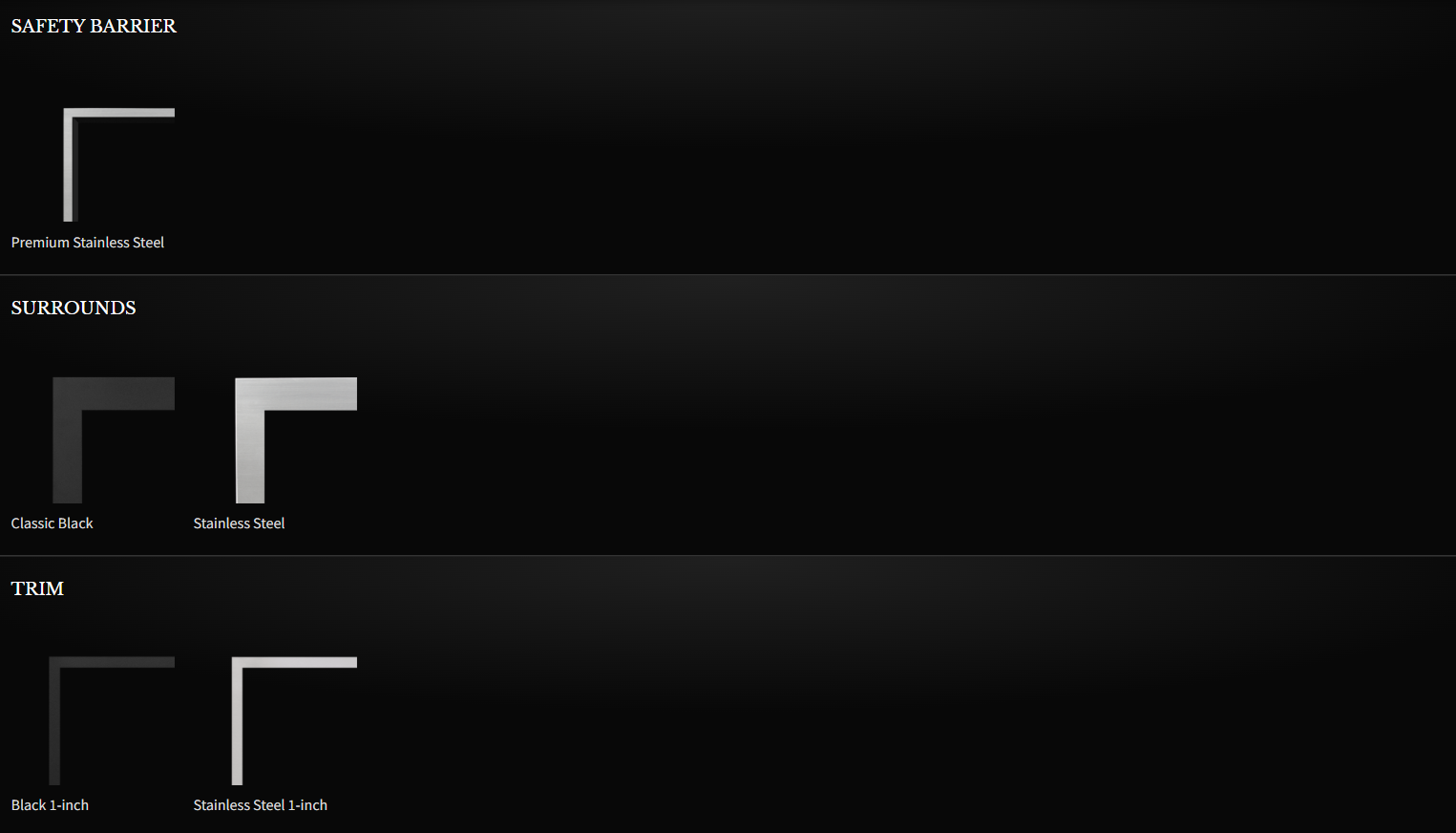

- Black Premium Safety Barrier
- Multi-Color LED Lighting and Accent Lighting
- Battery Back-Up Control System
- Stainless Steel Flex Connector
- Easy Access Air Control
- ProFlame II and eFire Controller with Remote Control
- Tube Style Burner with Flame/Heat Adjustment
- MIRRO-FLAME™ Porcelain Reflective Radiant Panels included
- Firestop / Vent Shield
Specifications
- Heat Output: 30,000 BTU's
- Viewing Area: 40.75 x 18.62 in
- Framing Width: 53.81 in
- Framing Height: 73 in
- Framing Depth: 20.13 in
- Unit Width: 53.31 in
- Unit Height: 41.19 in
- Unit Depth: 19.89 in
- Vent Size: 5"/8"
- Warranty: President's Limited Lifetime Warranty
