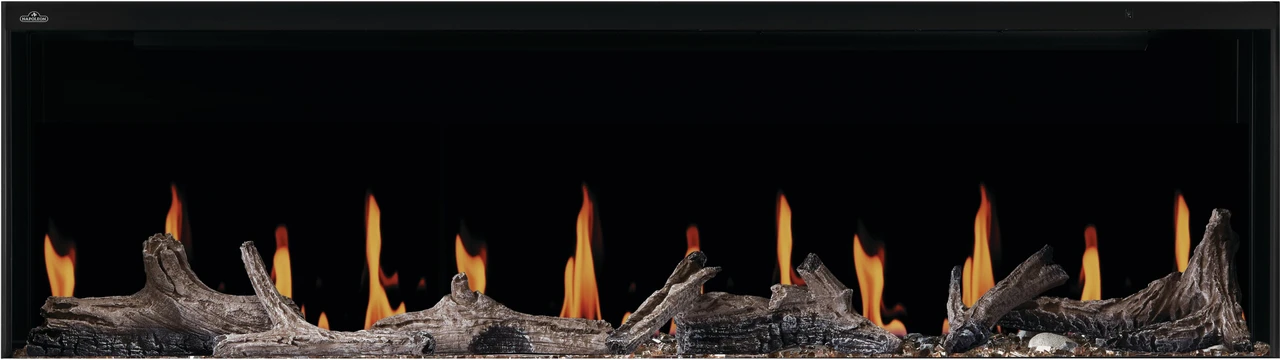

The Napoleon Luminex NEFL65LCD-3SV is a 65-inch LCD electric fireplace for a fully recessed indoor installation. It combines lifelike digital flames, sound and illuminated logs and media, with one-, two- or three-sided viewing configured during installation.
Fireplace, front and side glass, side finishing panels and trim, log set, mineral rocks, charcoal, two bags of rusty iron glass and two bags of smoky gem glass, remote, mounting hardware and gloves, as listed in the installation manual. Arrange the supplied media according to the manual before closing the front glass.
This appliance must be fully recessed into a non-load-bearing framed enclosure and hardwired by a qualified electrician to a dedicated grounded 15A circuit at 120V or 240V. It is not a wall-hanging or plug-in appliance. Configure the supplied side panels and trim for front-only, corner or three-sided viewing. No separately purchased logs, media, controller or venting are required for the standard configuration.
Napoleon lists optional glass beads, BLKXL birch logs, MRKXL mineral rocks and a W370-0317 wall-mounted controller for this model. A black-crystal upgrade is also optional; when selected, the current pricebook specifies five G497-0004 packages and three G497-0007 packages. These package quantities do not make the upgrade mandatory.
| SKU / MPN | NEFL65LCD-3SV |
|---|---|
| Fuel / location | Electric / indoor only |
| Installation | Fully recessed; one-, two- or three-sided viewing |
| Overall dimensions (W × H × D) | 66.25 × 25.375 × 12.0625 inches |
| Front viewing area (W × H) | 64.9375 × 16.75 inches |
| Single-sided framing (W × H × D) | 65.5625 × 25.875 × 12.5 inches |
| Two- or three-sided framing (W × H × D) | 65.0625 × 25.875 × 12.5 inches |
| Electrical supply | Hardwired 120V AC / 240V AC, 60Hz; dedicated grounded 15A circuit |
| Maximum input | 1500W at 120V / 3000W at 240V |
| Maximum advertised heat output | Up to 10,000 BTU |
| Net / shipping weight | 178.57 lb / 200 lb |
| Venting | Not applicable — electric appliance |
| Minimum top-to-mantel clearance | 3.5625 inches |
| Certification | CSA 22.2 No. 46 / UL 2021 |
Use indoors only; the manual excludes bathroom installation. The appliance does not support the weight of the wall or finishing materials. Keep air openings clear, maintain the minimum mantel clearance and follow the screw-safe finishing zones. Complete electrical connections and test operation before closing the enclosure. Two people should handle the appliance. Installation must follow the exact manufacturer manual and applicable electrical and building codes.
Napoleon provides a five-year limited warranty for covered electrical components and wearable parts to the original purchaser through an authorized dealer, subject to the complete conditions in the manual. Warranty-repair labor is covered in the first year only. Bulbs, fuses, shipping and excluded damage are not covered.
Request a return within 30 calendar days after delivery for eligible new, unused, unassembled and uninstalled items in original packaging. Written authorization is required. Read the Returns Policy for conditions, fees and exclusions.
Most in-stock items are released for shipment within 1–2 business days after payment and order review. Carrier transit is additional. Parcel transit commonly takes 3–7 business days; freight commonly takes 5–10 business days after shipment. Special-order and backordered items may take longer. Shipping details, exclusions and damage reporting.
