Product overview

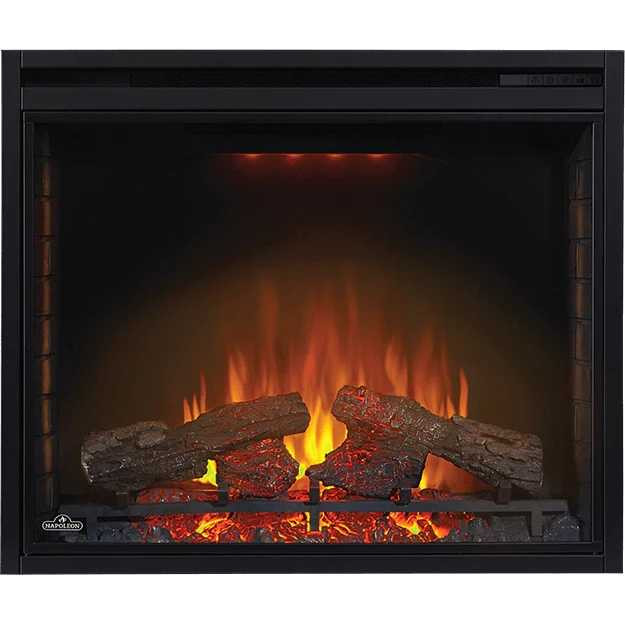

Napoleon Ascent Electric 33" Built-in Electric Fireplace NEFB33H. A traditional built-in electric fireplace with glowing logs and embers, brick-style panels and an adjustable LED flame display.
Key features
- Ultra-bright LED flame effects with changing color, height and speed.
- Quiet thermostatically controlled fan and heater.
- Non-reflective backing, NIGHT LIGHT illumination and a self-trimming flange.
- Fahrenheit or Celsius settings and diagnostic LED indication.
Included components
- Brick-style panels, log set and glowing ember display.
Specifications
| Model / MPN | NEFB33H |
|---|---|
| Product type | Electric fireplace |
| Electrical input | 120V / 240V; 1,325W / 2,650W |
| Height | 28.75 In |
| Width | 34 In |
| Depth | 9.75 In |
| Net appliance weight | 59 lb |
| Gross packaged weight | 74 lb |
| Gas supply / combustion venting | Not applicable |
Installation and safety notes
- Factory wired for 120V. The 240V configuration requires the manual’s hardwiring conversion; do not connect a 120V plug to 240V.
- Provide a dedicated 15-amp grounded circuit and follow the model-specific enclosure and electrical drawings.
Install and operate in accordance with the complete manufacturer manual and applicable electrical and building codes.
Warranty summary
Napoleon’s two-year premium warranty covers warranted defective parts under normal operation. After the first year, installation, labor and reinstallation expenses are excluded. Coverage is limited to the original purchaser through an authorized dealer and is subject to the manual’s conditions and exclusions.
