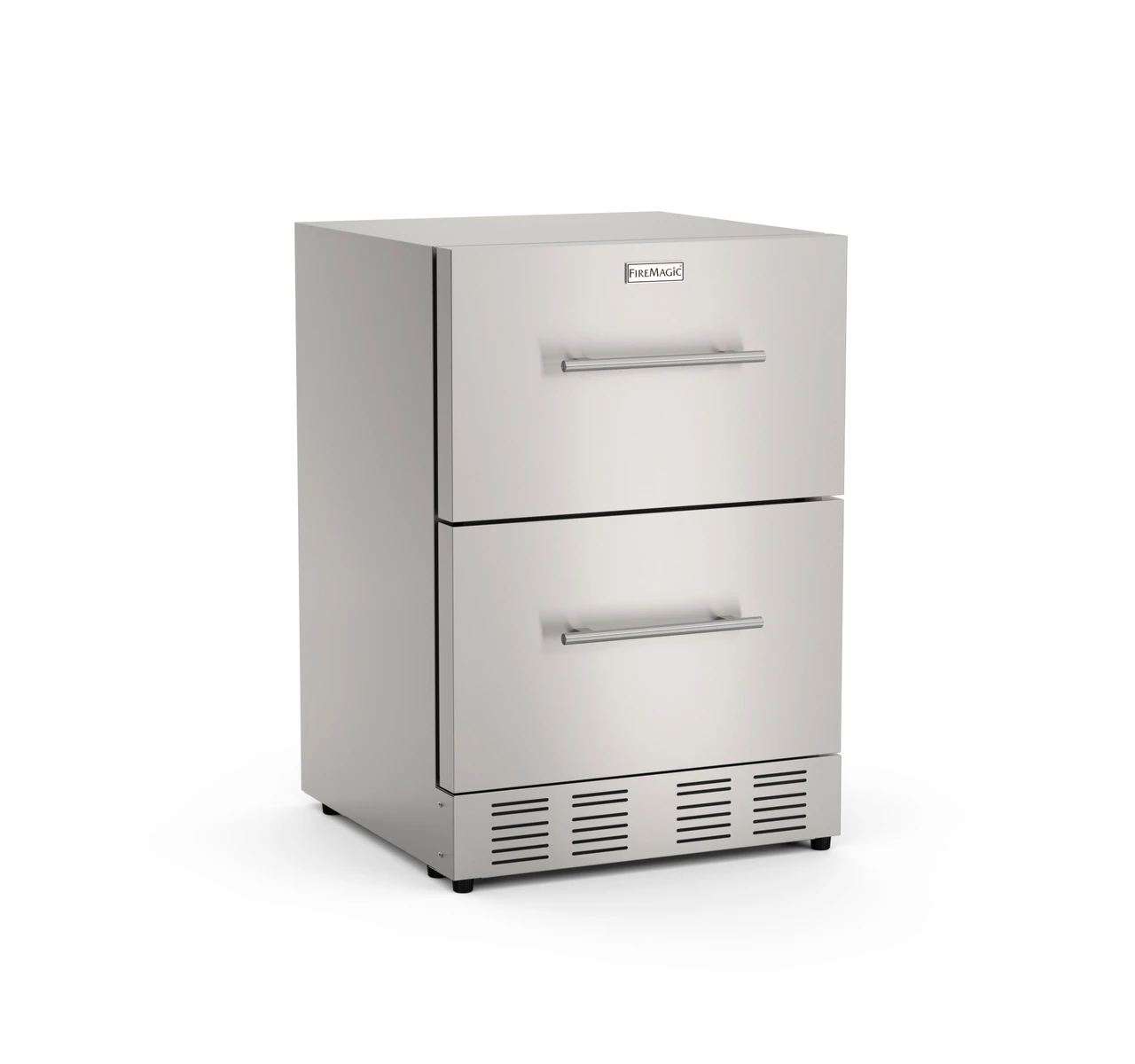

Fire Magic 24-REF-DD Double Drawer Outdoor Refrigerator
Keep beverages and ingredients close to your outdoor cooking area in two stainless-steel drawers. Storage dividers organize the contents; interior lighting and a digital temperature display make access convenient.
Specifications
- Capacity: 5.3 cu. ft.; temperature range: 34–50°F.
- Rated supply: 115V, 60Hz, 0.8A maximum; 120W maximum.
- Maximum unit dimensions: 23-1/2 W × 23 D × 34-1/2 H inches; open-drawer depth: 38-1/2 inches.
- Net weight: 109.3 lb; gross shipping weight: 127.9 lb.
Installation requirements
Provide a grounded, weatherproof-covered 120VAC GFCI receptacle on a minimum 15A supply. Keep the front grille unobstructed and allow removal for service. Required clearances: 14 inches from heat sources, 3 inches behind and 2 inches at each side. Follow the manual’s Figure 6-2 for enclosure dimensions; front opening and internal clearance widths differ. Do not use extension cords.
Included and optional
Refrigerator with drawer dividers, handles, lighting and controls. Optional trim kit 3822 is sold separately. Food and beverages pictured are not included.
Care and warranty
Follow the manual’s cleaning and winterization instructions. One-year electric-accessory warranty, subject to manufacturer terms. Installation must follow manufacturer documentation and applicable codes.
Manufacturer documents
Installation, operation and warranty manual | Official product information
