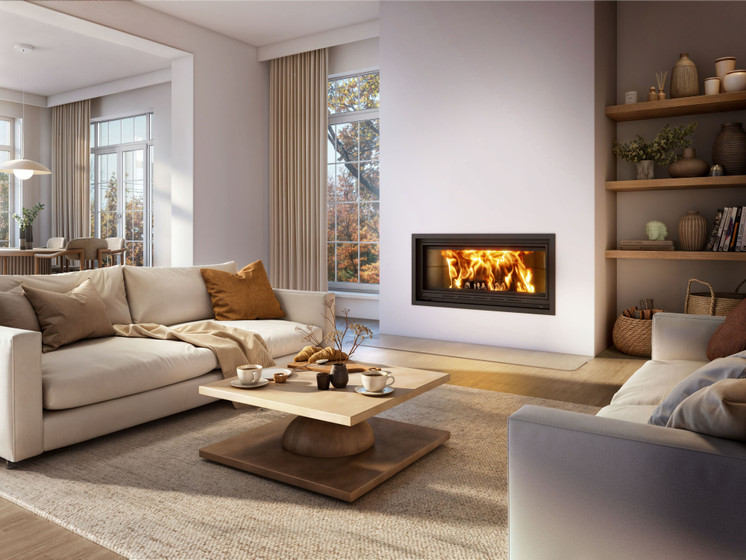

Valcourt St.-Laurent Decorative Linear Wood Fireplace FP16D
The Saint-Laurent wood fireplace stands out with its linear design and wide panoramic glass surface, offering an exceptional view of the flames. Designed to maximize the visual experience, the elongated rectangular shape of the Saint-Laurent adds a modern and elegant touch to any interior.
The highlight of this wood fireplace is its ingenious guillotine-style door and firescreen system. Designed with exceptional attention to detail and superior materials, this mechanism allows for smooth and effortless operation. The door and firescreen, equipped with a removable handle, discreetly slide under the hearth, providing easy and secure access to the fire.
Discover the additional qualities of the ambiance fireplace Valcourt Saint-Laurent
GENERAL FEATURES
| Combustion technology | Non-catalytic |
| Fuel type | Dry cordwood (16" recommended) |
| Recommended heating area-ft² | <1,000 |
| Overall firebox volume-ft³ | 6.4 |
| Burn rate | >5 kg/h (>11 lb/h) |
| High-efficiency certified appliance | Exempt |
| Maximum log length | 30" |
| Log positioning | Loading over width |
| Chimney diameter | 8" |
| Flue outlet diameter | 8" |
| Type of chimney | CAN/ULC S629, UL 103 HT (2100 °F) |
| Minimum chimney height (feet) | 15' |
| Approved for a mobile home installation | No |
| Shipping Weight | 765 lb (347 lb) |
| Door type | Guillotine, glass with steel frame |
| Glass type | Ceramic glass |
| Glass surface – dimensions (Width X Height) | 41 1/8" X 14 7/8" |
| Overall dimension (Height) | 63 3/4" |
| Overall dimension (Width) | 63 1/8" |
| Overall dimension (Depth) | 31 3/4" |
| Door opening – dimension (Height) | 15 1/2" |
| Door opening - dimension (Width) | 44 1/2" |
| Firebox – dimension (Height) | 23 1/4" |
| Firebox – dimension (Width) | 31 7/8" |
| Firebox – dimension (Depth) | 10 3/4" |
| Moulded refractory bricks | Yes |
| Cast iron andirons | Yes |
| USA standard (safety) | UL 127 |
| Canadian standard (safety) | ULC-S610 |
| Tested and listed as per applicable standards | By an accredited laboratory (CAN/USA) |
| Warranty | Limited lifetime |
APPROVED CHIMNEY TYPES
| Manufacturiers* | Brand | Type | Diameter |
|---|---|---|---|
| American Metal | HSS | AC Triple Wall | 8" (20 cm) |
| American Metal | HS | AC Triple Wall | 8" (20 cm) |
| DuraVent | Dura Tech | 1" Solid Pack | 8" (20 cm) |
| DuraVent | Dura Tech Canada DTC | 1" Solid Pack | 8" (20 cm) |
| DuraVent | DuraTech Premium | 2" Solid Pack | 8" (20 cm) |
| DuraVent | DuraPlus HTC | 2" Solid Pack | 8" (20 cm) |
| DuraVent | DuraPlus | AC Triple Wall | 8" (20 cm) |
| Metal Fab | Temp Guard | 1" Solid Pack | 8" (20 cm) |
| Olympia Chimney | Champion Chimney System | 1" Solid Pack | 8" (20 cm) |
| Olympia Chimney / SBI Division Venting | Ventis | 1" Solid Pack | 8" (20 cm) |
| SBI Venting Division | Nexvent | 1" Solid Pack | 8" (20 cm) |
| Security Chimney | S-2100 + | 2" Solid Pack | 8" (20 cm) |
| Selkirk | CF Sentinel (CF) | 2" Solid Pack | 8" (20 cm) |
| Selkirk | Super Pro 2100 (ALT) | 2" Solid Pack | 8" (20 cm) |
| Selkirk | Super Vent 2100 (JM) | 2" Solid Pack | 8" (20 cm) |
* Specific components may be required depending on the chimney manufacturer.
| Minimum clearances to combustibles* (Data expressed in inches. 1 inch = 25.4 mm) |
||
| Canada | United-States | |
| Clearance – top (measured from the platform on which the appliance is installed)** | 84" | 84" |
| Clearance – combustible side mantle to unit | 8 1/2" | 8 1/2" |
| Clearance – combustible top mantle to unit | 64 3/4" | 64 3/4" |
| Clearance – combustible side wall to unit | 24" | 24" |
| Clearance - from the shelf to the base of the fireplace | 48" | 48" |
|
* The information given on the certification label affixed to the appliance always overrides the information published in any other media (owner's manual, catalogues, flyers, magazines and/or web sites). |
||
|
** Some appliances have been tested with a low ceiling. Before setting up your unit, refer to the installation manual. |
||
