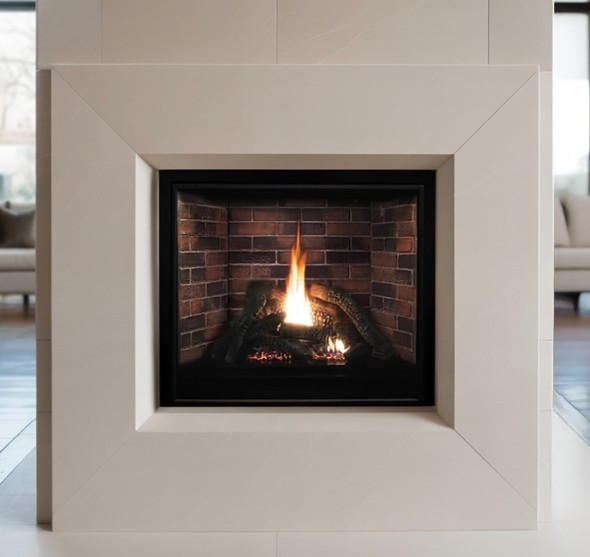

Empire Hearth 36" Tahoe Premium Clean-Face Direct-Vent Fireplace DVP36FP
Madison Premium Fireplaces include a tempered glass view window and a four-piece log set, mounted atop our legendary Slope Glaze Burner for a rich flame pattern within a taller, deeper log stack that complements the deeper fireplace (20 inches).
Liner options for Premium Models include: Aged Brick, Herringbone, Stacked Fieldstone, and Black Reflective.
Madison Premium Fireplaces are available in Millivolt, and in Green Earth Preferred Intermittent Pilot and Multi-Function Remote Control models.
Features
- Tempered Glass: 22 x 32 1/2
- Top Venting: 4" x 6 5/8" (Refer to manual for venting requirements)
- Framing 37 3/4" H x 39 3/8" W x 19 7/8" D (see manual before framing)
Includes:
- Log Set
Requires:
- Fireplace Barrier or Door Set and Frame with Barrier
Specifications
- Fuel Type: Gas
- Unit Type: Indoor
- Unit Size: 36"
- Viewing Area: 22" x 32-1/2"
- Style: Square - Traditional - Zero-Clearance
- Height: 38-1/4" - Framing 47-1/4"
- Width: 34-7/16" - Framing: 38"
- Depth: 17-1/2" - Framing: 17-5/8"
- BTU: Natural Gas: 18,000 BTU (Min) / 25,000 BTU (Max); Propane: 21,000 BTU (Min) / 27,000 BTU (Max)
- Venting Style: Direct Vent
- Vent Location: Top Vent
- Venting Size: 4" x 6 5/8"
Downloads
- Madison Clean-Face Direct-Vent Premium Brochure
- DVCC(32/36/42)BP | Madison Premium Contemporary Fireplace
- DVCC(32/36/42)BP | Madison Premium Contemporary Fireplace | French
- DVCC42BP30 | Madison Premium Contemporary Fireplace Millivolt
- DVCC(32/36) & DVCP42BP | Madison Premium Contemporary Fireplace Intermittent Pilot
- DVCP(32/36)BP(30/70) | Madison Premium Traditional Fireplace
- DVCP(32/36)BP(30/70) | Madison Premium Traditional Fireplace
- DVCP(32/36)BP(30/70)K | Madison Premium Traditional Fireplace
- DVCP(32/36)BP70KNP | Madison Premium Traditional Fireplace
- DVCP42(PP/SP) | Madison Premium Traditional Fireplace
- DVCP42(PP/SP) | Madison Premium Traditional Fireplace | French
- DVP(42/48)FP | Madison Premium Fireplace
