Overview

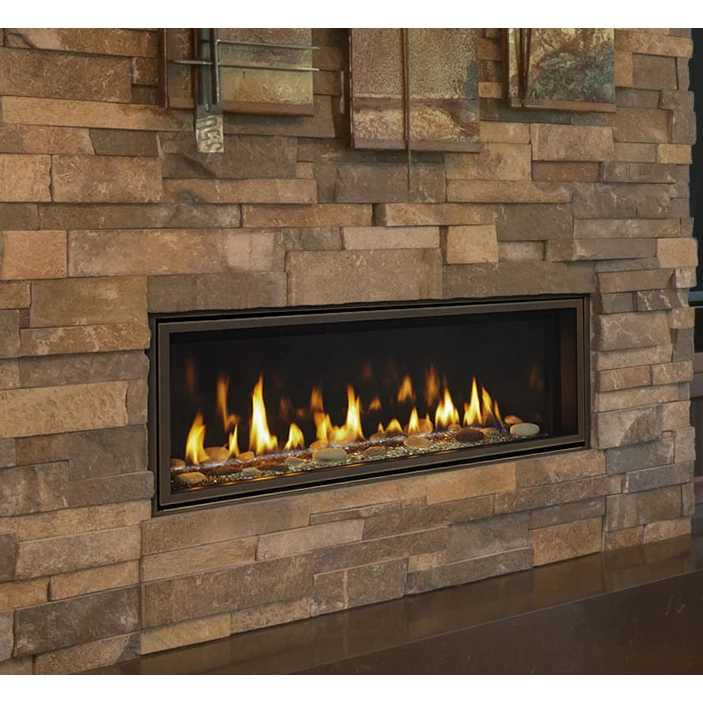

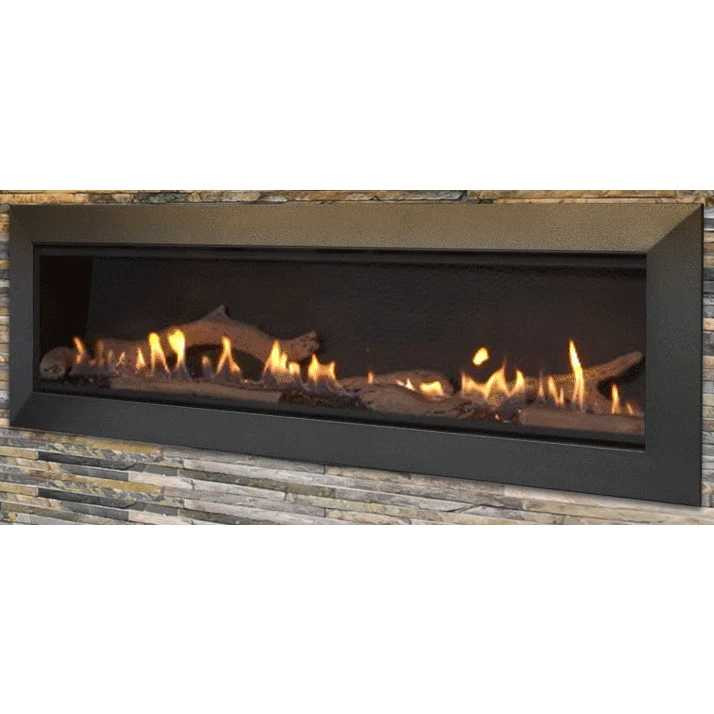

Majestic Echelon II 36" Direct Vent Natural Gas Linear Fireplace ECHEL36IN-C
Making memories starts with something special. The exclusive Echelon II series gas fireplace creates a place to relax and enjoy life. Active flames and interior options give this contemporary fireplace a unique look. Get lost in its fire and the brilliance of glass illuminated by lights. Come home to the single-sided or see-through Echelon II series gas fireplace, and enjoy the entertainment and romance you deserve.
Features
Direct Vent technology with Direct Vent fireplaces and inserts, 100% of combustion exhaust and fumes are removed from your home. These sealed fireplaces provide optimal heat and conserve energy. Learn More
IntelliFire Plus The IntelliFire ignition system is an advanced intermittent pilot (IPI) system. IntelliFire constantly monitors ignition, ensures safe functioning and conserves up to $10/month in energy costs.
IntelliFire Plus RC300 Wireless Control Designed to wirelessly control your fireplace, a large LCD screen, and simple navigation provide easy operation. The RC300 can be docked on the wall to mimic a thermostat or used as a remote. Features: pilot activation, automatic battery backup, 5-step flame height, child lock, fan speed, two additional auxiliary functions, wall docking station, timer mode, thermostat mode, room temperature readout, on/off
The fireplace safety A safety barrier screen is included as a standard equipment on all Direct Vent gas fireplaces and inserts. These screens help reduce the chance of a potential serious burn.
Limited Lifetime Warranty Majestics Limited Lifetime Warranty is the strongest and most comprehensive in the industry. It illustrates their commitment to producing the best and most reliable products availableand allows you to own your hearth appliance with confidence. Season after season, year after year.
Additional Features
- 17,500 - 30,000 Btu/Hour Input (NG) Not available for sale in Rhode
Island - 15-000 - 27,000 Btu/Hour Input (LP)
- Clear LED dimmable lights
- RC400 remote control
- Battery backup
- Ceramic glass
- Standard with bronze glass media
- IntelliFire Touch ignition system
NOTE - Not available for sale in Rhode Island
If changing media, follow required number of bags below:
Crushed Glass: 3 bags of glass
Natural stones: 2 bags of stone
Log set & stones: 1 bag of stone
- Requires 8" DVP pipe. Must have a 18" minimum vertical vent before attaching a 90° elbow to unit. See venting section of
manual.
- Approved for use with PVLP-SLP, PVI-SLP-B and PVV-SLP with PV-IPI-CK kit and power vent wire harness (order
separately). When Power Vent is installed, lights can only be operated on high. See venting section of manual.
Specifications
| Size: | 36" |
|---|---|
| Appliance Width: | 46-3/16" |
| Appliance Height: | 41-3/4" |
| Appliance Depth1: | 17-1/8" |
| Appliance Rear Width: | 46-3/16" |
| Framing Front Width: | 48-1/4" |
| Framing Back Width: | 48-1/4" |
| Fuel Type: | Natural gas or liquid propane by conversion |
| BTU/hr Input: | 30,000 (NG); 27,000 (LP) |
| Heating Capacity2: | Up to 700 sq ft |
| Viewing Area: | 35-1/2 x 12-1/2" |
