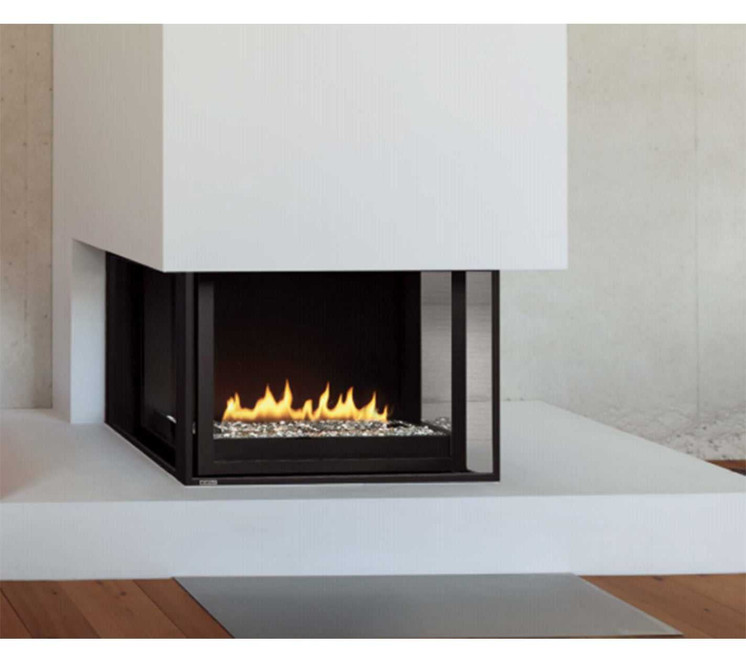

DRSQ38NI-2 is the natural-gas Full Load DelRay Square fireplace. Its universal burner supports approved traditional or contemporary presentations. This exact model has a maximum natural-gas input of 24,000 BTU/hr and a manufacturer-listed P.4.1-15 efficiency of 65%. The Basic and Full Load versions have different included controls and must not be treated as identical packages.
Full Load SIT electronic ignition with multifunction remote, remote flame adjustment, variable-speed fans, lighting and battery backup. The concealed universal burner and protective screen are part of the appliance. The approved log or contemporary-media arrangement must be selected and installed before operation.
| Manufacturer / model | Montigo DRSQ38NI-2 |
|---|---|
| Appliance type | Indoor, single-sided direct-vent gas fireplace |
| Factory fuel | Natural gas |
| Maximum natural-gas input | 24,000 BTU/hr |
| P.4.1-15 efficiency, natural gas | 65% |
| Control package | Full Load electronic ignition |
| Standard wall framing | 40 3/16 inches wide × 44 7/16 inches high × 18 inches deep; see manual for header, vent, shelf and chase requirements |
| Viewing opening | 33 11/16 inches wide × 22 7/8 inches high |
| Direct-vent size | 5-inch inner × 8-inch outer; 4/7 reduction only in the permitted configuration |
| Electrical supply shown in wiring diagram | 120 VAC, 60 Hz, 6 A; installation and grounding per the manufacturer wiring instructions |
Provide the correct gas supply, electrical connection, approved direct-vent route and termination, required protective screen, and compliant framing and finishing. Venting is required; a universal assortment of pipe is not a complete installation plan. The installer must select the exact permitted pipe system, elbows, firestops, shields and termination for the planned route.
Choose only the approved traditional logs or contemporary media arrangements and model-specific liners described in the manual. For the documented DRSQ38 firestone arrangement, the manual specifies 4.5 pounds and one layer over the burner. Do not operate with no media or an incorrect quantity. Different decorative arrangements follow their own illustrated layouts.
Heat-management and trim accessories are installation-specific options. Their use changes the applicable framing, finishing or fan instructions only where the manual explicitly permits it. A natural-gas appliance does not need a fuel-conversion kit unless it is being converted to propane. For that conversion, use GCA021 for DRSQ38NI-2 and a qualified gas fitter; never substitute another model's kit.
Top- and rear-vent arrangements have different diagrams and clearances. Follow the DRSQ38 diagrams, not the DRSQ34 diagrams. Maintain all clearances to combustibles and service access. Vinyl and other heat-sensitive flooring may require the raised-appliance or noncombustible-hearth arrangements illustrated by the manufacturer. Have the installer confirm the exact appliance and wall finish before building the enclosure.
A qualified professional should inspect and service the appliance at least annually. Reinstall the safety screen after service and allow the glass to cool before cleaning. Installation must follow the manufacturer documentation and applicable codes.
DRSQ38NI-2 family installation, operation and maintenance manual includes the exact model table, dimensions, framing, venting charts, electrical diagrams, media layouts, controls and warranty. Montigo current manual index.
