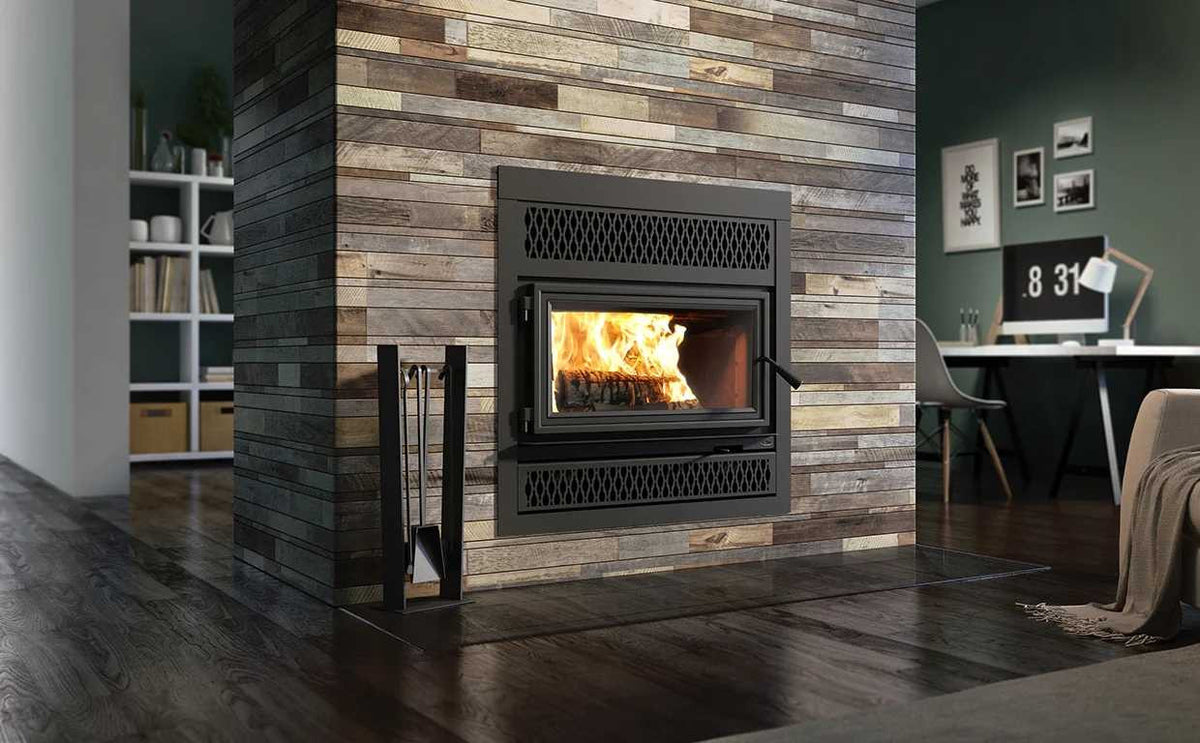

Valcourt Lafayette II Square High Efficiency Wood Fireplace FP10RS

Overview

Like the great French general, the Valcourt team has been able to use its tactical skills to upgrade this non-catalytic unit, so that it perfectly combines the new heating technology with all its elegance.

Customize your fireplace: five faceplate louvers as well as black or brushed nickel door overlays are available to enhance your décor. In addition to offering a distinctive look, the appliance follows the most restrictive EPA regulations, making it the fireplace of choice for those who want to use wood as a renewable and clean source of heat.

Specifications

• Fuel type: Dry cordwood (16" recommended)
• Recommended heating area: 750 - 2,200 sq. ft.
• Overall firebox volume: 2.5 cu. ft.
• EPA loading volume: 1.94 cu. ft.
• Maximum burn time: 8 h
• Maximum heat output-dry cordwood: 80,000 BTU/h
• Overall heat output rate < : 12,700 BTU/h to 60,700 BTU/h
• Average overall efficiency (dry cordwood): 64% (HHV) or 68% (LHV)
• Optimum efficiency: 70%
• Optimum heat transfer efficiency: 68%
• Average particulate emissions rate: 1.2 g/h
• Average CO: 98 g/h
• Overall dimension (Height): 40 5/8"
• Overall dimension (Width): 36 3/4"
• Overall dimension (Depth): 28 5/8"

Manuals

• Install & Owner's Manual
• Fireplace Dimensions
• Quick Reference Install Guide
