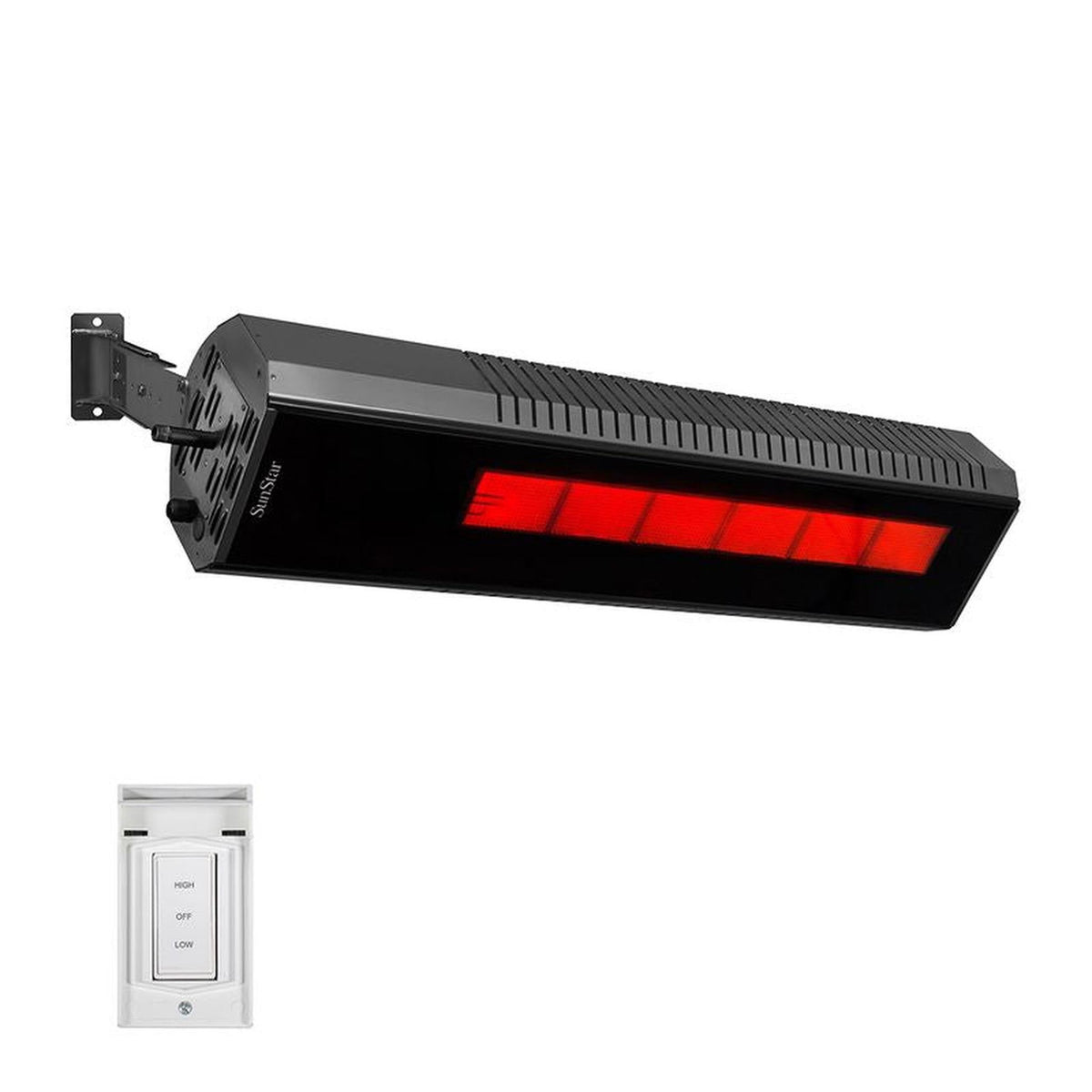

SunStar SGL35-N7 Glass Radiant Patio Heater – Natural Gas

SGL35-N7 is a natural gas radiant patio heater with black housing.

• 35,000 BTU/hr high input and 24,000 BTU/hr low input; natural gas model.
• black housing.
• Ceramic glass radiant heating with direct spark ignition.
• Electrical supply: 120V AC, 60 Hz, single phase, 0.4A. Gas connection: 1/2-inch NPT male.
• Outdoor residential and commercial use. Indoor use is limited to approved commercial/industrial applications; not for indoor residential dwellings.
• N7/L7 configuration has a high/low gas valve. External control selection is separate from the heater.
• Heat shield and mounting hardware are separate accessories unless specified in the purchased kit.
• Minimum clearances depend on mounting angle, heat shield and indoor/outdoor use. Use the SGL35 diagrams in Section 4 of the linked current installation manual.
• Angled mounting, shield-equipped installations and indoor installations have different clearances. Follow the corresponding installation-manual diagrams.
• Hanging centers: 48 inches. This is mounting spacing, not overall heater length.
• Body cross-section: 9.6 inches high by 11.8 inches. See the dimensional drawing for installation.
• Shipping weight: 55 lb. Source carton dimensions: 15" X 16" X 57".

Downloads

• Brochure / specification sheet
• Installation, owner instructions and warranty
