Monessen

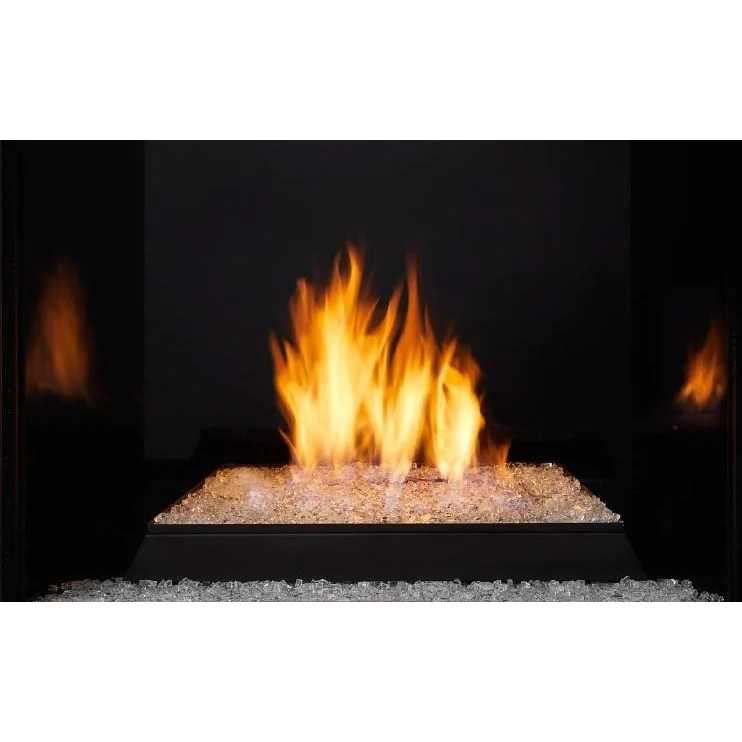

Monessen Lyric 30" Propane Burner LYR30PV

SKU / Model: LYR30PV

Ask a question
In Stock & Ready to Ship
Quick Processing, Fast Delivery

$1,059.00

Monessen Lyric 30" Propane Burner LYR30PV

Ignition & Controls

Millivolt — included. Millivolt uses a standing pilot and a low-voltage control circuit to operate the burner. Use only a remote or wall control approved for this exact model.

Included media: 3 bags of Onyx glass come with this burner. Media Options are optional alternatives or replacement glass; no additional glass purchase is needed for the standard burner package.

Monessen Lyric 30" Contemporary Gas Burner LYR30PV

The new Lyric vent free contemporary burner with fire glass media creates a stunning modern style aesthetic while still delivering all the heat and efficiency expected from a Monessen vent free gas product.

Features

  • Auto-spark ignition
  • Standard Onyx fire glass
  • Up to 36,000 BTUs of super-efficient heat
  • Remote ready
  • Contemporary burner with multi-peak flame and shimmering, elegant ember bed
  • Three bags of Onyx fire glass media standard with burner
  • Dual rated for vent-free and vented applications(Vented Applications Require Damper Clamps: C-CLAMP)
  • CSA design certified

Specifications

Model LYR30PV
Fuel Propane
Ignition Millivolt
Maximum input 36,000 BTU/hr
Minimum input 28,000 BTU/hr
Included Onyx glass 3 bags
Figure 2.1 front dimension (A) 34 inches
Figure 2.1 depth dimension (B) 11 inches
Figure 2.1 rear dimension (C) 24 inches
Figure 2.1 height dimension (D) 13 inches
Installation dimensions Figure 2.1 is the manufacturer engine-dimension diagram. Follow all additional fireplace-opening and combustible-clearance requirements in the installation manual.

Downloads

Lyric Installation and Owner Manual
