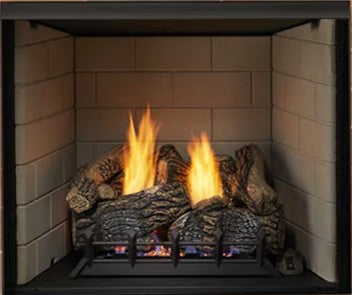

Monessen Exacta 32" Vent-Free Firebox BUF32

Ignition & Controls

Ignition depends on the burner. This is a firebox enclosure. Fuel type, ignition and compatible controls are determined by the separately selected, approved burner and log set.

Overview

Combined with a Monessen vent-free log set, the Exacta firebox supplies warmth and ambiance practically anywhere.

Includes:

• Circulating firebox with radiant clean face
• Features mesh screens with hide-away screen pockets, hood, and junction box
• Monessen exclusive two-piece hearth for easy access without removing log set

NOTE: Log sets are not included

UL listed to CSA/ANSI-Z21.91:20

Features

• Clean, louver-less design
• Screens tuck away into hidden pockets to reveal expansive views
• Available with Herringbone or Traditional stacked concrete interior panels, or no interior panels at all
• Deep box and wide opening supply generous room for the log set of your choice
• Angled firebox and uniquely engineered air channels efficiently move more heat into room

Required installation components

This BUF32 is a firebox enclosure, not a complete gas heater. A separately purchased, listed unvented gas log heater is needed for operation. Maximum permitted heater input is 40,000 BTU/hr; its minimum enclosure dimensions must fit this firebox. Do not burn wood. Install the supplied hood without modifying it or substituting the heater hood.

Optional accessories

The AKD outside-air kit, ID4 or UD4 duct and GFK-160VF blower are optional. Follow the selected heater instructions as well as the firebox installation manual and applicable codes.
