Monessen

Monessen Natural Blaze ST NG Burner NBST27NV-C

SKU / Model: NBST27NV-C

Ask a question
In Stock & Ready to Ship
Quick Processing, Fast Delivery

$1,219.00

Monessen Natural Blaze ST NG Burner NBST27NV-C

Ignition & Controls

Millivolt — included. Millivolt uses a standing pilot and a low-voltage control circuit to operate the burner. Use only a remote or wall control approved for this exact model.

Overview

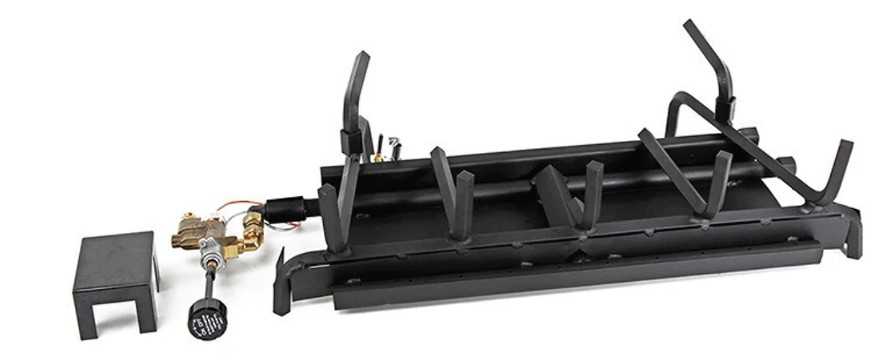

Monessen 27-Inch Natural Blaze See-Through Natural Gas / Millivolt Ignition Burner NBST27NV-C

The NBST27NV-C is a 27-inch Natural Blaze See-Through burner for natural gas with millivolt ignition. Pair it with one of the manufacturer-approved decorative log sets below. The burner and log set must be installed in an approved fireplace or vent-free firebox that meets the selected log set's opening and clearance requirements.

Includes

  • Gas log burner and grate assemblies
  • On/off switch and wire harness
  • Three bags of lava rock and one bag of rock wool
  • Flex line, pipe fittings and anchor screws

Requires

  • Select one compatible log set; never operate the burner without the approved logs installed.
  • Installation and gas connections must follow the manufacturer manual and local requirements.
  • Vent-free installation does not require a new flue system. For an approved vented installation, follow the manual damper-opening and clamp requirements.

Specifications

Model NBST27NV-C
Fuel Natural Gas
Ignition Millivolt Ignition
Nominal burner size 27 inches
Maximum input 39,000 BTU/hr
Minimum input 26,000 BTU/hr
Burner weight 36 lb
Fireplace opening Depends on the selected log set and restrictive barriers; see manual Figure3.1 and Section3F.
