Monessen

Monessen Natural Blaze NG Burner NB24NV-B

SKU / Model: NB24NV-B

Ask a question
In Stock & Ready to Ship
Quick Processing, Fast Delivery

$1,039.00

Monessen Natural Blaze NG Burner NB24NV-B

Ignition & Controls

Millivolt — included. Millivolt uses a standing pilot and a low-voltage control circuit to operate the burner. Use only a remote or wall control approved for this exact model.

Overview

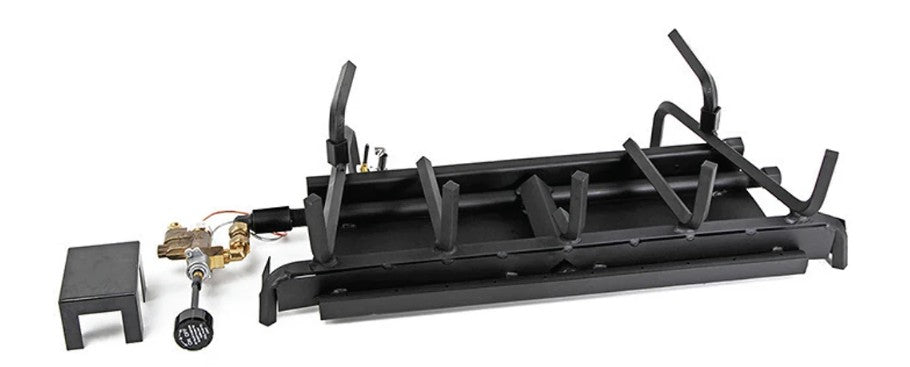

Monessen 24-Inch Natural Blaze Natural Gas / Millivolt Ignition Burner NB24NV-B

The NB24NV-B is a 24-inch Natural Blaze burner for natural gas with millivolt ignition. Pair it with one of the manufacturer-approved decorative log sets below. The burner and log set must be installed in an approved fireplace or vent-free firebox that meets the selected log set's opening and clearance requirements.

Includes

  • Gas log burner and grate assemblies
  • On/off switch and wire harness
  • Two bags of lava rock and one bag of rock wool
  • Flex line, pipe fittings and anchor screws

Requires

  • Select one compatible log set; never operate the burner without the approved logs installed.
  • Installation and gas connections must follow the manufacturer manual and local requirements.
  • Vent-free installation does not require a new flue system. For an approved vented installation, follow the manual damper-opening and clamp requirements.

Specifications

Model NB24NV-B
Fuel Natural Gas
Ignition Millivolt Ignition
Nominal burner size 24 inches
Maximum input 37,000 BTU/hr
Minimum input 26,000 BTU/hr
Burner weight 35 lb
Fireplace opening Depends on the selected log set and restrictive barriers; see manual Figure3.1 and Section3F.
