Majestic Pioneer III Rectangular Door Wood Burning Fireplace PIONEER-III-REC

Product overview

Majestic Pioneer III wood-burning fireplace with a classic black rectangular cast iron door. Select the matching decorative front separately.

Included equipment

Smart Burn Technology, 400 CFM fan system, fan-air grille and duct boot, welded steel firebox, CAK4A, outside-air hood and attic insulation shield.

Specifications

• Model: PIONEER-III-REC
• Fuel: Wood
• Firebox volume: 4.1 cubic feet
• Peak heat output: up to 85,175 BTU/hour
• Source shipping weight: 680 lb
• Certified to 2020 EPA emissions standards

Components and installation

A matching front and the separate 6-inch fan-air duct must be supplied to complete the appliance. The outside-air connection also needs separate 6-inch duct. Both air systems require UL181 Class 0 or 1 rigid or flexible duct; fan-air return and outside-air supply are separate routes. Advanced Technology Product training is needed before shipment.

Venting

Use SL300 chimney or an approved 8-inch DuraPlus system with its base plate and DV-6DP-IS attic insulation shield. Venting Options below provide the SL300 route and remain optional for ordering. Complete the installation to the exact-model manual. Heat-Zone-WD-C uses separate 6-inch heat-distribution ducting.

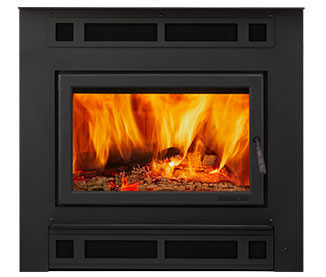

Manufacturer illustration shows a decorative front installed; the front and other installation accessories are sold separately.
