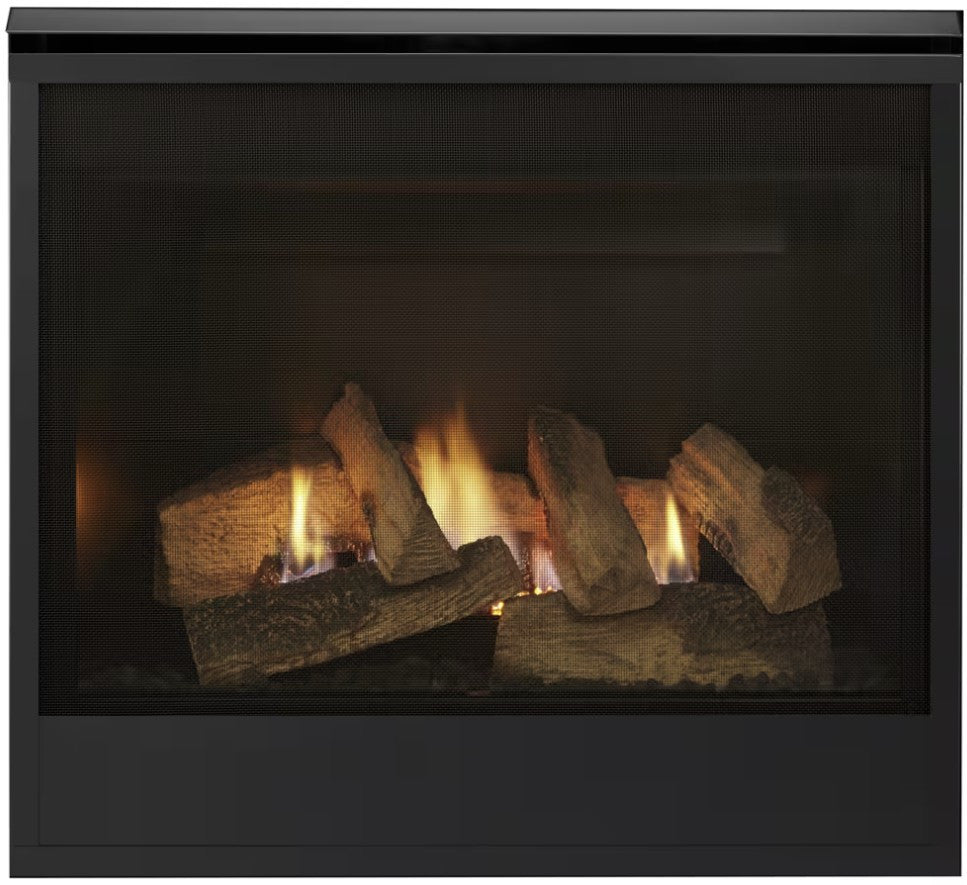

Majestic Products 32" Mercury 32" Traditional Direct Vent Natural Gas / Electronic Ignition Fireplace MERC32IN
SKU / Model: MERC32IN
$2,209.00
Product overview
Majestic MERC32IN is a slim traditional natural-gas direct-vent fireplace with an included log display and protective screen front. Propane operation requires the approved conversion.
Key features
- Top or rear vent routing with the approved vent system.
- Traditional log display and tempered fixed glass.
- Battery-backup provision.
Included components
Included: six ceramic-fiber logs, glowing embers, tempered glass, full firescreen front and hood, junction box, 12-foot control wire and gas flex connector.
Required components
Approved venting and termination, correct fuel supply, electrical connection and compliant framing and finishing are required. Keep the supplied protective screen and fixed glass installed.
Optional accessories
Compatible controls and fans are optional. A power-vent configuration requires its specifically approved control, harness and installation kit; consult the appliance manual before selecting that package.
Specifications
| Model / MPN | MERC32IN |
|---|---|
| Natural-gas input | 13,500–19,100 BTU/hr |
| Approved propane-converted input | 14,500–19,100 BTU/hr |
| Minimum rough opening (W × H × D) | 37 × 34-3/4 × 16-1/4 inches |
| Rear vent allowance | Add 12 inches to opening depth for rear venting with one 90-degree elbow |
| Minimum side and rear clearance | 1/2 inch |
| Front clearance | 36 inches |
| Viewing Area | 27-3/16 x 18-1/16" |
Installation and safety notes
Adjust framing for interior sheathing and follow the manual for ceiling, mantel, hearth and vent clearances. The supplied screen front is part of the appliance; optional controls and fans are additional choices. Use the approved SLP/SLP-Flex route for top venting or DVP route for rear venting, following the exact vent tables. The installation requires gas and electrical connections. MERC32IN is the natural-gas model; propane operation requires the approved conversion rather than a change to the model label. Installation and service must be performed by qualified personnel. This appliance provides supplemental heat.
Installation and service must follow the manufacturer instructions and applicable codes.
Warranty summary
Review the model owner manual for component-specific warranty coverage, conditions and exclusions.
