Majestic Castlewood 50 Outdoor Wood Burning Fireplace ODCASTLEWD-50

Product overview

Majestic Castlewood 50 Outdoor Wood Burning Fireplace ODCASTLEWD-50. Ships without refractory. Select one exact-model refractory set, including hearth, left, right and back panels. Includes a steel grate, dual gas knockouts and stainless steel safety firescreen. An outside air kit is included; its separate flex duct must be selected. The opening measures 50 by 38 inches. Advanced Product Technology training is needed before shipment.

Specifications

• Fuel: Wood
• Manufacturer model: ODCASTLEWD-50
• Appliance weight: 385 lb (current manufacturer installation manual)

Components and accessories

The refractory selection is necessary to complete this appliance. Optional gas-log operation requires a complete matching burner and log set: match the tier and size, then select the correct burner fuel. A log set alone is not an operating gas system.

Venting and installation

Use 14-inch Dura-Vent DuraChimney II with 14DCA-IS attic insulation shield, 14DCA-RRS roof radiation shields and 14DCA-CTC chase top collar. Both outside-air connections must be installed using 6-inch UL181 Class 0 or 1 duct. ID6 and UD6 each supply two 42-inch sections; order sufficient length for both sides. Not approved in Canada. Drainage pan is needed on wood surfaces. Provide the manual-specified hearth extension and non-combustible finish.

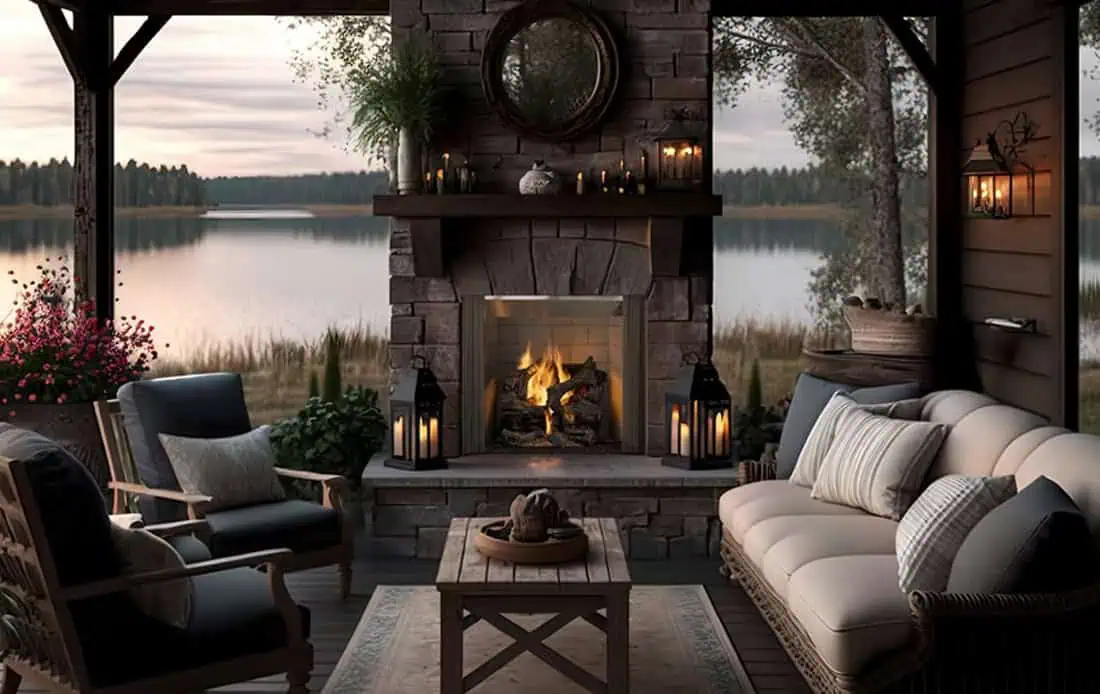

Chimney components are sold separately. Venting Options remain optional for ordering; installation must follow the exact-model manual. The manufacturer family image may show optional accessories, finishes or a different door configuration.
