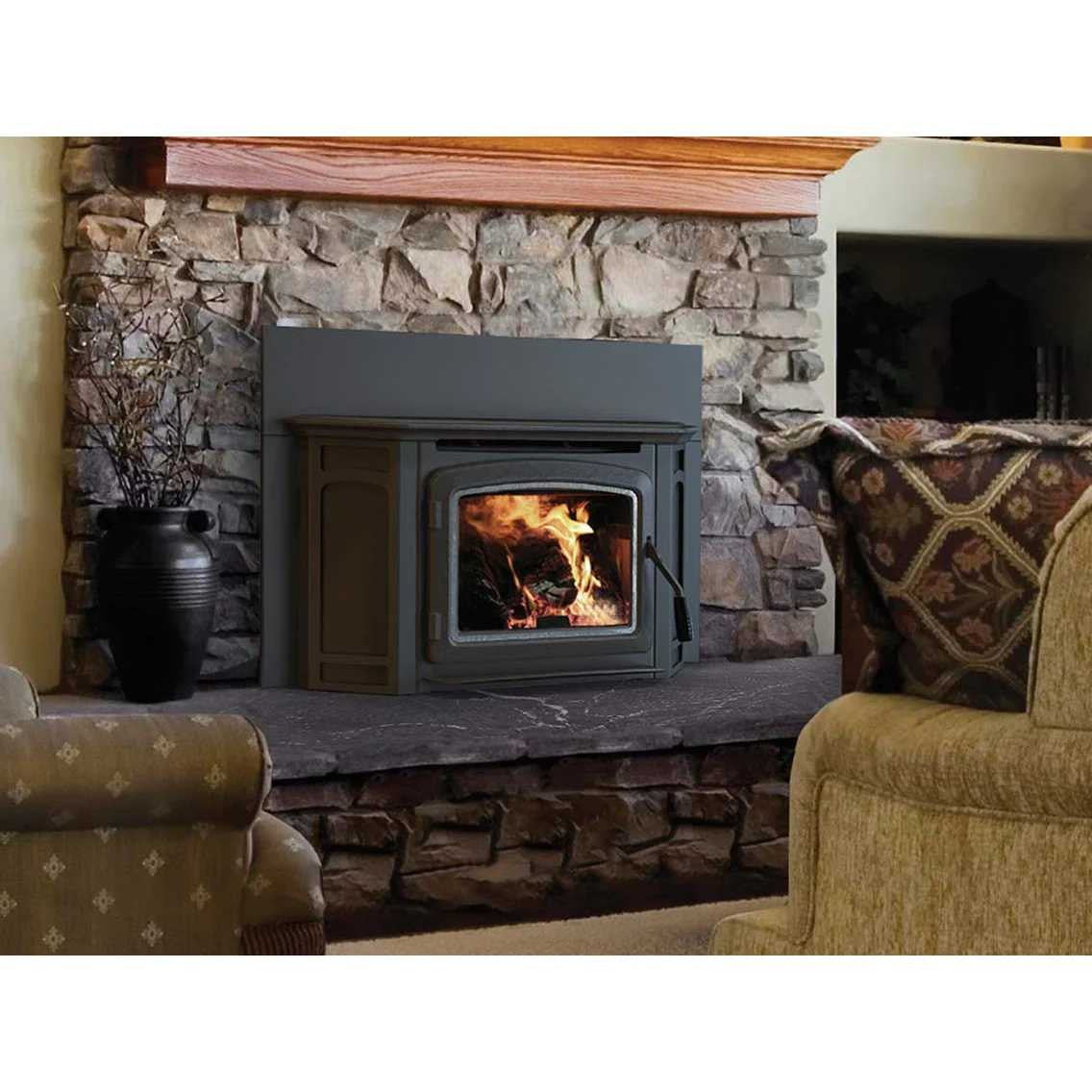

IronStrike Montlake 230 Wood Burning Fireplace Insert ML230GL

As elegant as they are efficient, the Lodge Collection wood burning inserts have raised the standard for home heating with their proven, Thermal Fin Technology (TFT™) This innovative cast-iron heat exchanger delivers the perfect amount of heat. Expansive, durable ceramic glass gives you unobstructed views of the fire and allows for easy heat transfer. A wide array of high-quality, versatile styling options means that Lodge Collection inserts will easily complement any décor.

Features

• Spacious 2.3 cubic foot firebox interior accepts up to 18” logs.
• 76,000 BTU’s/hour and heats up to 1,200-2,200 square feet.
• Thermal Fin heat exchanger creates 32% more surface area than a standard insert design resulting in more heat entering the room.
• Air-boost timer automatically adjusts the air intake control making startup and reloading easier.
• Tall opening provides and expansive view of the burning fire.
• Ceramic glass for extra strength and optimum heat transfer.
• Unique, integral air wash system keeps the glass clean and clear for a wide-open view of the fire.
• Precision-cut, heavy-gauge steel provides dependable, long-lasting operation.
• High-density firebrick retains heat longer, resulting in increased efficiency.
• One-touch control ensures easy operation and comfort.
• Standard 150 CFM variable speed blower quickly moves heat from the insert into your room.
• Choose from several sizes of surround panel kits to match your opening size (1-required)
• Choose between a steel or cast-iron warming top (1-required).
• Optional decorative door trim in Brushed Nickel or Nickel allow customization to your style.
• EPA-certified and Washington State-approved for clean and efficient operation.
• Limited Lifetime Warranty

Specifications

• Product Type: Wood-Burning
• BTU: 76,000
• Max Log Length: 18"
• EPA: EPA Certified
• Minimum Fireplace Width: 25"
• Minimum Fireplace Height: 21-1/2"
• Minimum Fireplace Depth: 15-1/2"
• Design Style: Lodge Collection
• Weight: 390 lbs.
• Warranty: Limited Lifetime Warranty

Manuals

• Brochure
• Installation and Operation Manual
• Specification Sheet
• Smart Sheet

Manufacturer specification details

Firebox

2.3 cubic feet; 17 W × 19 D × 12.5 H inches

Output — EPA test load

28,200 BTU/hr

Output — cord wood

76,000 BTU/hr

Emissions

1.7 g/hr, EPA crib wood

Shipping weight

390 lb

Minimum masonry opening

25 W × 21-1/2 H × 15-1/2 D inches; rear width 22-1/2 inches

Depth into fireplace

15-1/2 inches

Projection onto hearth

8-1/8 inches
