Majestic DVP Horizontal Vent Termination Kit with 90° Elbow DVP-HVTK

SKU / Model: DVP-HVTK

Ask a question
Free Fast Shipping
In-stock items are processed in 1–2 business days.

$479.00

YOUR SPECIAL OFFER IS AVAILABLE

This product qualifies for an exclusive special offer.

Complete your selections and add this product to your cart to unlock the eligible offer.

Offer eligibility and final promotional pricing are confirmed in the cart. Accessories qualify separately. Offers may change.

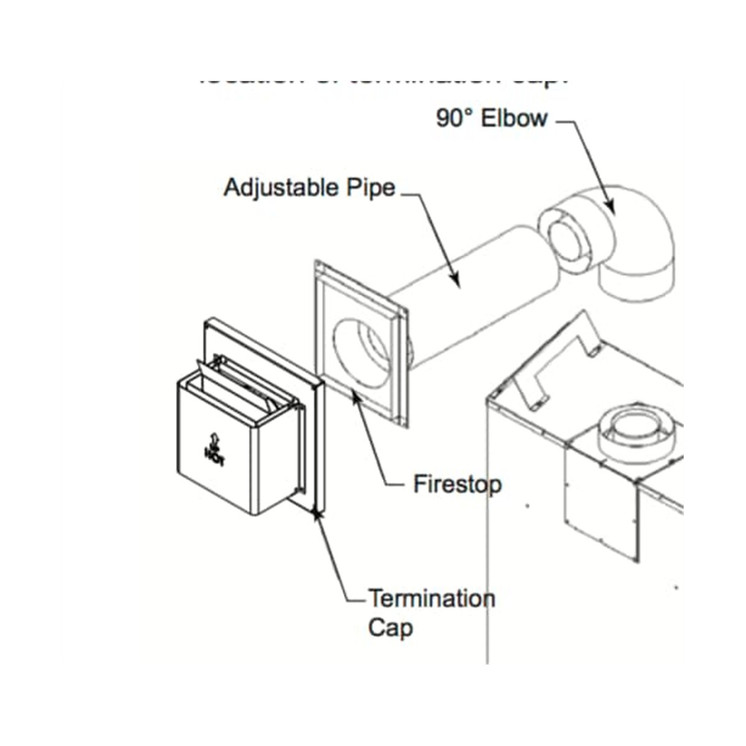

HHT Horizontal Vent Termination Kit includes adj Termination Cap, 1" firestop, 3" firestop, 90 degree elbow, 9" - 12" adj. termination pipe DVP-HVTK

Product overview

The DVP-HVTK is a 5" x 8" DVP horizontal vent termination kit. Per its installation instructions it contains a termination cap, a 1" (square) firestop, a 3" (rectangular) firestop, an adjustable pipe, a 90° elbow, eight #8 x 1" and eight #8 x 3" screws. It is a venting kit, not a fireplace.

The instructions state these kits can only be used with Vermont Castings Group direct vent fireplaces.

Specifications

Manufacturer part number DVP-HVTK
Contents (per kit instructions) Termination cap; 1" square firestop; 3" rectangular firestop; adjustable pipe; 90° elbow; 8 #8 x 1" and 8 #8 x 3" screws
Vent system DVP 5" x 8"

Installation and safety notes

Overlap slip and vent sections at least 1-1/2"; horizontal runs need 1/4" rise per foot toward the termination; the embossed arrow on the cap must point up (VCG 20307393).

Frame 10" x 10" openings for ceilings and exterior walls and 10" x 12" for interior walls (VCG 20307393 p.8).

Exact-model manuals and downloads

5" x 8" DVP Direct Vent Termination Kit Installation Instructions and Addendum 2, Vermont Castings Group P/N 20307393 Rev 1 (03/15): page 1 lists DVP-HVTK contents; installation steps follow.

Frequently asked questions — DVP-HVTK

What comes in the DVP-HVTK?

A termination cap, 1" square firestop, 3" rectangular firestop, adjustable pipe, 90° elbow and 16 screws (8 #8 x 1", 8 #8 x 3").

How is it different from the DVP-RVTK?

The HVTK uses a 90° elbow; the RVTK is a rear-vent kit using adjustable pipe without an elbow.

Which fireplaces can use it?

The kit instructions say Vermont Castings Group direct vent fireplaces only. Check your Majestic manual.

What slope do horizontal runs need?

1/4" rise per foot toward the termination; never level or downward.
