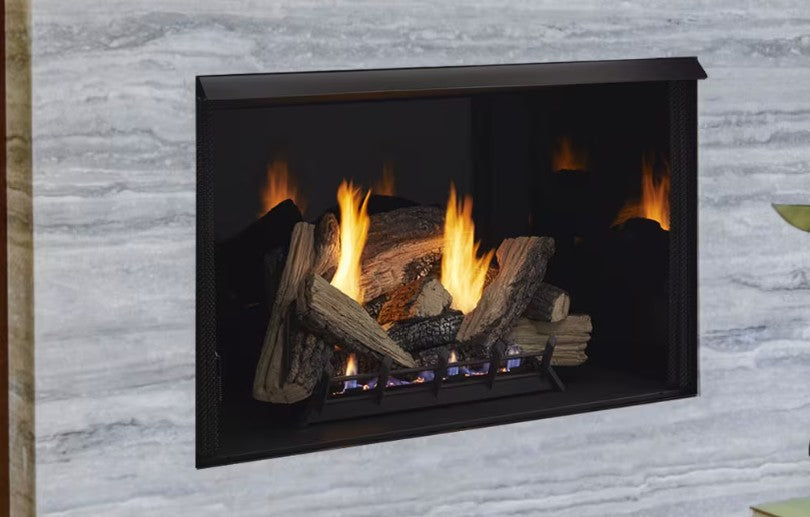

Monessen Attribute 32" Vent-Free Firebox ACUF32
SKU / Model: ACUF32-BD
$879.00
Ignition & Controls
Ignition depends on the burner. This is a firebox enclosure. Fuel type, ignition and compatible controls are determined by the separately selected, approved burner and log set.
Product overview
The Monessen Attribute ACUF32 is a 32-inch vent-free firebox enclosure for a separately selected, listed gas log heater. Its clean-face design, recessed screen pockets and reversible interior panels frame the log set without a louvered surround. The empty firebox is not a complete gas-burning appliance.
Key features
- Clean-face circulating firebox with hide-away screen pockets.
- Two-piece hearth provides access without removing the log set.
- Reversible fiber-refractory interior panels provide two finish choices.
Included components
Includes mesh screens, hood, junction box and reversible fiber-refractory panels. Burner and log set are not included.
Required components
Requires a listed gas-fired unvented decorative room heater with maximum input no greater than 40,000 BTU/hr. Its minimum enclosure dimensions must fit this firebox. Follow both the firebox and selected heater instructions. Install the supplied hood and screens correctly before operation.
Optional accessories
The manufacturer lists model-matched black-glass panels, contemporary fronts and trim kits, plus the MONAL-VF light kit, GFK-160VF blower and AKD outside-air kit. These are optional; select the exact size-specific kit. An optional accessory does not replace the required heater.
Specifications
| Model | ACUF32 |
|---|---|
| Product type | Vent-free firebox enclosure |
| Configuration | Single-sided |
| Nominal size | 32 inches |
| Unit width | 38 inches |
| Unit height | 34 inches |
| Unit depth | 20 inches |
| Rear unit width | 27-1/8 inches |
| Viewing opening | 32 x 27 inches |
| Hearth depth | 15 inches |
| Hearth front height | 25-1/2 inches |
| Hearth rear width | 20-3/8 inches |
| Hearth rear height | 22-5/8 inches |
| Maximum permitted heater input | 40,000 BTU/hr; not heat output from the empty firebox |
| Fuel and ignition | Determined by the separately selected approved heater |
| Certification | UL; CSA/ANSI Z21.91:20 |
Installation and safety notes
Do not burn wood or use an unlisted heater. Unit dimensions are not framing dimensions: follow the complete framing, mantel, hearth and clearance drawings in the installation manual. Provide gas and electrical services suitable for the selected heater and accessories. Keep air openings clear; installation and servicing must follow manufacturer instructions and applicable codes.
