Majestic Products 42" See-Thru Radiant Designer Series Wood Fireplace DSR42
SKU / Model: DSR42
$4,039.00
Product overview

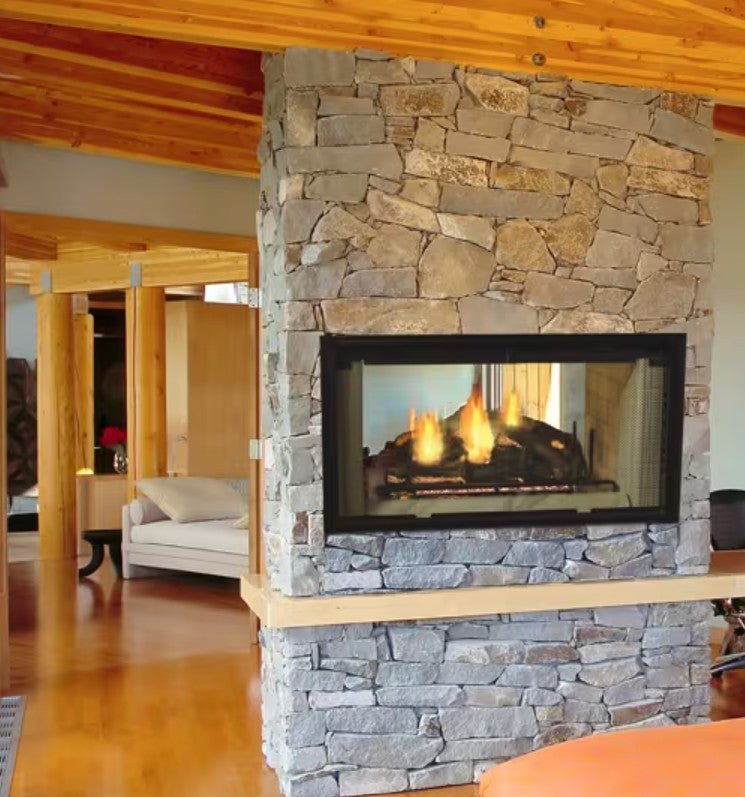

Majestic DSR42 is a see-through radiant wood-burning fireplace designed as a room divider, with a viewing opening on each side.
Key features
- Clean-face, insulated construction with traditional brick-pattern refractory.
- Powder-coated finish, damper and dual gas knockouts.
Included components
The see-through fireplace includes its refractory, firescreen, grate, outside-air inlet hood and attic insulation shield.
Required components
Installation also requires a compliant hearth extension, outside-air flex duct, approved chimney and termination cap, and noncombustible finishing materials. These installation materials are not all included with the appliance.
Optional accessories
Model-approved glass doors are optional; see-through construction does not make them a required base purchase.
Specifications
| Model / MPN | DSR42 |
|---|---|
| Fuel / configuration | Wood / see-through radiant fireplace |
| Width | 47" |
| Height | 58 7/8" |
| Depth | 28" |
| Viewing Area | 42 x 23" (Each Side) |
Installation and safety notes
The manufacturer lists SL1100 chimney components for United States installations; its SL400/SLA10 arrangement is for Canada and requires the specified Canadian components, including the chimney air kit. Minimum overall height is 14 feet for a straight chimney, 16-1/2 feet with one offset/return and 22 feet with two offset/return pairs. Maximum height is 90 feet, measured from the fireplace base. Maintain the required 2-inch airspace around the chimney, comply with support and termination requirements, and do not use offsets greater than 30 degrees.
This model is a room-divider wood-burning fireplace and is not approved for manufactured-home installation. A minimum 1/2-inch airspace must be maintained at the fireplace sides and back. Use the manufacturer framing, hearth-extension and finishing diagrams for the exact installation. Glass-door packages remain optional; the hearth and chimney requirements do not.
Installation and service must follow the manufacturer instructions and applicable codes.
Warranty summary
Review the model owner manual for component-specific warranty coverage, conditions and exclusions.
