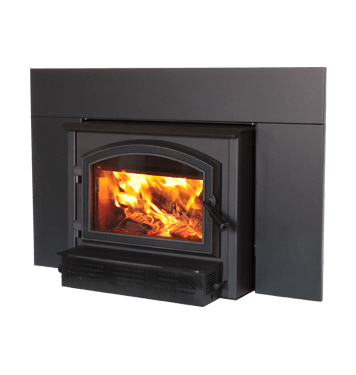

Empire Stove Archway 2300 Wood Burning Insert WB23IN

Empire Stove Archway 2300 Wood Burning Insert WB23IN

Insert with Blower, 2.4 cu.ft., Metallic Black

• 2.4 cu. ft. Firebox
• Heating Area 500 to 2,100 sq. ft.
• Maximum Heat Output 75,000 BTU/H
• Maximum Burn Time: 8 hours
• 6-inch Diameter Flue
• Maximum Log Length 20"

Heating area, maximum heat output and burn time are manufacturer ratings, not guaranteed performance in every home. Actual results depend on installation, chimney draft, wood moisture, climate and heat loss.

Required finishing components, sold separately

• Doors - Required: select one of WD2BL, WD2NB.
• Surrounds - Required: select one of WS2344BL, WS2350BL, WS2350TBL.

Base appliance price only; separately priced finishing components are not included. Accessories shown in the photograph may be sold separately.

The circulating blower is included.

Chimney liner and installation

A continuous 6-inch listed stainless-steel chimney liner is required from the insert to the top of the chimney. Select the appropriate liner kit in the configurator. The installer must verify chimney condition, liner length, listing, insulation, hearth protection and clearances against the installation manual. This appliance is for an approved masonry fireplace installation.

Installation opening

These are masonry opening measurements, not appliance or viewing-area dimensions. If a fresh-air intake is required, the manufacturer recommends adding at least 4 inches to the opening width. See manual 46112A, dated February 13, 2026, section 9.3, for the complete opening and clearance requirements.

Manufacturer documents

• Brochure
• Spec Sheet
• Manual

Follow the applicable manufacturer installation manual for chimney, clearances and installation requirements.
