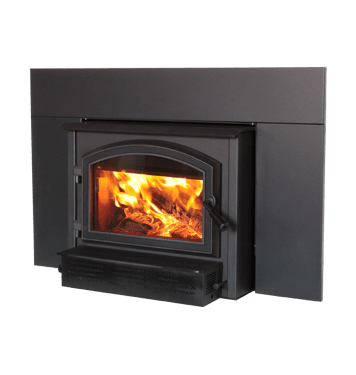

Empire Stove Archway 1700 Wood Burning Insert WB17IN

Empire Stove Archway 1700 Wood Burning Insert WB17IN

Insert with Blower, 1.9 cu.ft., Metallic Black

• 1.9 cu. ft. Firebox
• Heating Area 500 to 1,800 sq. ft.
• Maximum Heat Output 65,000 BTU/H
• Maximum Burn Time: 6 hours
• 6-inch Diameter Flue
• Maximum Log Length 18"

Heating area, maximum heat output and burn time are manufacturer ratings, not guaranteed performance in every home. Actual results depend on installation, chimney draft, wood moisture, climate and heat loss.

Required finishing components, sold separately

• Doors - Required: select one of WD1BL, WD1NB.
• Surrounds - Required: select one of WS1744BL, WS1750BL.

Base appliance price only; separately priced finishing components are not included. Accessories shown in the photograph may be sold separately.

The circulating blower is included.

Chimney liner and installation

A continuous 6-inch listed stainless-steel chimney liner is required from the insert to the top of the chimney. Select the appropriate liner kit in the configurator. The installer must verify chimney condition, liner length, listing, insulation, hearth protection and clearances against the installation manual. This appliance is for an approved masonry fireplace installation.

Manufacturer documents

• Brochure
• Spec Sheet
• Manual Part 1
• Manual Part 2

Follow the applicable manufacturer installation manual for chimney, clearances and installation requirements.
