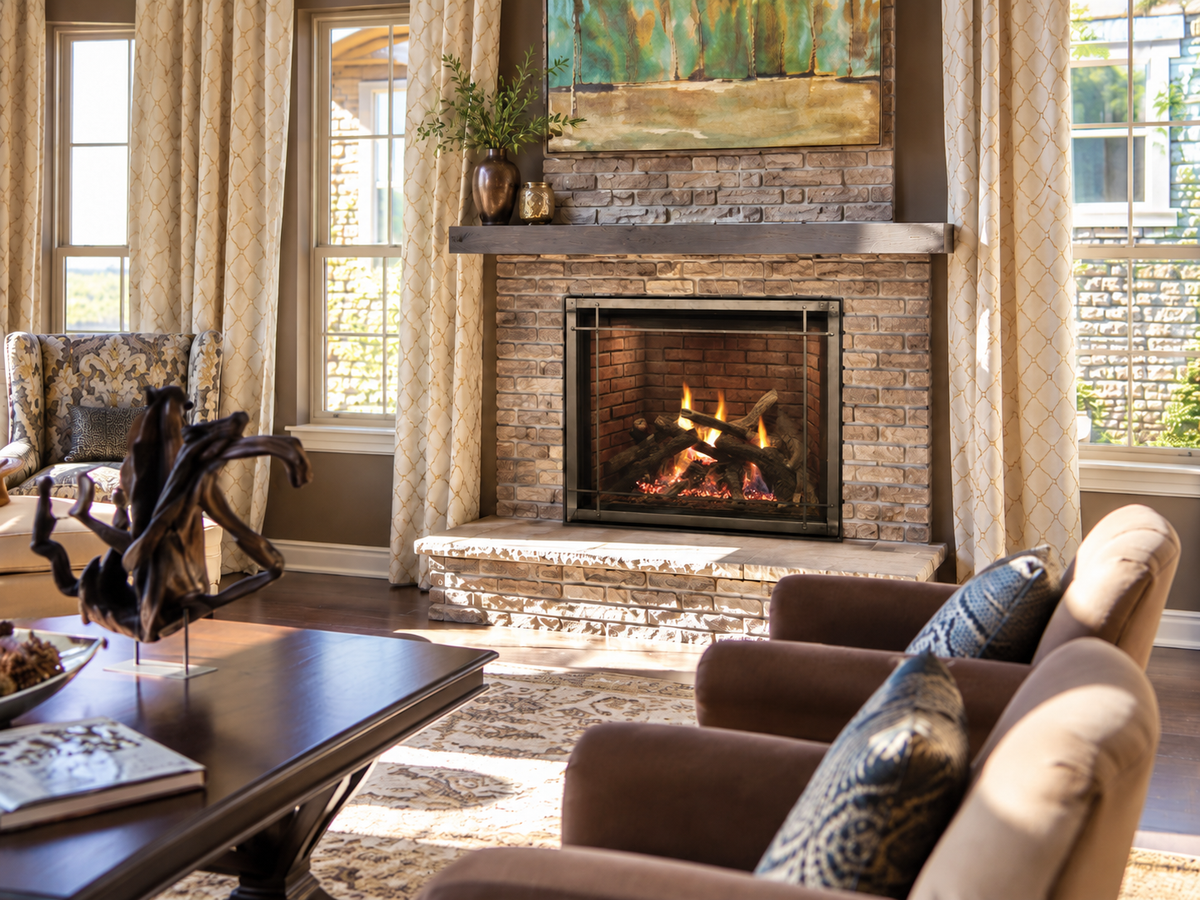

Empire Rushmore 36" Direct-Vent Fireplace DVCT36CBP95
SKU / Model: DVCT36CBP95
$6,109.00
Product overview
Empire DVCT36CBP95 is a 36-inch single-sided clean-face direct-vent gas fireplace with TruFlame dual-burner technology. Choose the exact factory natural-gas or propane model and model-matched interior components.
Key features
Ceramic glass and a traditional log-fire presentation. The multifunction control operates variable flame height, independent rear-burner switching and accent-light dimming as described in the model’s owner instructions.
Renegade Clean-Face Direct-Vent Fireplaces with TruFlame TechnologyIncluded components
Fine-mesh protective barrier, noncombustible board and multifunction remote control. Install the required protective components before operation.
Required components
DVCT36CBP95 requires a compatible liner and log set purchased and installed before operation. Use the matching 36-inch log and liner families listed for this model. Optional decorative fronts, frames and insets do not replace those required internal components. A decorative inset requires its compatible front assembly.
Optional accessories
Decorative frames, fronts, andirons and compatible insets are optional. An inset requires its matching front; it does not replace required logs or liner.
FBB21 automatic variable-speed twin blower is optional. Its compatible remote control function does not mean a blower is included.
Specifications
| Model | DVCT36CBP95 |
|---|---|
| Location | Indoor |
| Configuration | Single-sided |
| Ignition | Intermittent pilot |
| Appliance width × height × depth | 45 × 40-3/4 × 22-1/8 inches; height excludes standoffs |
| Maximum input, both burners; natural gas / propane | 40,000 / 40,000 BTU/h |
| Minimum input, both burners; natural gas / propane | 26,000 / 33,000 BTU/h |
| Minimum input, front burner only; natural gas / propane | 11,000 / 13,000 BTU/h |
| Gas inlet | 1/2-inch NPT |
| Venting | 5 × 8 direct vent, top outlet |
Installation and safety notes
The appliance uses an approved 5 × 8 direct-vent system to draw combustion air from outside and discharge exhaust outdoors. Vent route, termination, framing, clearances and any conversion-kit selection must follow the exact model manual. The dimensions above describe the appliance and are not rough-opening dimensions.
Manuals and downloads
Manufacturer installation manual for DVCT36CBP95, page 8, provides these fuel-specific input ratings, dimensions and component requirements. Installation and service must follow the complete manufacturer documentation and applicable codes.
