Empire Hearth 24" 7 Piece Tree House Refractory Sand Pan Log Set LTH724

Empire LTH724 24-Inch Treehouse 7 Refractory Vented Gas Logs

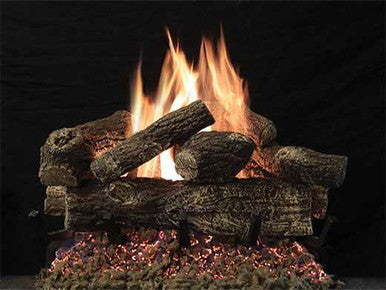

The LTH724 Treehouse set provides seven refractory decorative logs for a 24-inch vented gas-burner installation. The base logs have mandatory placement positions; the manufacturer illustrates the complete arrangement in the model-specific installation guide.

Specifications and package

• Exact model: LTH724.
• Nominal size: 24 inches.
• Material: refractory.
• Included: seven logs, identified A through G in the manual.
• Application: vented decorative gas installation.
• Burner, gas controls and fireplace are sold separately.

Required burner and fireplace

The log manual identifies the corresponding-size BXL, BXM and BXR burner families. The current single/double vented-burner manual also lists LTH724 for VSP24N, VDP24N and OVDP24N burners. Match the exact burner model and size before ordering; these logs are not a universal vent-free replacement.

Install in an approved existing solid-fuel fireplace of noncombustible construction with a working flue and suitable gas connection. A damper clamp must prevent accidental damper closure. Burner fuel, heat input, control type, fireplace dimensions and all clearances must be taken from the chosen burner’s instructions.

Placement and installation

Position base Logs A and B exactly as illustrated; this step is mandatory. The manufacturer permits arranging the remaining logs after the base logs are correctly placed and supplies a recommended complete layout. Follow the exact log and burner instructions, preserve the specified combustion path, and have installation and servicing performed by a qualified professional in accordance with applicable codes.

Manufacturer documents and service

Treehouse 7 installation instructions, pages 1–3, identify the models, application and individual log placement. Single/double vented-burner installation and owner manual 45982-1-0824, page 7, confirms the matching VSP/VDP/OVDP burner selection. Retain purchase documentation and contact the selling dealer for warranty/service support as directed on page 4 of the log manual.

Availability

Supplier-order item, subject to supplier availability. Contact United Fireplaces to confirm current availability and delivery timing. Availability to order does not indicate on-hand stock.
