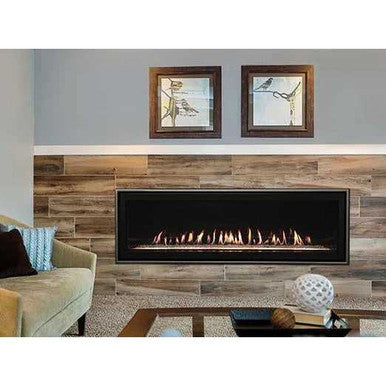

Empire Hearth 60" Boulevard Direct Vent Linear Fireplace DVLL60BP90
SKU / Model: DVLL60BP90P
$6,989.00
Unlock an exclusive offer on this product.
Product overview
Empire Boulevard DVLL60BP90 is a 60-inch single-sided linear direct-vent gas fireplace. Electronic ignition and a multifunction remote control operate the burner, with model-specific accent lighting and optional blower control.
Key features
Wide ceramic-glass flame presentation with an approved crushed-glass bed and a separately selected required liner.
View manufacturer product video
View manufacturer product video
Included components
Multifunction remote, ceramic glass, protective barrier screen, factory accent lighting and noncombustible board for the specified finishing areas.
Required components
A liner must be installed before operation: choose the DVP60LPZ bronze Ridgeback liner or DVP60LKR black porcelain liner. Retain and install the required protective barrier. Crushed glass must follow the manufacturer's placement diagram: use a single layer to mask the burner screen, approximately one square foot, with no more than seven square feet of approved 1/4-inch crushed glass in total. Keep glass out of the recessed pilot, sensor and ignitor area.
Optional accessories
Optional LS60THF logs and rocks, decorative fronts and trim, and the FBB20 dual blower do not replace the required liner or correct media placement.
Specifications
| Natural-gas input | 31,000–46,000 BTU/hr |
|---|---|
| Propane input | 32,500–42,500 BTU/hr |
| Glass dimensions | 60 inches wide × 15 inches high |
| Framing opening | 79 5/8 inches wide × 49 3/8 inches high × 21 1/2 inches deep; verify finishing method and the actual appliance before framing |
| Venting | 5-inch inner × 8-inch outer direct vent; use a listed system and the permitted routing, rise, run and termination in the manual |
| Electrical supply | 120 V, 60 Hz, 1 A; right-side entrance |
| Gas connection | 1/2-inch NPT; right-side entrance |
Installation and safety notes
The installation manual provides different height and depth measurements in its specification table and dimension drawing. Confirm the dimension reference and exact supplied revision with the installer before construction. Follow the full clearance and mantel diagrams, noncombustible-board instructions, vent charts and applicable codes; the framing opening is not a substitute for those requirements.
Manuals and downloads
DVLL60BP90(N,P)-4 installation manual, 43147-5-0825: electrical planning on page 2, fuel ratings on page 6, accessories and conversion kits on page 7, dimensions on page 11, clearances on page 12, framing on page 20, listed vent systems on page 24, required liner on page 36 and glass placement on page 37. Use the manual matching the appliance rating-plate revision.
