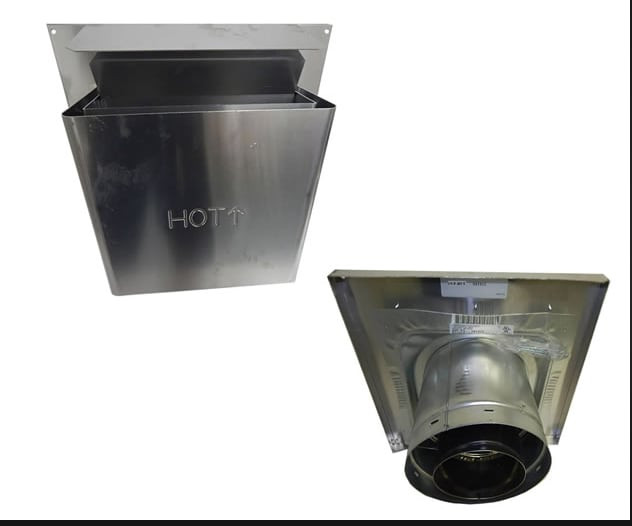

HHT Rear Vent Termination Kit includes adj Termination Cap, 1" firestop, 9" - 12" adj. termination pipe DVP-RVTK
SKU / Model: DVP-RVTK
Base price$349.00
Unlock an exclusive offer on this product.
Product overview
The DVP-RVTK is a 5" x 8" DVP rear vent (horizontal) termination kit. Per its installation instructions it contains a termination cap, a 1" (square) firestop, an adjustable pipe, four #8 x 1" and four #8 x 3" screws. It is a venting kit, not a fireplace.
The instructions state the kit can only be used with Vermont Castings Group direct vent fireplaces; the DVP6 can be used alone where the adjustable pipe is too long.
Specifications
| Manufacturer part number | DVP-RVTK |
|---|---|
| Contents (per kit instructions) | Termination cap; 1" square firestop; adjustable pipe; 4 #8 x 1" and 4 #8 x 3" screws |
| Vent system | DVP 5" x 8" |
Installation and safety notes
Overlap slip and vent sections at least 1-1/2"; horizontal runs need 1/4" rise per foot toward the termination; the embossed arrow on the cap must point up (VCG 20307393).
Frame 10" x 10" openings for ceilings and exterior walls and 10" x 12" for interior walls (VCG 20307393 p.8).
Exact-model manuals and downloads
5" x 8" DVP Direct Vent Termination Kit Installation Instructions and Addendum 2, Vermont Castings Group P/N 20307393 Rev 1 (03/15): page 1 lists DVP-RVTK contents; installation steps follow.
Frequently asked questions — DVP-RVTK
What comes in the DVP-RVTK?
A termination cap, a 1" square firestop, an adjustable pipe and 8 screws.
What if the adjustable pipe is too long?
The instructions allow the DVP6 to be used alone where the adjustable pipe is too long.
Does it include an elbow?
No. The DVP-HVTK is the kit with a 90° elbow.
Which fireplaces can use it?
Vermont Castings Group direct vent fireplaces per the instructions; confirm in your Majestic manual.
